116 Rockwell Automation Publication 1769-UM021I-EN-P - May 2018

Chapter 5 Complete Software Tasks Required at CompactLogix 5370 Controller Installation

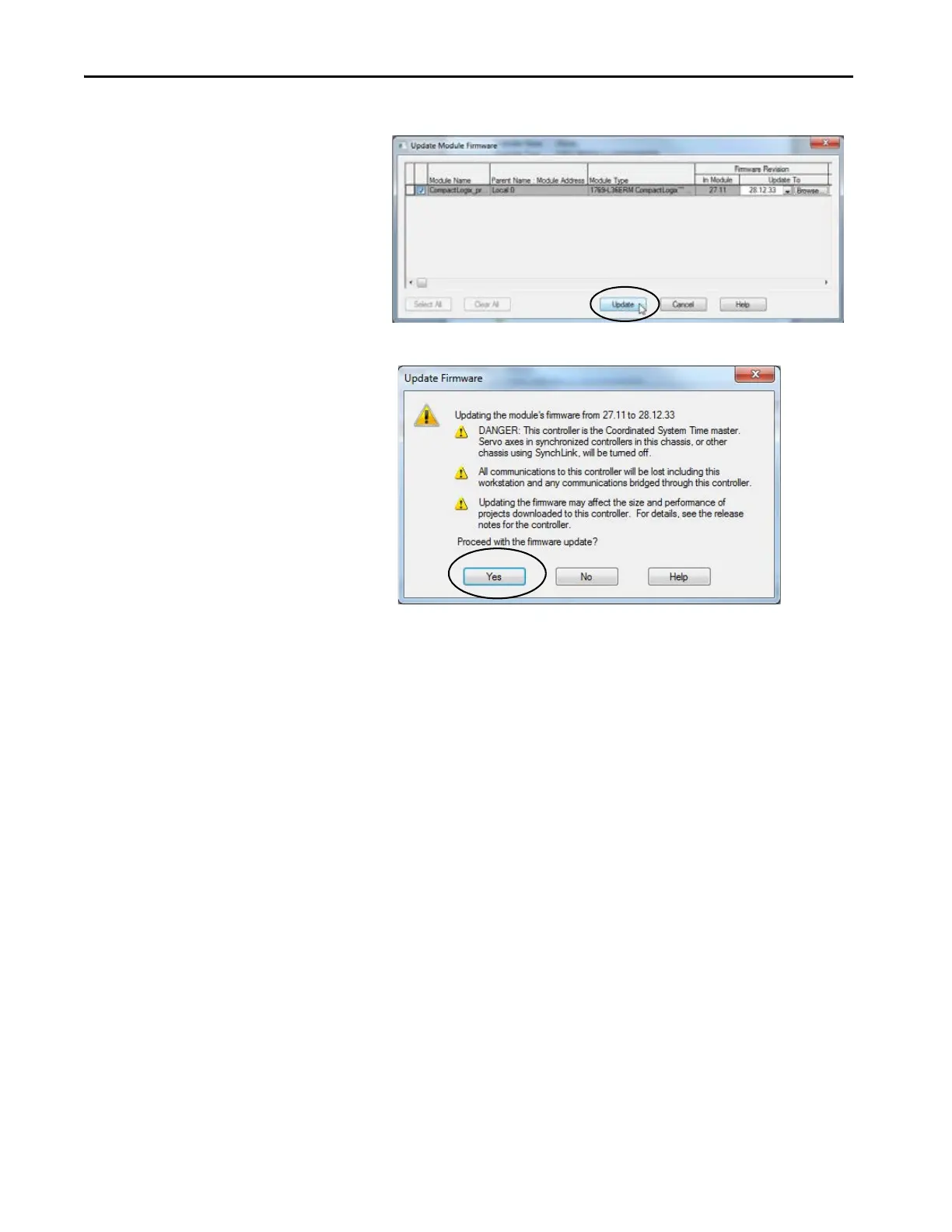

7. Click Update.

8. When the Update Firmware dialog box appears, click Yes.

Before the firmware update begins, you can be warned about your

controller missing its SD card. Take the required action, typically click

OK.

The firmware update begins.
