Publication 1794-UM066B-EN-E - March 2015
26 Rack Optimized Discrete I/O
Configure the I/O
Setting up a sample I/O Configuration project involves the following:
• Adding the local 1756-EN2TR module to the I/O configuration.
• Adding the 1794-AENTR adapter as a child of the
1756-EN2TR module.
• Adding the I/O modules as children of the adapter.
Add the Local EtherNet/IP Bridge to the I/O Configuration

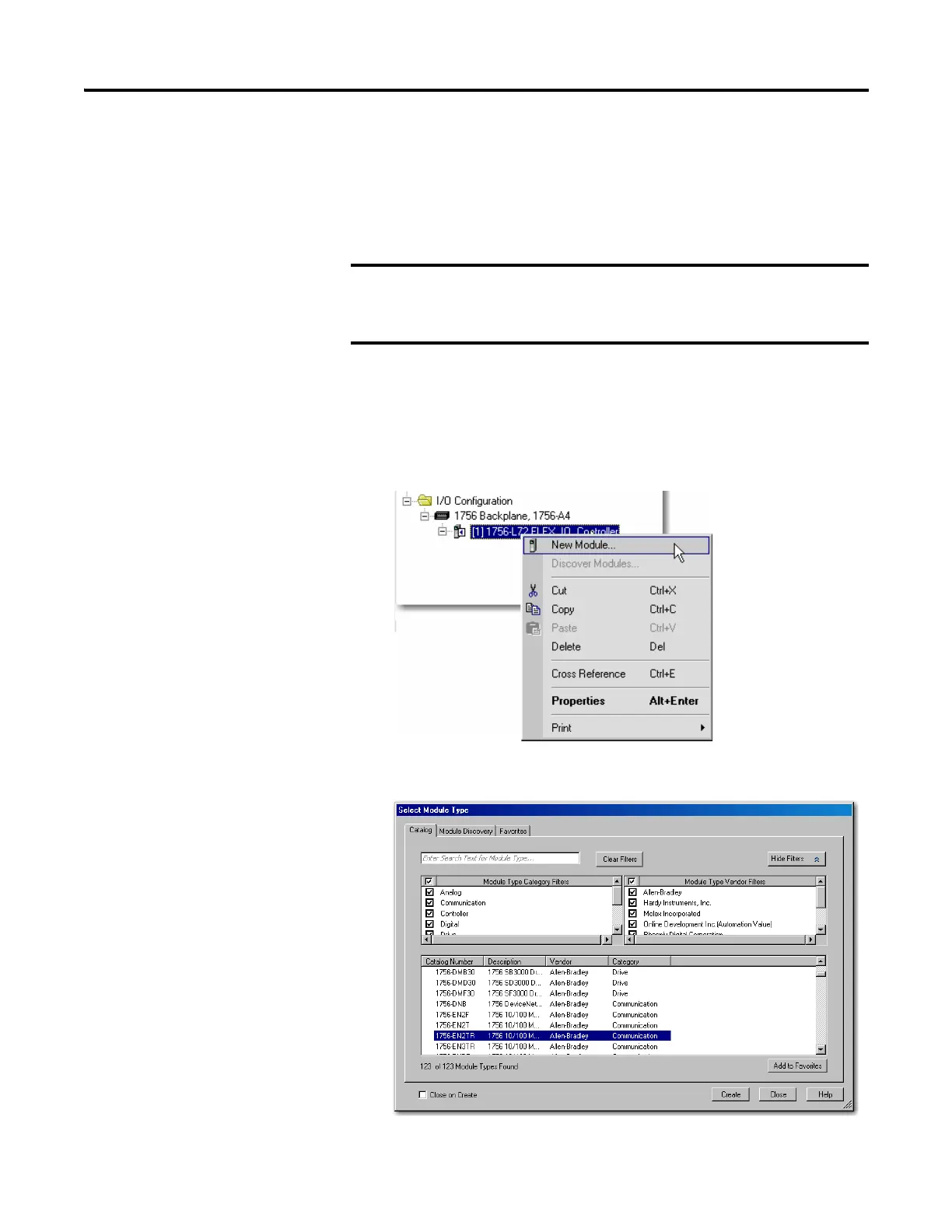

1. Right-click the I/O Configuration folder in the project window, and then
select New Module.
2. The Select Module Type window opens.
Click the Help button on the configuration dialogs shown in this
section if you need assistance in selecting and setting the
parameters.
