Publication 1794-UM066B-EN-E - March 2015
48 Analog I/O with Direct Connection
2. Select your Ethernet driver (for example, AB_ETH-1) and expand the tree
through the backplane of the local ControlLogix chassis.
3. Highlight the controller. and then click Download to download the
program to the Logix5572 controller.

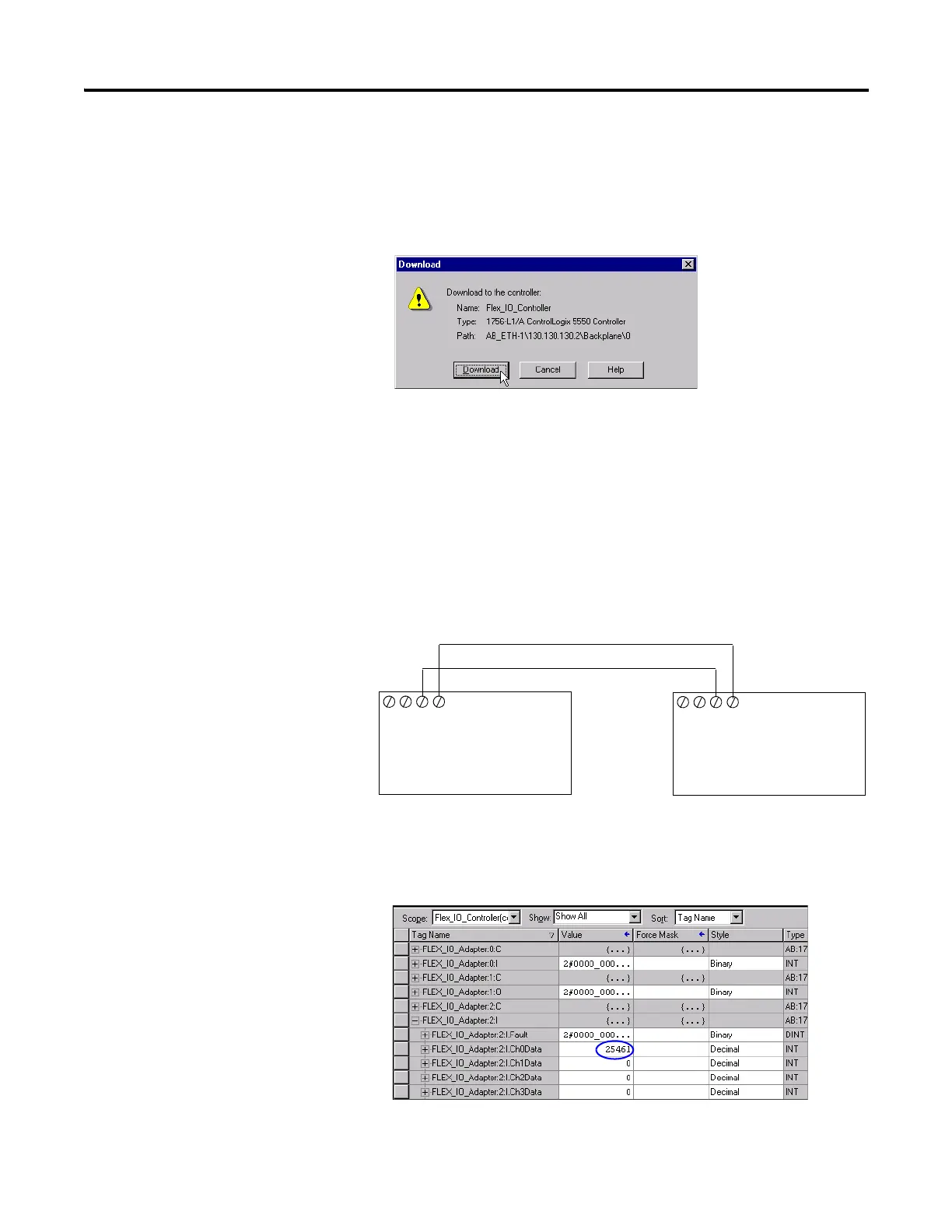

A Download dialog appears:
4. Click Download.
The program downloads to the controller.
5. Minimize the RSLogix 5000 software window.
Test the Example
Application
Use the following procedure to test the operation of the FLEX analog input and
output modules:
1. Connect analog output channel 0 on the 1794-OF4I/A module to analog
input channel 0 on the 1794-IF4I/A input module.
2. Restore the RSLogix 5000 software window and place the controller in
Run mode.
3. Double-click the Controller Tags folder, and then select the Monitor tab.
VR
23
VR
23
1794-IF4I 1794-OF4I
To Next Page
