Rack Optimized Discrete I/O 27

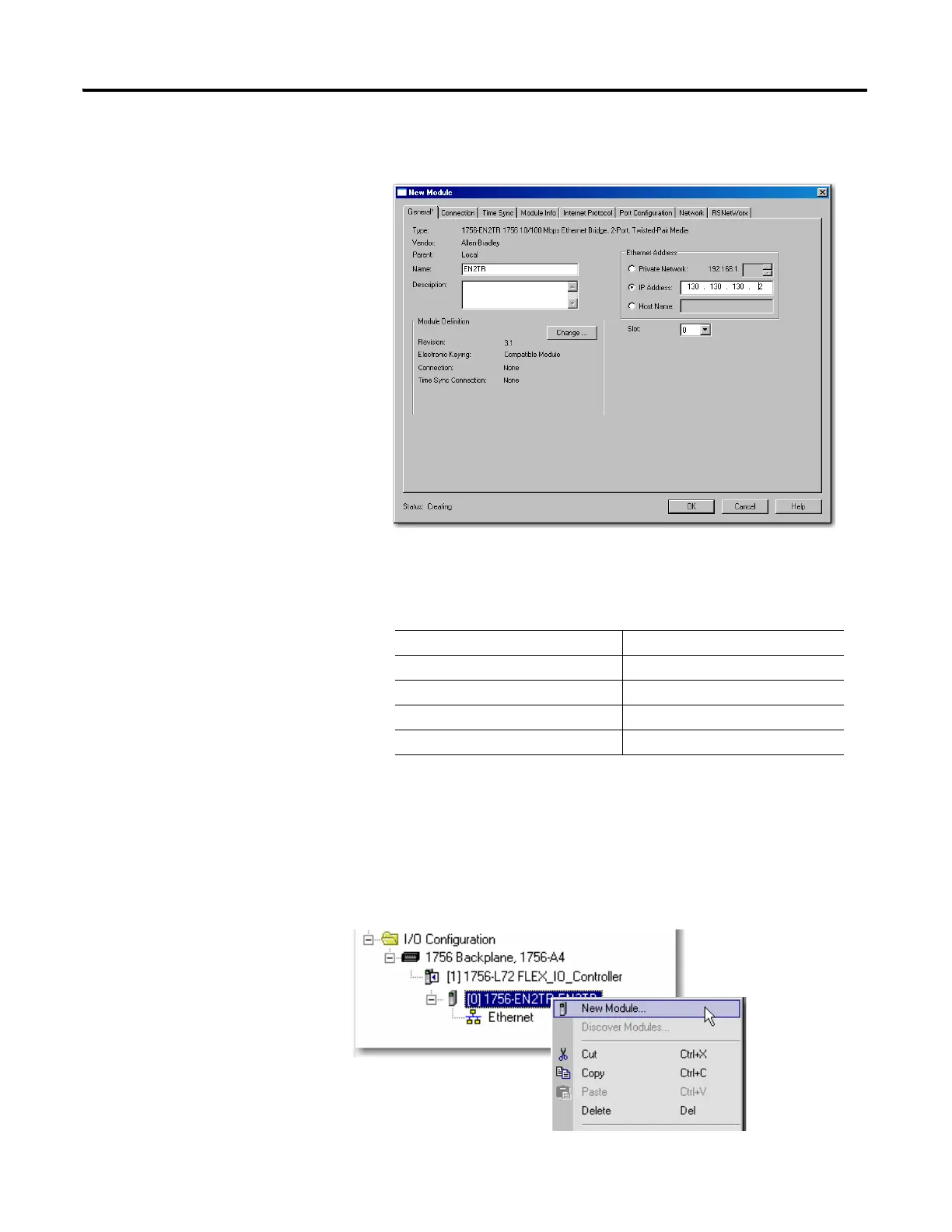

3. Select the 1756-EN2TR EtherNet/IP Bridge, and then click Create.
The New Module dialog opens.
4. Configure your 1756-EN2TR EtherNet/IP Bridge module through the
different tabs available.
Enter values for Name, IP Address, Slot, Electronic Keying, and Revision,
as follows:
5. Click OK to accept the configuration.
Add the FLEX I/O Adapter to the I/O Configuration
Next, you must add the 1794-AENTR adapter as a child of the local
1756-EN2TR module.
Name EN2TR
IP Address 130.130.130.2
Slot 0
Electronic Keying Compatible Module
Revision 3.1

Rockwell Automation Allen-Bradley 1794-AENTR Specifications

General

Communication Protocol	Ethernet/IP
Network Address	Configurable via software
Current Draw, Max	200 mA
Shock	30 g
Data Rate	10/100 Mbps
Number of Ports	1
Port Type	RJ45
Mounting	DIN Rail
Product Type	EtherNet/IP Adapter
Series	1794
Power Supply Voltage	24V DC
Operating Voltage	19.2V to 30V DC
Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 85°C
Relative Humidity	5% to 95% (non-condensing)
Certifications	CE, UL, cUL
