Analog I/O with Direct Connection 45

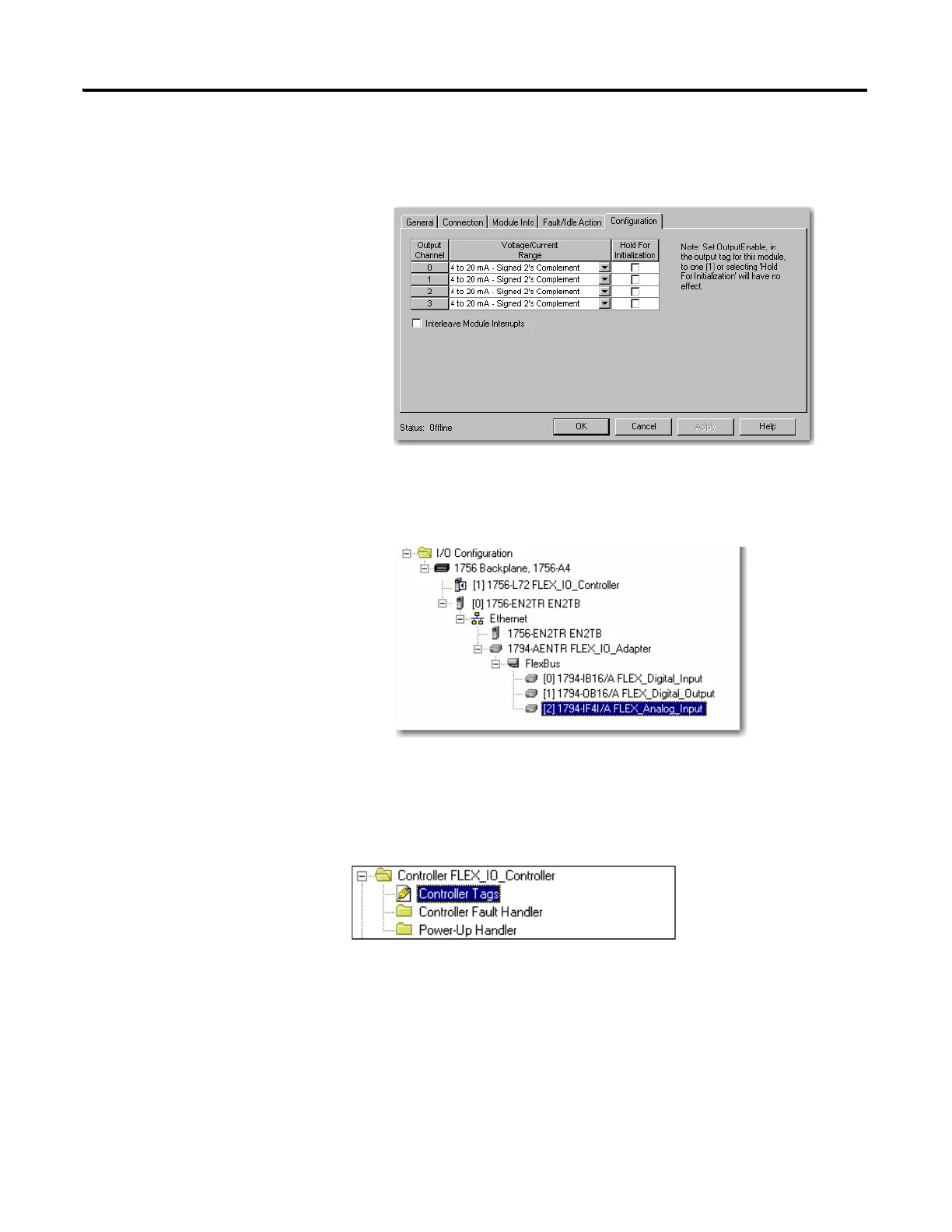

8. On the Configuration tab, use the pull-down list to set the
Voltage/Current Range for Channel 0 to 0 to 10V – Binary to match the
input configuration of the 1794-IF4I module.
Leave the other channels at their default values.
9. Click Apply to save the configuration, and then OK to close the dialog.
The analog input module appears in the I/O configuration indented
under the 1794-AENTR adapter.
Edit the Controller Tags
When you add modules to the I/O configuration the system creates Controller
Tags for those modules. For the example program you need to add one more
Controller Tag.
