Publication 1794-UM066B-EN-E - March 2015

34 Rack Optimized Discrete I/O

Create the Ladder Program

Next, create the example ladder program to test the I/O.

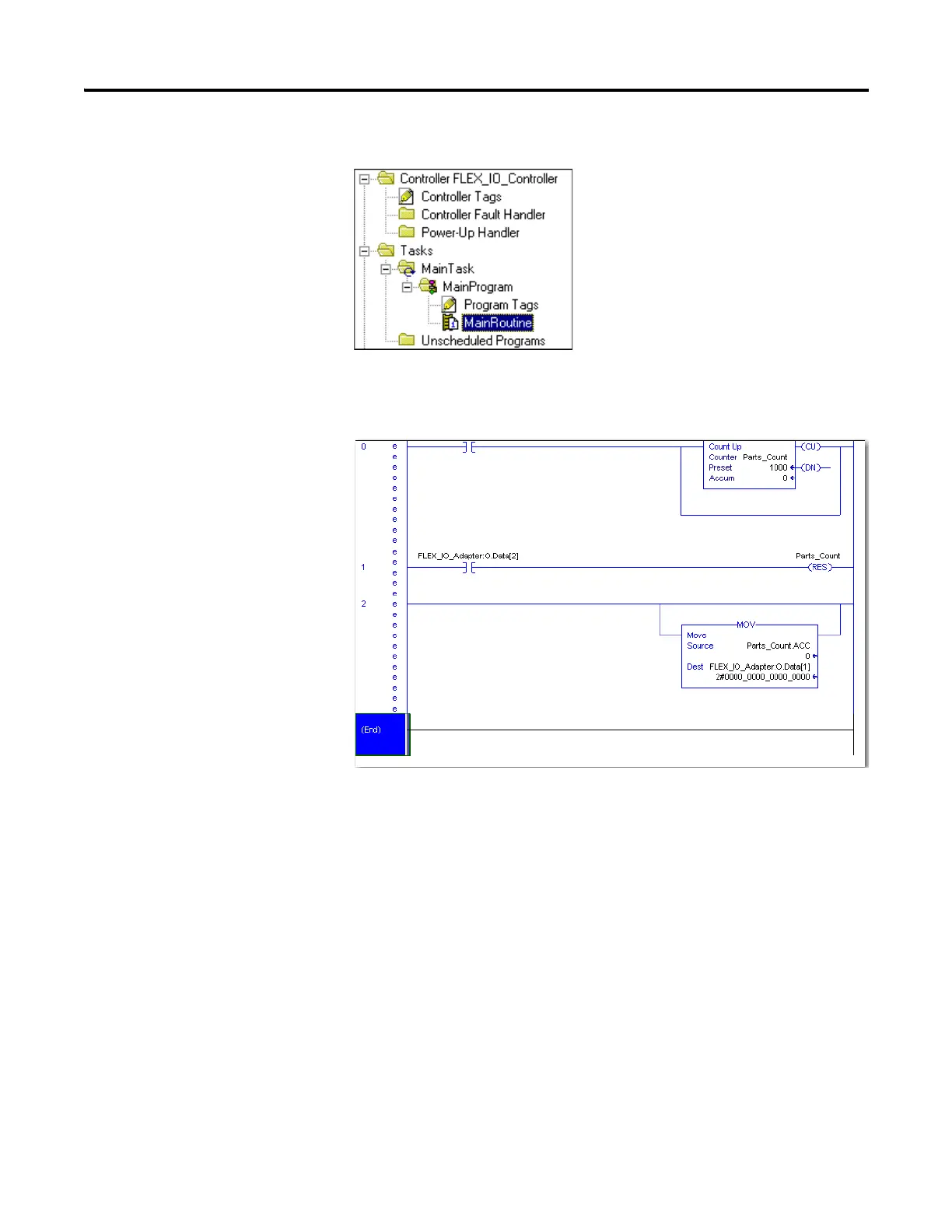

1. Double-click Main Routine under the Main Program folder, and then

enter the following ladder program, using the tag previously created.

2. Save the program.

Download the Program to the Controller

To download the program to the controller do the following:
