Publication 1794-UM066B-EN-E - March 2015
38 Analog I/O with Direct Connection

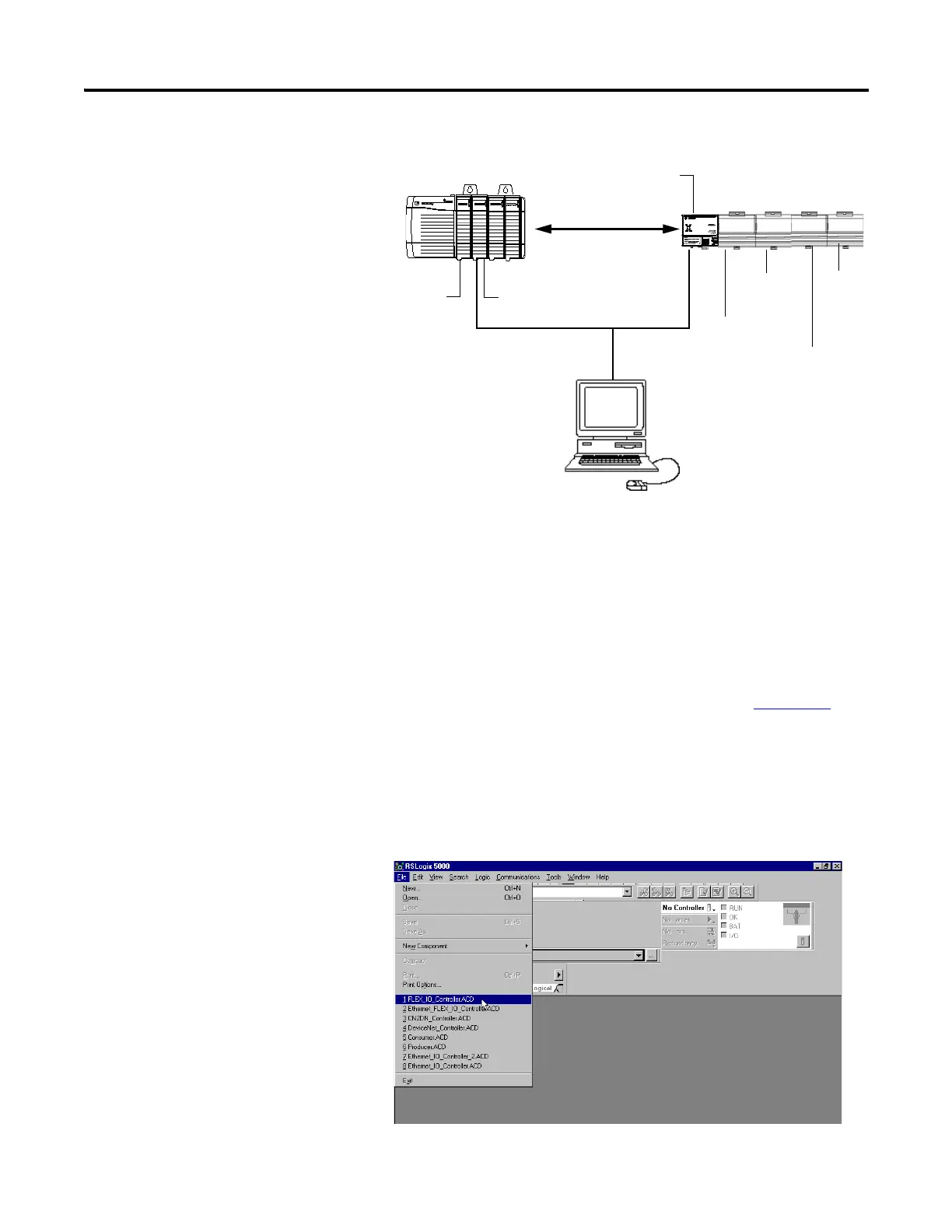

Note that in the example application, the Logix5572 controller and
1756-EN2TR module are in the slots shown above in the ControlLogix
chassis.
Verify that the IP addresses for the 1756-EN2TR module, 1794-AENTR
adapter, and programming terminal are correct.
Verify the position (slot) of the I/O modules on the DIN rail.
Verify that all wiring and cabling is properly connected.
Make sure you have your communication driver (for example, AB_ETH-1
or AB_ETHIP-1) configured in RSLinx as described in Appendix B
.
Create the Example
Application
Perform the following steps to create the example application:
1. Start the RSLogix 5000 Enterprise Series software.
The RSLogix 5000 main dialog opens.
Local
Chassis
FLEX I/O
Logix5572
Controller
1794-OB16
Digital Output
1794-IB16
Digital Input
1756-EN2TR
130.130.130.2
1794-AENTR
130.130.130.3
Data
Programming
terminal
130.130.130.1
SLOT 1 2
SLOT 1 2
1794-OF4I
Analog
Output
1794-IF4I
Analog Input
