Publication 1794-UM066B-EN-E - March 2015
Analog I/O with Direct Connection 41

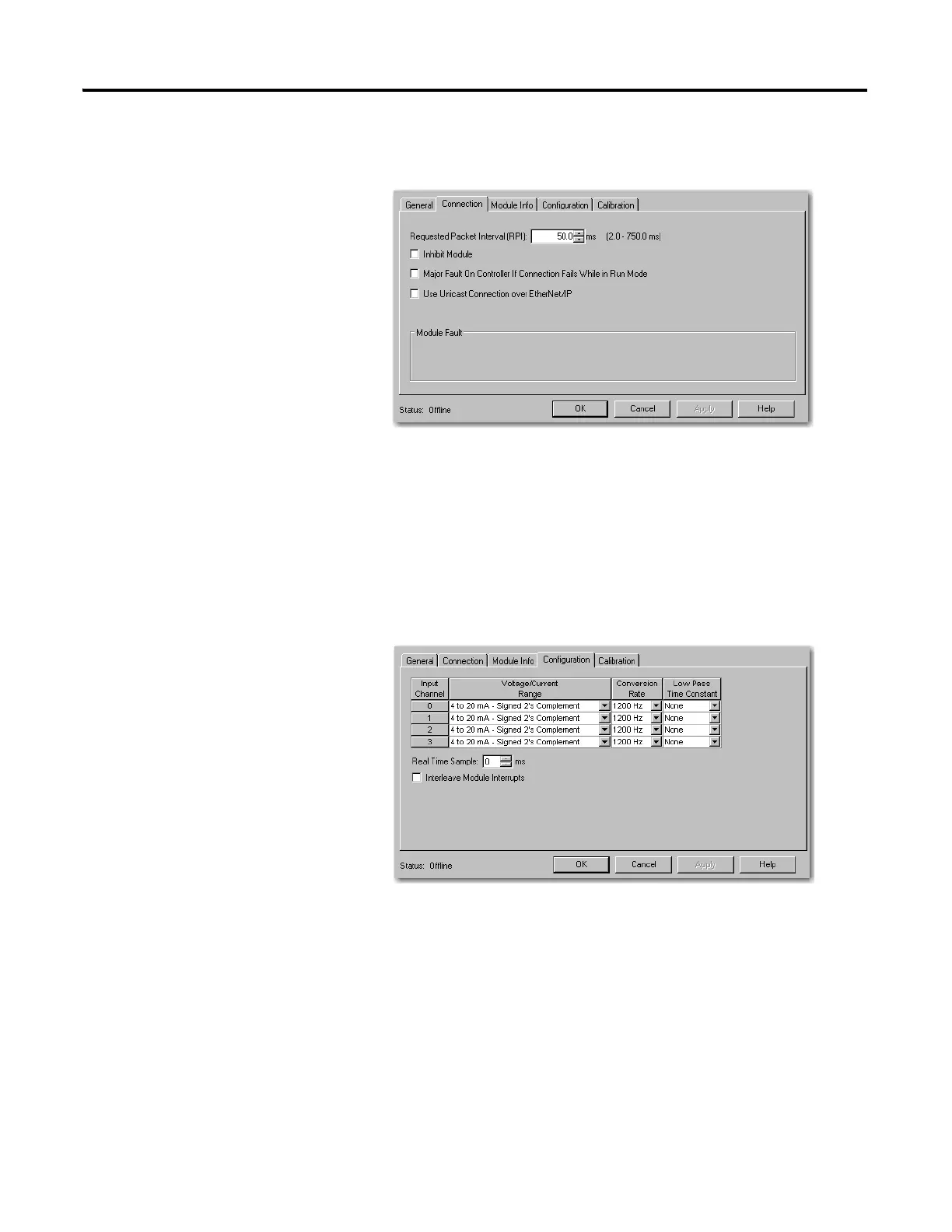

5. On the Connection tab, adjust the Requested Packet Interval (RPI) to
meet your system requirements.
For this example you can leave it at the default 50 ms rate.
This RPI is used for the direct connection to this analog module.
The two rack connected digital I/O modules continue to communicate at
the RPI of the rack connection.
6. Click Apply to save the configuration.
7. On the Configuration tab, use the pull-down list to set the
Voltage/Current Range for Channel 0 to 0 to 10V – Binary.
This range allows you to easily monitor the output with a voltmeter when
you test the application.
Leave the other channels at their default values.
