Analog I/O with Direct Connection 43

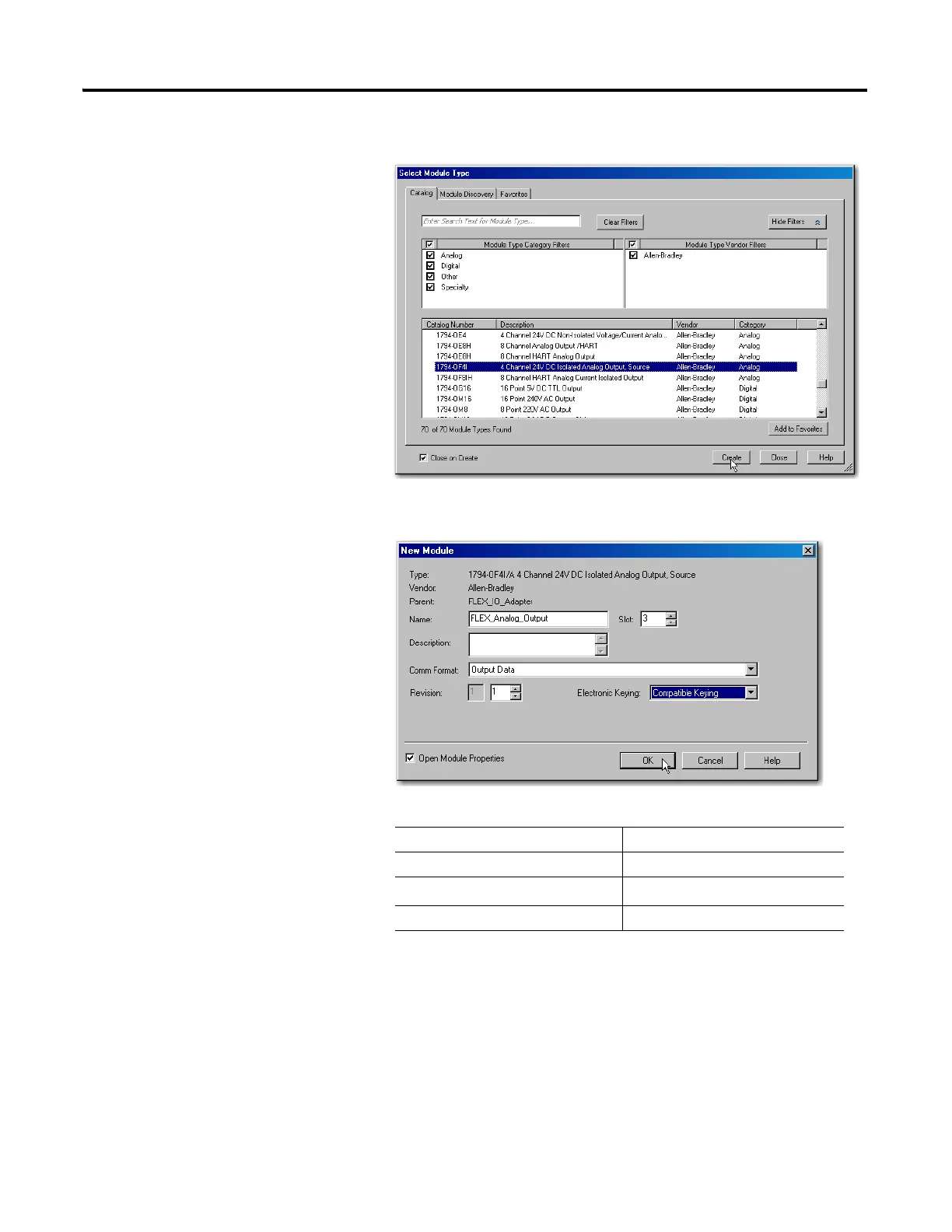

The Select Module Type window opens.
2. Select the 1794-OF4I module from the list, and then click Create.
The New Module dialog opens.
3. Enter the following parameters:
4. Click OK to save the configuration.
The Module Properties Report dialog opens.
Name FLEX_Analog_Output
Slot 3
Comm Format
Output Data
(1)
(1)
All analog Comm Formats use direct connection. The default here is Output Data.
Electronic Keying Compatible Module
