Chapter 2 Basic Component Removal Procedures

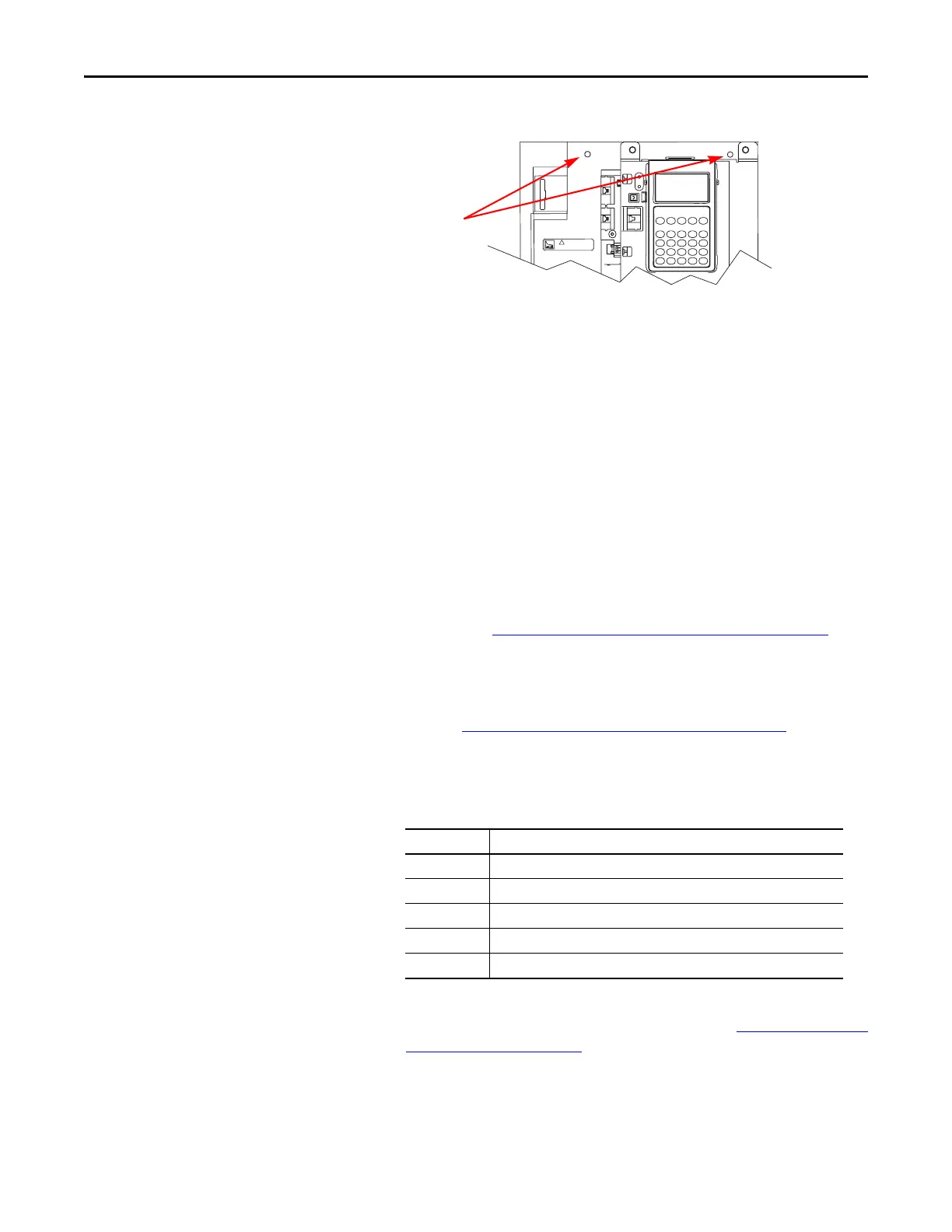

6. Remove the two nuts at the top of the Main Control Panel.
7. Remove Main Control Panel; support.
8. Disconnect wire harnesses from TB11 to the Switch Mode Power
Supply Board (J4 connector) and at TB1 and TB2 on the Power
Interface Board.
9. Label and disconnect all customer wiring from TB11.
10. Carefully set the Main Control Panel aside.
Install Components
When instructed for the component you are replacing, reinstall the Main
Control Panel Assembly components in the reverse order of removal.
Remove Stacking Panel
Refer to the figures in Component Diagrams and Torque Specs on page 13 for
these instructions.
Remove Components
1. Perform Remove Main Control Panel Assembly on page 21.
2. Remove remaining wiring harnesses from the Power Interface Board. Do
not disconnect the wiring between the Power Interface Board and the
Switch Mode Power Supply Board.
3. Disconnect the Main Control Panel Assembly Thermal Sensor wire
from the Monitor Wire. (See diagram at the start of Main Control Panel
Thermal Sensor on page 45.)
4. Remove the two screws at the bottom of the Stacking Panel for the
Power Interface and the Switch Mode Power Supply Boards. Remove the
panel by sliding it up and out.
CAUTION
HOT SURFACES
!
Connector Connected Components
J14, J15, J16 U, V, W Phase CT
J24 +Bus IN of Power Interface Board to J1 of Precharge Board
J7 Main Control Panel Thermal Sensor
J18 U, V, W negative gates
J23 U, V, W positive gates
