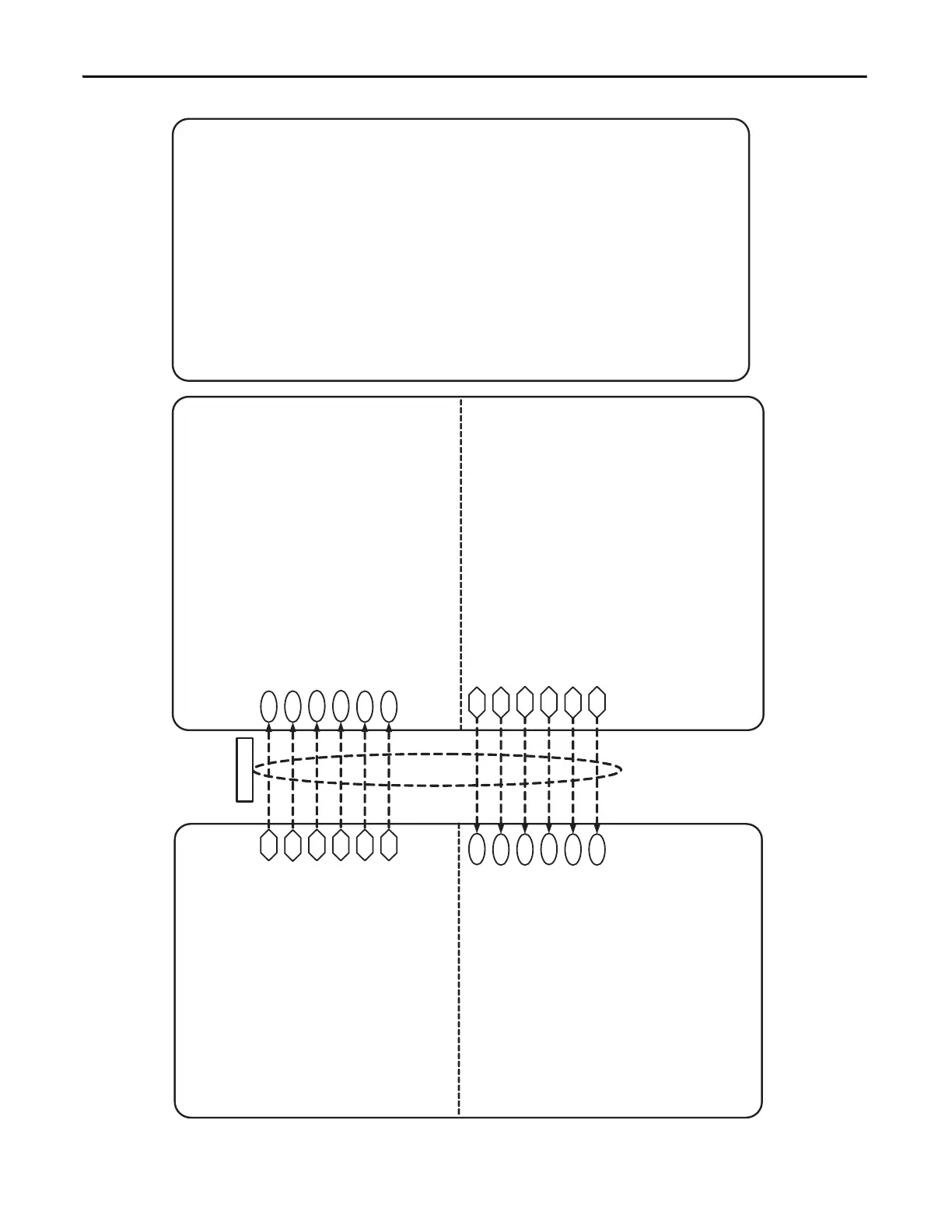

Appendix C Control Block Diagrams
DL_conn_spd_control.eps
PowerFlex 700S Phase
2
DriveLogix-Speed Control
DriveLogixDrive Control
602 603
604 605
606
607
FromDriveLogix00 – Logix Tag “LogicCommand” FromDriveLogix01 – Logix Tag “SpeedRef1”
FromDriveLogix02 – Logix Tag “TorqueRef1”
FromDriveLogix03 – Logix Tag “SpdTorqModeSelect”
FromDriveLogix04 – Logix Tag “TorqueStep”
FromDriveLogix05 – Logix Tag “SpdRegDroop”
151
10
111
110
116
86
Logic Command
Spd Reg Droop
Torque Step
Speed/TorqueMode
Speed Ref 1
Torque Ref 1
155
71
303 308 555 824
626 627
628 629
630 631
To DriveLogix00 – Logix Tag “LogicStatus”
To DriveLogix01 – Logix Tag “FilteredSpdFdbk” To DriveLogix02 – Logix Tag “MotorTorqueRef” To DriveLogix03 – Logix Tag “Output Current”
To DriveLogix04 – Logix Tag “MCStatus”
To DriveLogix05 – Logix Tag “LocalIOStatus”
Logic Status
Filtered SpdFdbk
Motor Torque Ref
Output Current
MC Status
Local I/O Status
600
Lgx Comm Format = 16 “Speed Ctrl”
Links
Undefined Available Connections
From DriveLogix UserDefinedRealData [0]
From DriveLogix UserDefinedRealData [1]
From DriveLogix UserDefinedRealData [2]
From DriveLogix UserDefinedRealData [3]
From DriveLogix UserDefinedRealData [4]
From DriveLogix UserDefinedRealData [5]
From DriveLogix UserDefinedRealData [6]
From DriveLogix UserDefinedRealData [7]
From DriveLogix UserDefinedRealData [8]
From DriveLogix UserDefinedRealData [9]
From DriveLogix UserDefinedIntegerData [0]
From DriveLogix UserDefinedIntegerDa
ta [1]
From DriveLogix UserDefinedIntegerData [2]
From DriveLogix UserDefinedIntegerData [3]
From DriveLogix UserDefinedIntegerData [4]
To DriveLogix UserDefinedRealData [0] To DriveLogix UserDefinedRealData [1] To DriveLogix UserDefinedRealData [2] To DriveLogix UserDefinedRealData [3] To DriveLogix UserDefinedRealData [4] To DriveLogix UserDefinedRealData [5] To DriveLogix UserDefinedRealData [6] To DriveLogix UserDefinedRealData [7] To DriveLogix UserDefinedRealD
ata [8]
To DriveLogix UserDefinedIntegerData [0]
To DriveLogix UserDefinedIntegerData [1]
To DriveLogix UserDefinedIntegerData [2]
To DriveLogix UserDefinedIntegerData [3]
To DriveLogix UserDefinedIntegerData [4]
To DriveLogix UserDefinedIntegerData [5]
To DriveLogix
From DriveLogix
