Rockwell Automation Allen-Bradley PowerFlex 755T

Rockwell Automation Publication 750-IN118A-EN-P - May 2021 67
Chapter 3 Mechanical and Electrical Installation

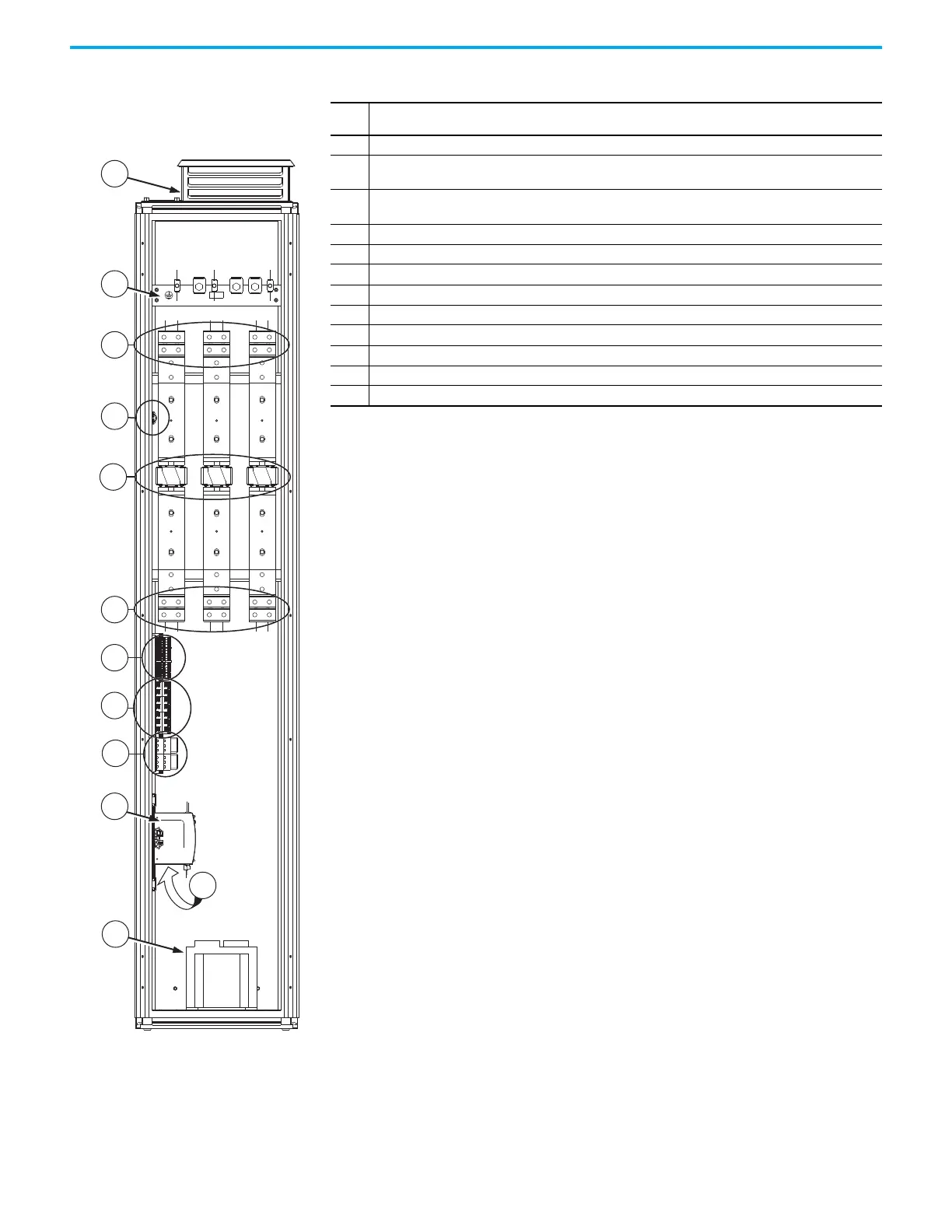

Figure 59 - Frame 8 Configured Input Bay with
Fuses, Top Entry: Internal Components and
Installation Connection Locations
Item Description
1 Roof exhaust vent with internal air filter
2
PE ground bar with ground clamps included. Terminating point to chassis ground for incoming AC line and
shield. Ground connections must be made during installation.
3
Terminal lugs for customer AC line input power. These power connections must be made during
installation.
4Thermostat
5 AC line input protection fuses
6 Terminal lugs to supply power to the drive input bay
7 Terminal blocks
8Fuse blocks
9 Control relays
10 Control power supply (24V DC)
11 Uninterruptible power supply, and battery (behind control power supply)
12 Control transformer
1
2
3
5
6
7
8
9
10
12
4
11
