Rockwell Automation Publication 750-IN118A-EN-P - May 2021 43
Chapter 2 Prepare for Installation
Structural Steel System
Bays can be mounted on top of structural steel that is anchored to concrete and
meets the following specifications and minimum dimensions.
Material: ASTM A-36 / ASME SA36, or equivalent

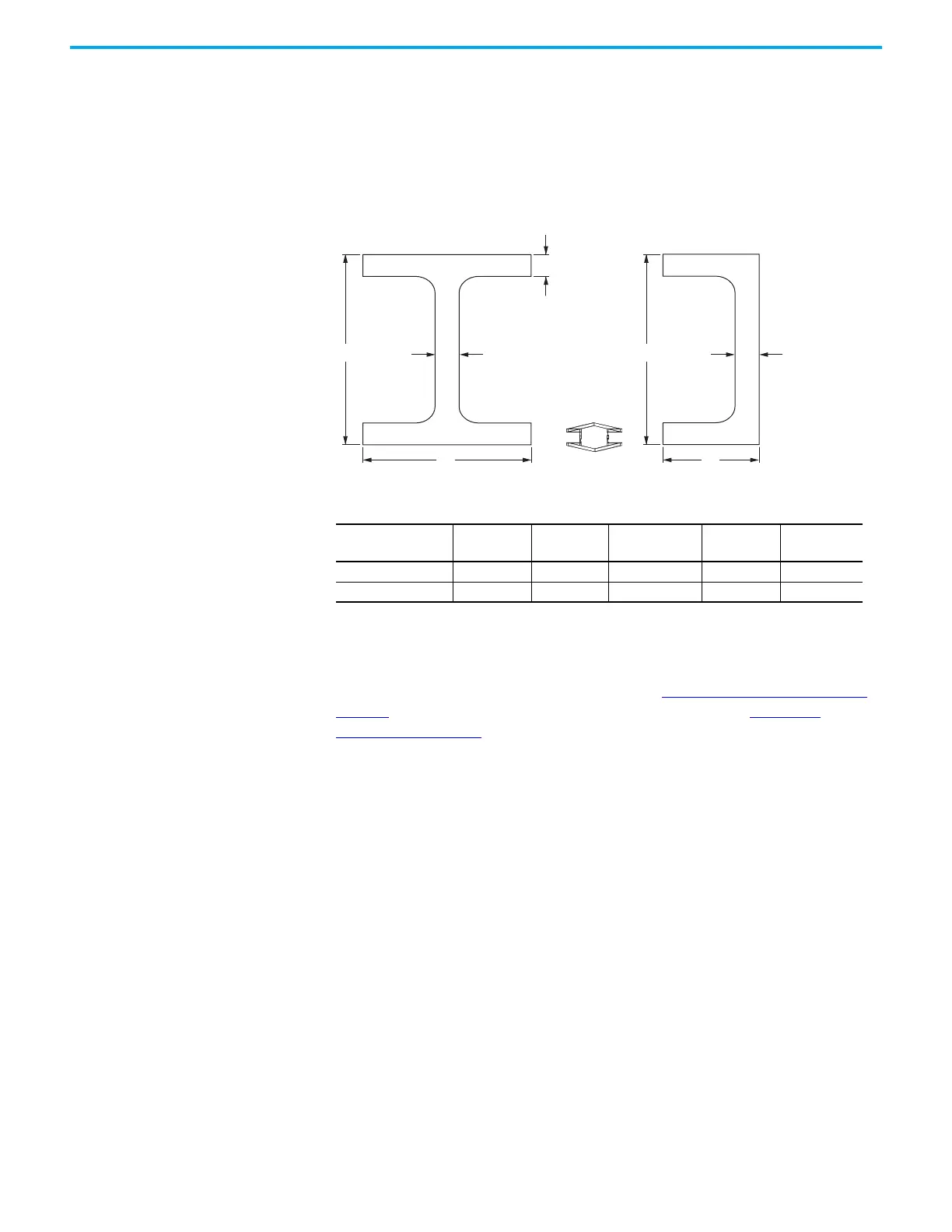

Figure 41 - Structural Steel Beam Cross-sections
To find the total height of a bay and its mounting hardware, add the mounting
hardware height (d) to the bay height stated in Approximate Dimensions on
page 29. Consider the height of the mounting hardware for Overhead
Clearance on page 37. To allow for service cart access, the mounting hardware
must be no more than 254 mm(10 in.) tall.
Table 3 - Steel Beam Minimum Dimensions
Style
Depth (d)
mm (in.)
Width (b)
mm (in.)
Thickness (tw)
mm (in.)
Flange (tf)
mm (in.)
Length
(1)
(l)
mm (in.)
(1) The minimum length of beam under each corner of the bay. Using the minimum length of beam provides a block shaped
base under each corner. Alternatively, you can use two beams running parallel, each spanning from one corner to
another.
Wide Flange Beam 100 (4.0) 100 (4.0) 7.6 (0.3) 10.2 (0.4) 100 (4.0)
Channel Beam 100 (4.0) 43 (1.7) 7.6 (0.3) 7.6 (0.3) 100 (4.0)
b
d
b
tw
Wide Flange Beam Channel Beam
