Front and Rear Panels
Front Panel

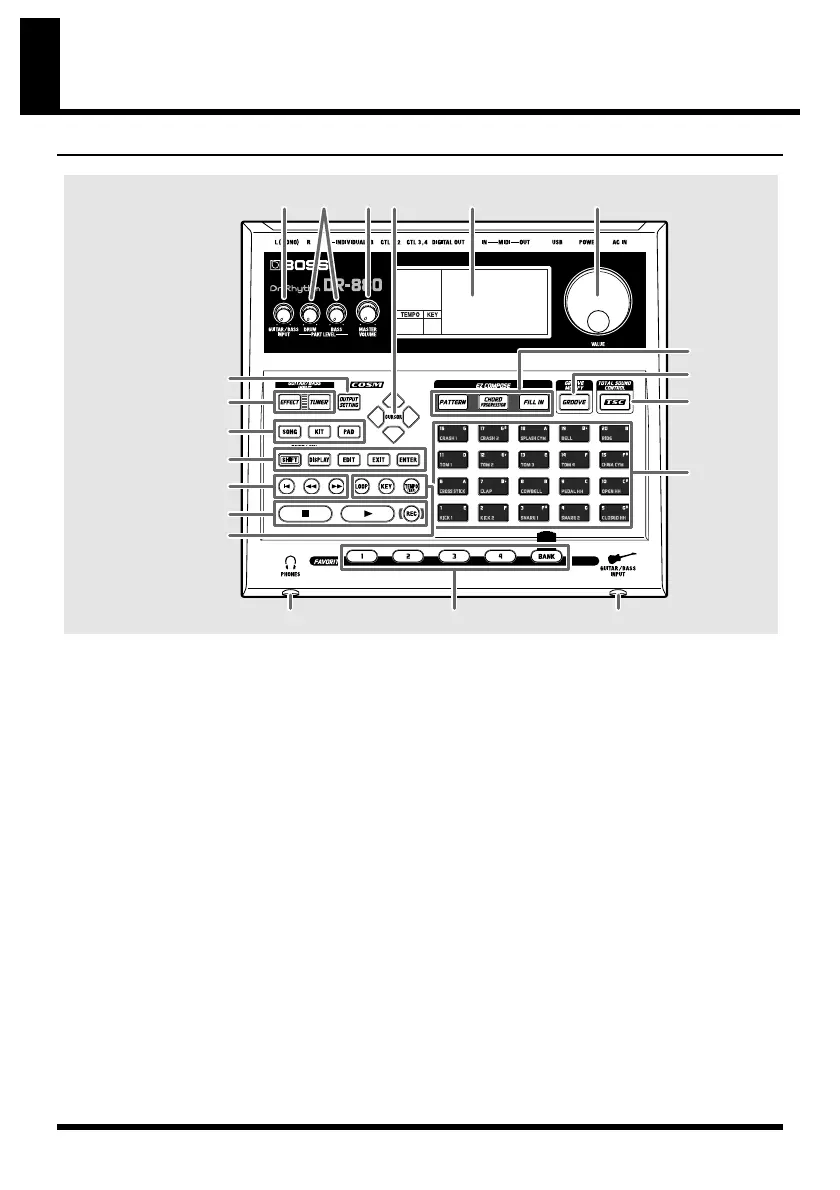

fig.001-010
1. GUITAR/BASS INPUT Knob
Adjusts the level of the guitar or bass
connected to the GUITAR/BASS INPUT jack.
2. PART LEVEL
DRUM Knob
Adjusts the volume of the drum part.
BASS Knob
Adjusts the volume of the bass part.
3. MASTER VOLUME Knob
Adjusts the volume of the entire DR-880.
4. Display
Shows the current mode and settings.
5. VALUE Dial
Use this to edit the value of a setting.
6. GUITAR/BASS INPUT
You will use these buttons for a guitar or bass
you’ve connected to the GUITAR/BASS
INPUT jack.
EFFECT Button
Use this button to change the guitar/bass
effect, turn it on/off, or edit the settings.
TUNER Button
Use this button to tune your guitar/bass.
7. OUTPUT SETTING Button
Use this button to adjust the output signal.
8. SONG/PATTERN Button
Switches between Song mode and Pattern
mode.
9. KIT Button
Use this button to switch kits.
11 2 3 11 4 5
6
7
8,9,
10
12 , 13 , 14 , 15 , 16
17 , 18 , 19
20 , 21 , 22
23
, 24 , 25
26
27
28
29
30 3231
