Roland RD-700NX User Manual

15
Getting Ready

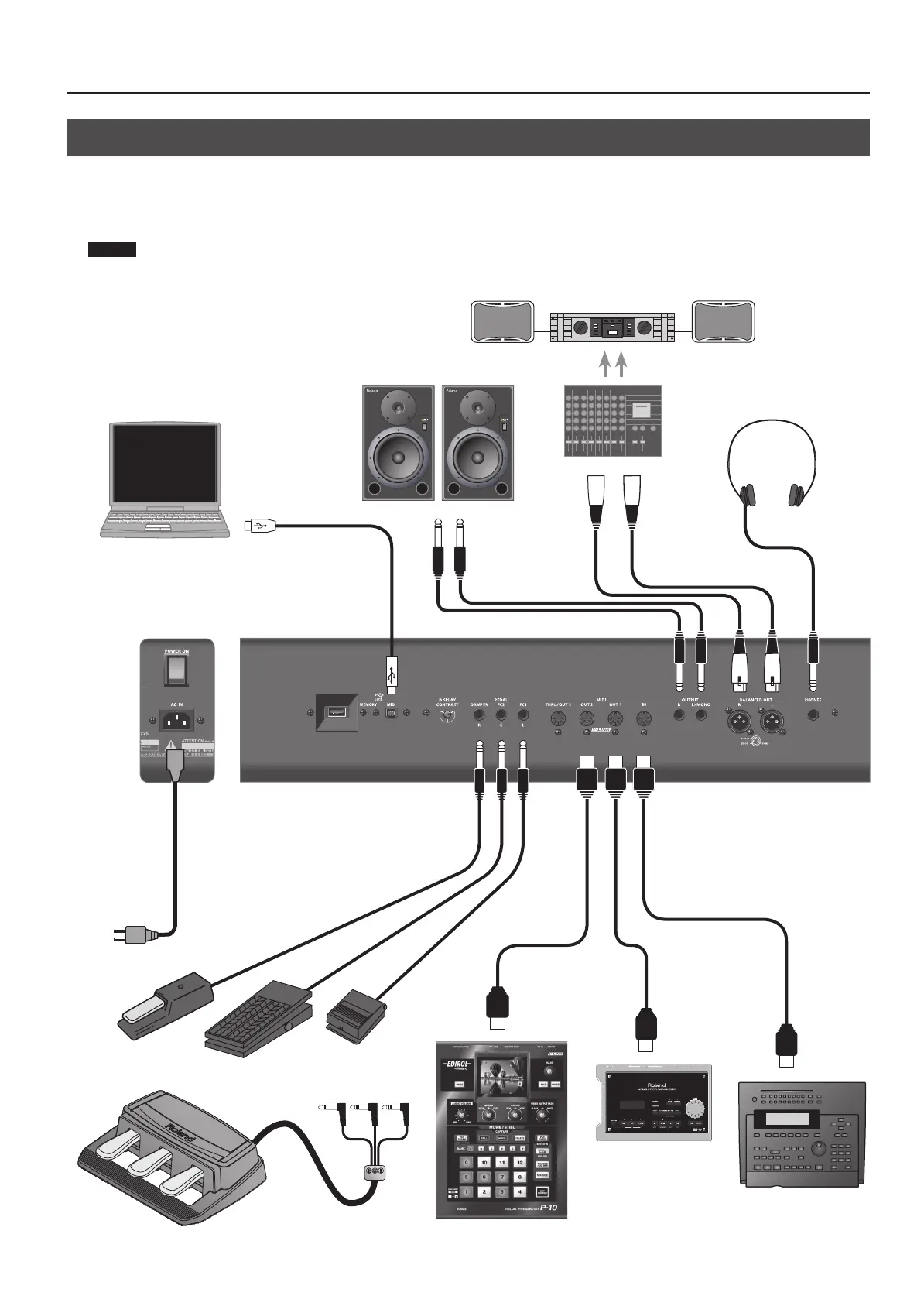

Connecting the External Equipment to RD-700NX
The RD-700NX is not equipped with an ampli er or speakers. In order to produce sound, you need to hook up audio equipment such as a monitor
speaker or a stereo set, or use headphones.
* Audio cables, USB cables, MIDI cables, headphones, expression pedals, and USB memory are not included. Consult your Roland dealer if you need
to purchase accessories such as these.
NOTE
To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn o the power on all devices before
making any connections.
Stereo
headphones
Mixer etc.
Computer
to Power outlet
Damper pedal
(DP Series)
Expression pedal (EV-5, EV-7)
or Pedal switch (DP Series)
Monitor speakers
(powered)
Power ampli er
MIDI IN
V-LINK-compatible
video equipment.
MIDI sound module etc.
MIDI sequencer etc.
MIDI IN
MIDI OUT
RD-700NX Rear Panel
Pedal unit
(RPU-3)
921

Roland RD-700NX Specifications

Power

power consumption	12 W

Audio and Sound

maximum polyphony	128 voices
sound generator	SuperNATURAL Piano, SuperNATURAL (E.Piano), Virtual Tone Wheel Organ, PCM Sound Generator, GM2 (for SMF Playback)
effects	Multi-Effects (2 x 4 systems, 84 types), Reverb (6 types), Chorus (3 types), 3-band Compressor, 4-band Digital Equalizer

Connectivity

output jacks	L/MONO, R Jacks (1/4-inch phone type), BALANCED OUT (L, R) Jacks (XLR type)
pedal jacks	DAMPER Pedal Jack, Control Pedal Jacks (FC1, FC2)
midi connectors	IN, OUT1, OUT2, THRU/OUT3

Weight and Dimensions

width	1, 444 mm (56-7/8 inches)
depth	375 mm (14-13/16 inches)
height	148 mm (5-7/8 inches)
weight	25.0 kg (55 lbs 2 oz)
