Panel Descriptions

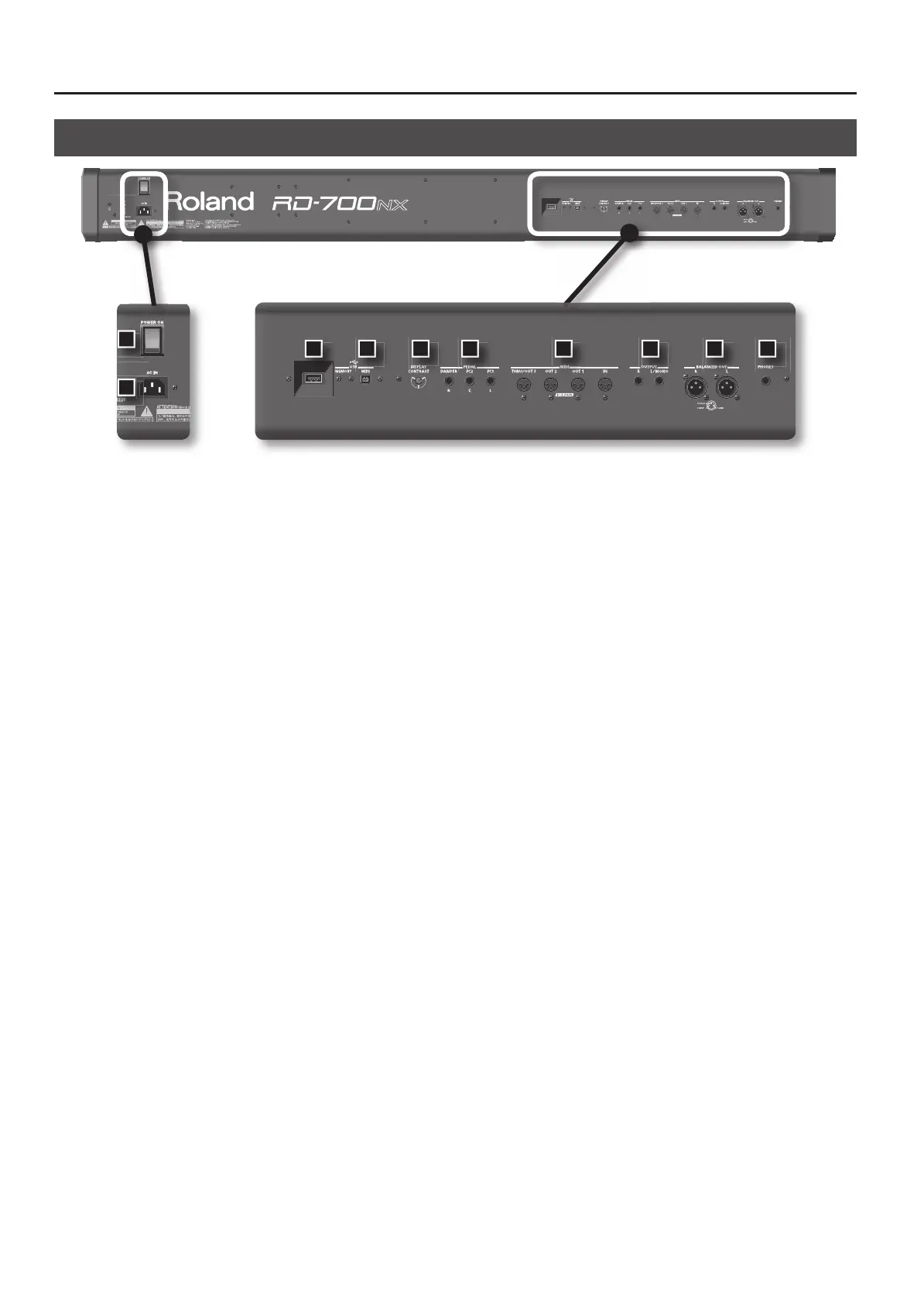

Rear Panel
12
13
14 15 16 17 18 19 20 21
12. [POWER ON] Switch
This switch turns the power on/o (p. 17).
13. AC IN Connector
Connect the included power cord to this connector (p. 14).
14. USB MEMORY Connector
Connect separately sold USB memory or a CD-ROM drive here (p. 18).
Use USB memory or a CD-ROM drive made by Roland.
15. USB MIDI Connector
You can connect this to your computer so that it can exchange
performance data with the RD-700NX (p. 89).
16. [DISPLAY CONTRAST] Knob
Adjusts the display’s contrast (p. 18).
17. PEDAL Jacks (DAMPER, FC1, FC2)
Connecting the pedal switch provided with the RD-700NX to the
DAMPER jack allows you to use the switch as a damper pedal.
With a pedal connected to the FC1 or FC2 jack, you can then assign a
variety of functions to the pedal (p. 72).
18. MIDI Connectors (IN, OUT 1, OUT 2, THRU/OUT 3)
Used for connecting external MIDI devices and for transmission of MIDI
messages (p. 86).
The THRU/OUT 3 connector’s function can be switched to operate
either as MIDI THRU or as MIDI OUT (p. 69).
19. OUTPUT L (MONO)/R Jacks
Provide output of the audio signals. These are connected to an amp or
other device. For monaural output use the L/MONO jack (p. 15).
20. BALANCED OUT L/R Jacks
Connectors for balanced output of the audio signals. Connect to
mixers and other such gear (p. 15).
21. PHONES Jack
A set of headphones can be connected to this jack (p. 15).
Even when headphones are connected, sound will still be output from
the OUTPUT jacks and BALANCED OUT jacks.

Roland RD-700NX Specifications

Power

power consumption	12 W

Audio and Sound

maximum polyphony	128 voices
sound generator	SuperNATURAL Piano, SuperNATURAL (E.Piano), Virtual Tone Wheel Organ, PCM Sound Generator, GM2 (for SMF Playback)
effects	Multi-Effects (2 x 4 systems, 84 types), Reverb (6 types), Chorus (3 types), 3-band Compressor, 4-band Digital Equalizer

Connectivity

output jacks	L/MONO, R Jacks (1/4-inch phone type), BALANCED OUT (L, R) Jacks (XLR type)
pedal jacks	DAMPER Pedal Jack, Control Pedal Jacks (FC1, FC2)
midi connectors	IN, OUT1, OUT2, THRU/OUT3

Weight and Dimensions

width	1, 444 mm (56-7/8 inches)
depth	375 mm (14-13/16 inches)
height	148 mm (5-7/8 inches)
weight	25.0 kg (55 lbs 2 oz)
