Roland RD-700NX User Manual

11

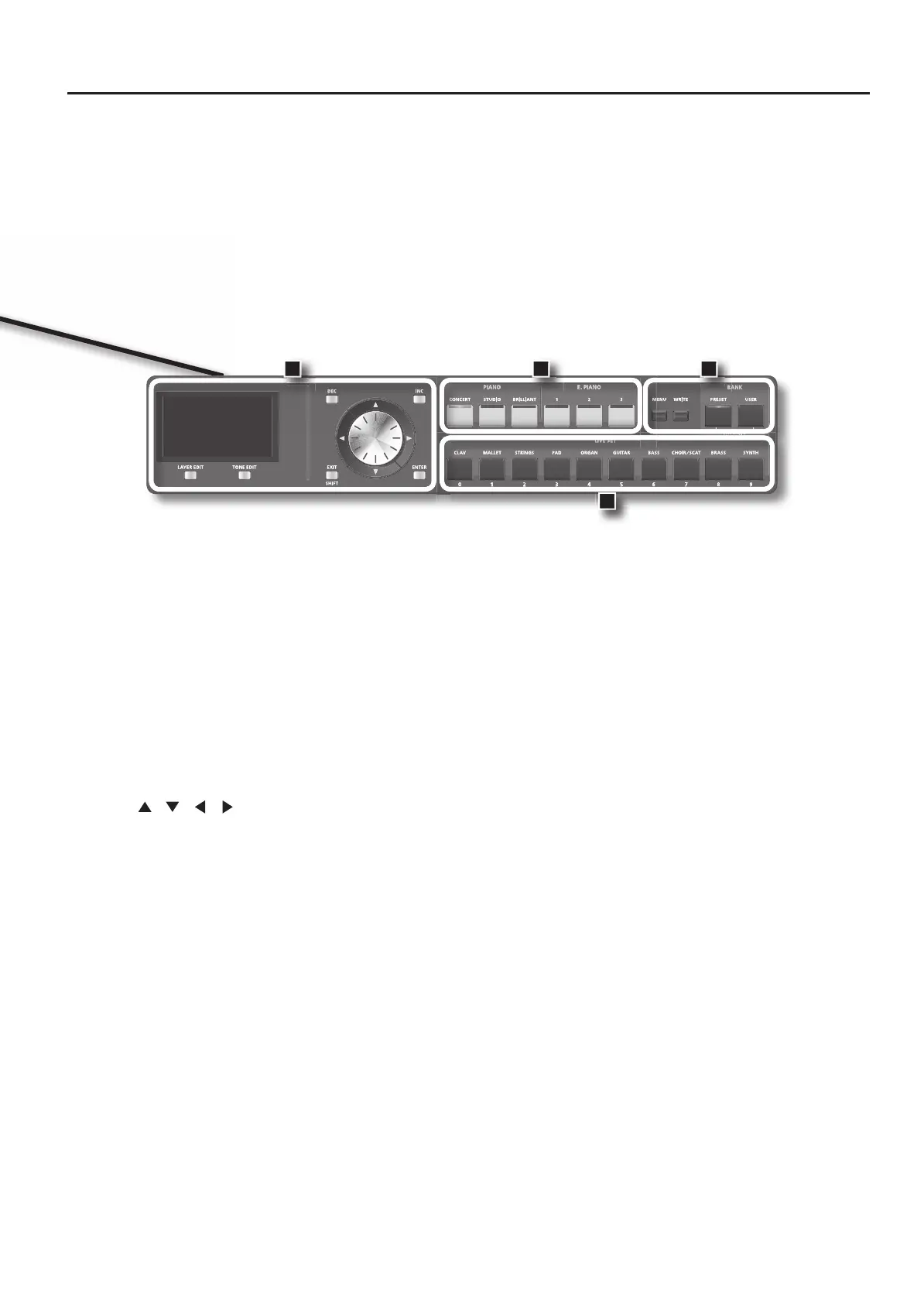

Panel Descriptions
6. DISPLAY
This shows the Live Set names and the values of various settings, etc.
[LAYER EDIT] Button
This allows you to change the Layer settings (p. 56).
You can also use this to assign functions in some screens.
[TONE EDIT] Button
This allows you to change the tone settings (p. 54).
You can also use this to assign functions in some screens.
[DEC] Button, [INC] Button
These are used to modify values.
If you keep on holding down one button while pressing the other, the
value change accelerates.
VALUE Dial
This is used to modify values.
Cursor [
] [ ] [ ] [ ] Buttons
Press these to switch pages and to move the cursor.
[EXIT/SHIFT] Button
Pressed to return to a previous screen or to cancel a procedure that is
in progress.
Additionally, you can easily call up Edit screens for related parameters
for the following functions by holding down this button while pressing
buttons, turning knobs, or operating other controllers.
[ENTER] Button
This is used to  nalize a value or execute an operation.
7. ONE TOUCH
PIANO [CONCERT] Button, [STUDIO] Button, [BRILLIANT] Button
Selects the optimum settings for piano performances (p. 46).
E. PIANO [1] Button, [2] Button, [3] Button
Selects the optimum settings for E. Piano performances (p. 50).
8. FUNCTION
[MENU] Button
Press this button when you wish to adjust various settings (p. 65).
[WRITE] Button
Stores the current settings to “Live Set” (p. 45).
BANK [PRESET] button
Selects a Live Set from the Preset bank.
BANK [USER] button
Selects a Live Set that was saved in the User bank. Live Sets you edit
can be stored in the User bank (p. 45).
9. LIVE SET buttons
These buttons select Live Set categories (p. 27).
When you’re in an edit screen, you can use these buttons to enter
numerical values.
10. [S1] Button, [S2] Button
You can assign various functions to these buttons While performing,
you can press these buttons to use the assigned functions.
11. Pitch Bend/Modulation Lever
This allows you to control pitch bend or apply vibrato (p. 34).
6 7 8
9

Roland RD-700NX Specifications

Power

power consumption	12 W

Audio and Sound

maximum polyphony	128 voices
sound generator	SuperNATURAL Piano, SuperNATURAL (E.Piano), Virtual Tone Wheel Organ, PCM Sound Generator, GM2 (for SMF Playback)
effects	Multi-Effects (2 x 4 systems, 84 types), Reverb (6 types), Chorus (3 types), 3-band Compressor, 4-band Digital Equalizer

Connectivity

output jacks	L/MONO, R Jacks (1/4-inch phone type), BALANCED OUT (L, R) Jacks (XLR type)
pedal jacks	DAMPER Pedal Jack, Control Pedal Jacks (FC1, FC2)
midi connectors	IN, OUT1, OUT2, THRU/OUT3

Weight and Dimensions

width	1, 444 mm (56-7/8 inches)
depth	375 mm (14-13/16 inches)
height	148 mm (5-7/8 inches)
weight	25.0 kg (55 lbs 2 oz)
