Detailed Settings for Each Function

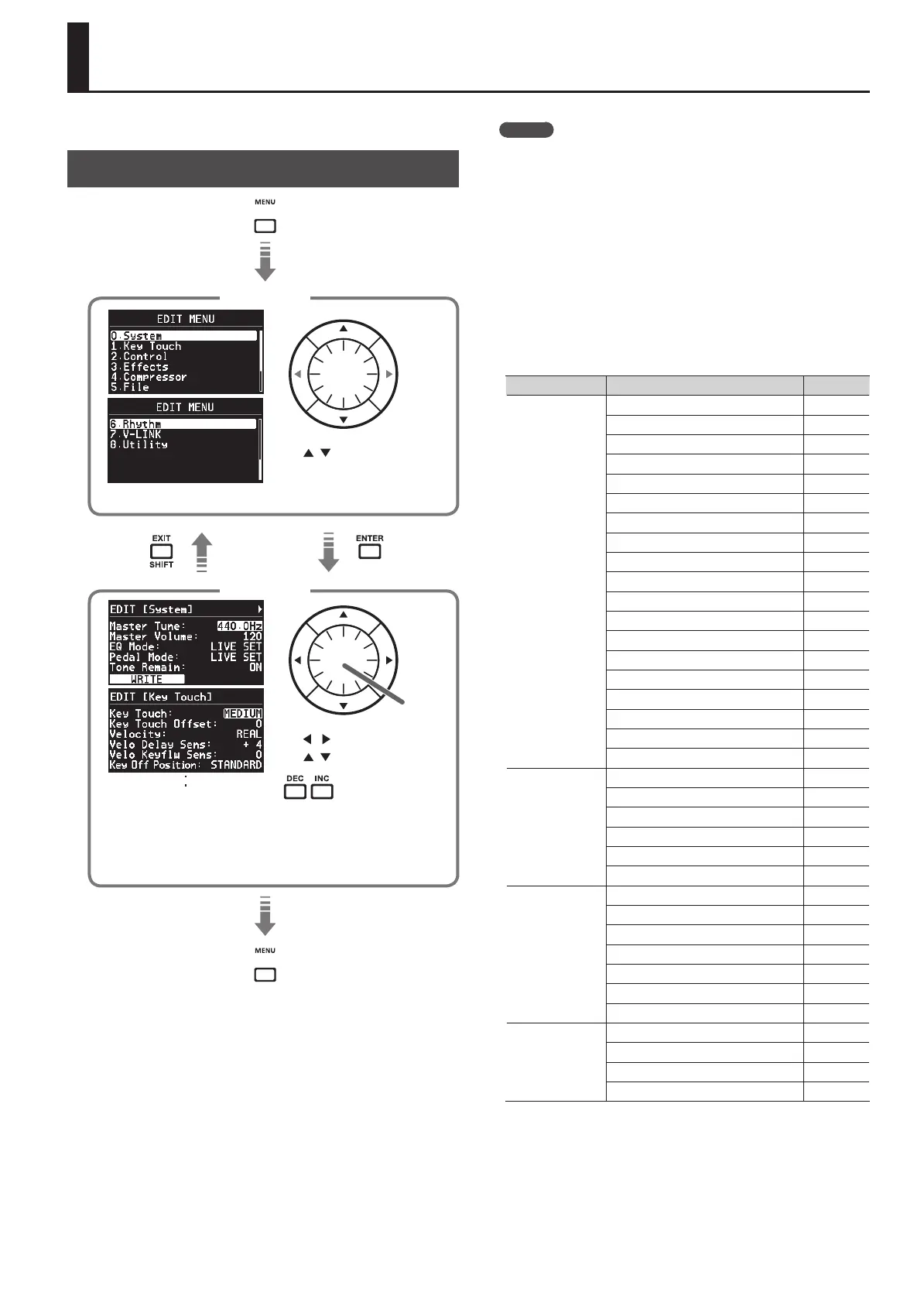

The MENU button can be used to make a variety of settings.
Setting Parameters
To setting screen
Leaving setting screen
Change the value
You can input the value using the
LIVE SET buttons, and press the
[ENTER] button to set the value.
(The number of Edit screen
pages may vary according
to the menu selected.)
VALUE
dial
VALUE dial
Using the LIVE SET buttons,
you can select the menu.
Select a menu
Select an item
Switch screens
Getting the [MENU]
button light
Extinguishing the
[MENU] button
Edit Screen
Menu Screen
MEMO
The following settings will be stored as common settings for the
entire RD-700NX when you press the [LAYER EDIT] (WRITE) button
in an edit screen.
0. System
4. Compressor
7. V-LINK
However, following settings are not saved.
• V-LINK On or O
Parameters That Can Be Set
Menu Parameter Page
0. System
Master Tune p. 67
Master Volume p. 67
EQ Mode p. 67
Pedal Mode p. 67
Tone Remain p. 68
S1/S2 Mode p. 68
Live Set Control Channel p. 69
USB Driver p. 69
USB Memory Mode p. 69
USB MIDI Thru Switch p. 69
MIDI OUT3 Port Mode p. 69
Damper Polarity p. 69
FC1 Polarity p. 69
FC2 Polarity p. 69
Part Mode p. 69
Temperament p. 70
Temperament Key p. 70
Rx. GM/GM2 System ON p. 70
Rx. GS Reset p. 70
1. Key Touch
Key Touch p. 71
Key Touch Oset p. 71
Velocity p. 71
Velocity Delay Sensitivity p. 71
Velocity Keyfollow Sensitivity p. 71
Key O Position p. 71
2. Control
FC1 Pedal Assign p. 72
FC2 Pedal Assign p. 72
S1 Assign p. 73
S2 Assign p. 73
Slider Assign p. 73
MFX Control Destination p. 73
Harmonic Bar p. 73
3. Eects
Reverb Type p. 74
Reverb Parameters p. 74
Chorus Type p. 75
Chorus Parameters p. 75

Roland RD-700NX Specifications

Power

power consumption	12 W

Audio and Sound

maximum polyphony	128 voices
sound generator	SuperNATURAL Piano, SuperNATURAL (E.Piano), Virtual Tone Wheel Organ, PCM Sound Generator, GM2 (for SMF Playback)
effects	Multi-Effects (2 x 4 systems, 84 types), Reverb (6 types), Chorus (3 types), 3-band Compressor, 4-band Digital Equalizer

Connectivity

output jacks	L/MONO, R Jacks (1/4-inch phone type), BALANCED OUT (L, R) Jacks (XLR type)
pedal jacks	DAMPER Pedal Jack, Control Pedal Jacks (FC1, FC2)
midi connectors	IN, OUT1, OUT2, THRU/OUT3

Weight and Dimensions

width	1, 444 mm (56-7/8 inches)
depth	375 mm (14-13/16 inches)
height	148 mm (5-7/8 inches)
weight	25.0 kg (55 lbs 2 oz)
