Roland RD-700NX User Manual

21

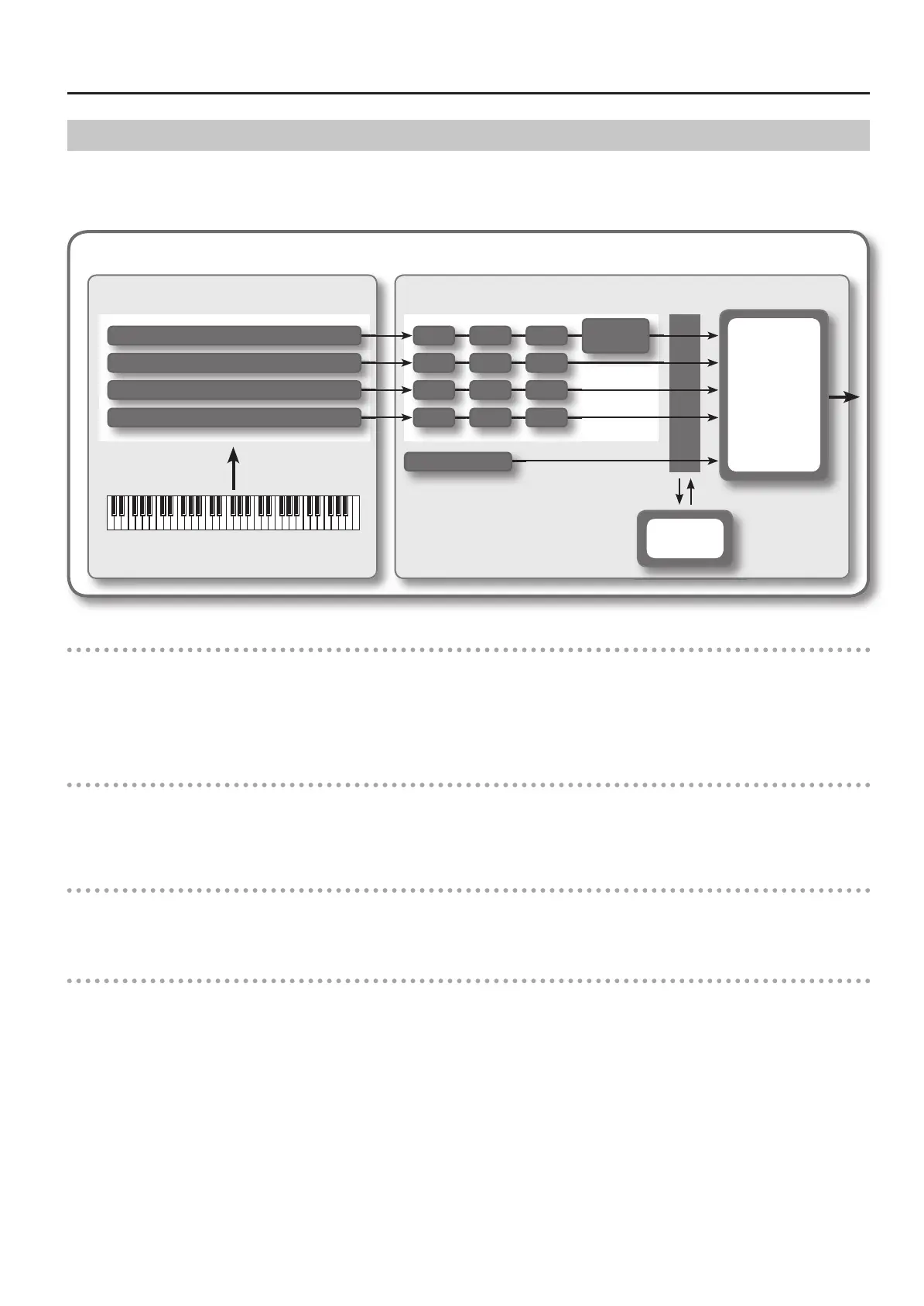

Overview of the RD-700NX
About Live Sets
The RD-700NX lets you store the sounds that you create.
A sound you create is called a “Live Set”; you can use the buttons to recall a Live Set and then play it.
Live Sets are organized into a “preset bank” and a “user bank.”
Live Set
Controller Section Sound Generator Section
Layer (UPPER 1)
Layer (UPPER 2)
Layer (LOWER 1)
Layer (LOWER 2)
Rhythm
Reverb
Chorus
Tone
MFX1 MFX2
Tone
MFX1 MFX2
Tone
MFX1 MFX2
Tone
MFX1 MFX2
Sound
Focus
Compressor
Equalizer
Rhythm has only
reverb
Layer
The RD-700NX features four parts (UPPER 1, UPPER 2, LOWER 1, and LOWER 2) that you can use for freely controlling the Internal parts with the
RD-700NX’s buttons and keyboard. These four parts that are used for controlling the Internal parts are collectively known as the “Layer.”
Furthermore, you can freely control external MIDI sound generators with the RD-700NX in the same manner as with the Layer. You can likewise control
the external MIDI sound generator with the four parts (UPPER 1, UPPER 2, LOWER 1, and LOWER 2), with this group of four parts being referred to as the
“EXTERNAL Layer.” The external MIDI sound generator is assigned to these four parts for control.
Tone
The individual sounds used when playing the RD-700NX are referred to as “Tones.” Tones are assigned to each layer.
The Tones also include various groups of percussion instrument assembled into “Rhythm Sets.” Each key (note number) of a Rhythm Set will produce a
di erent percussion instrument.
Preset bank
This contains 300 pre-programmed Live Sets.
Although you cannot rewrite the contents of this bank, you are free to create new sounds based on these Live Sets.
User bank
Sounds that you create can be saved in this bank of 100 Live Sets.
For details on how to save a sound, refer to “Storing Settings to Live Sets” (p. 45).

Roland RD-700NX Specifications

Power

power consumption	12 W

Audio and Sound

maximum polyphony	128 voices
sound generator	SuperNATURAL Piano, SuperNATURAL (E.Piano), Virtual Tone Wheel Organ, PCM Sound Generator, GM2 (for SMF Playback)
effects	Multi-Effects (2 x 4 systems, 84 types), Reverb (6 types), Chorus (3 types), 3-band Compressor, 4-band Digital Equalizer

Connectivity

output jacks	L/MONO, R Jacks (1/4-inch phone type), BALANCED OUT (L, R) Jacks (XLR type)
pedal jacks	DAMPER Pedal Jack, Control Pedal Jacks (FC1, FC2)
midi connectors	IN, OUT1, OUT2, THRU/OUT3

Weight and Dimensions

width	1, 444 mm (56-7/8 inches)
depth	375 mm (14-13/16 inches)
height	148 mm (5-7/8 inches)
weight	25.0 kg (55 lbs 2 oz)
