Using Insertion Effects
44: Cho → Delay (Chorus → Delay) [02H, 09H]
This effect connects a chorus and a delay unit in series.

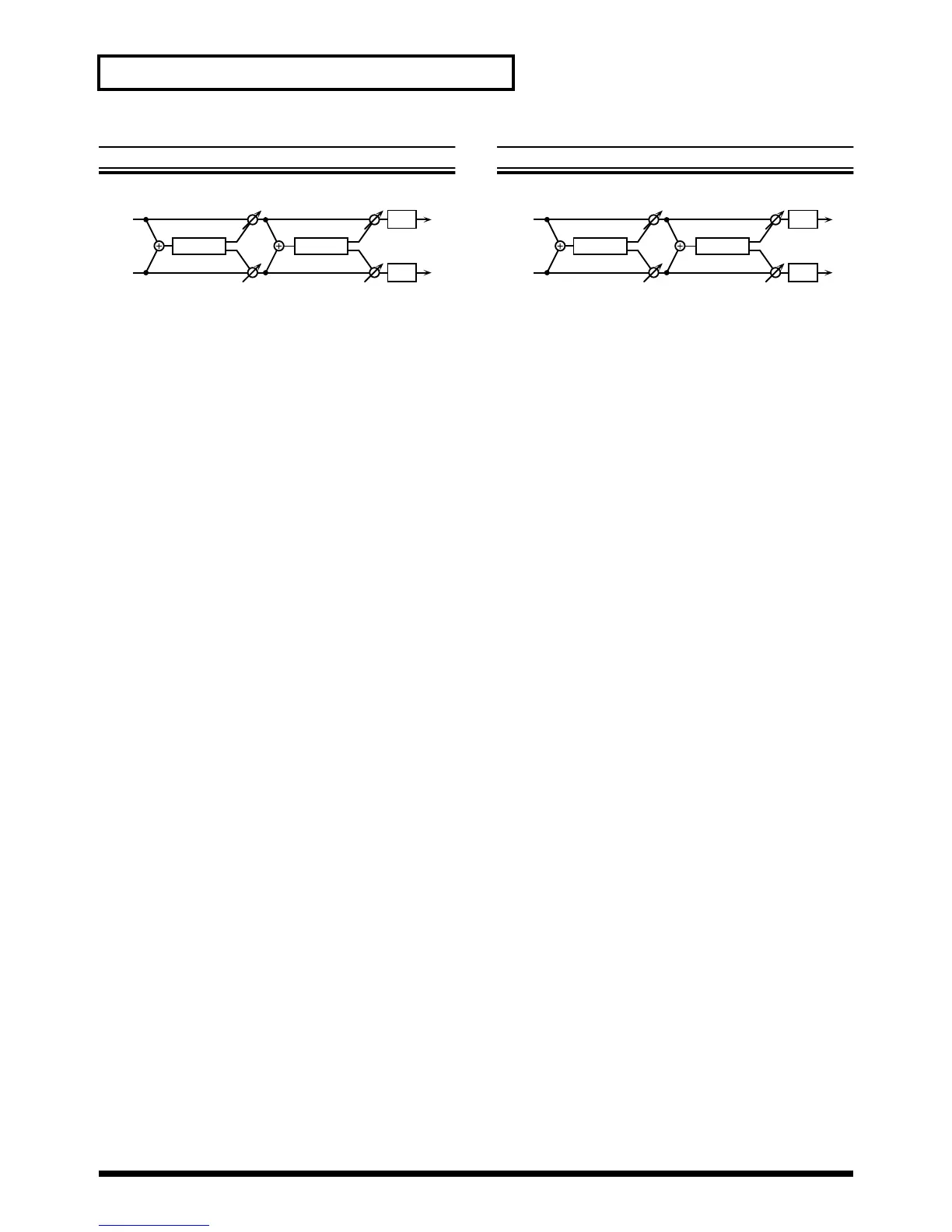

fig.9-47
Cho Dly (Chorus Pre Delay) 0–100ms [1 (40 03 03)]
Adjusts the time delay from when the direct sound begins
until the chorus sound is heard.
Cho Rate (Chorus Rate) 0.05–10.0 [2 (40 03 04)]
Adjusts the modulation speed of the chorus effect.
Cho Depth (Chorus Depth) 0–127 [3 (40 03 05)]
Adjusts the modulation depth of the chorus effect.
+Cho Bal (Chorus Balance) D>0E–D0<E [5 (40 03 07)]
Adjusts the volume balance between the direct sound and
the chorus sound. With a setting of D>0E, only the direct
sound will be output. With a setting of D0<E, only the
chorus sound will be output.
“D” or “E” on the display respectively means D (direct
sound) or E (effect sound) values of 100.
Dly Time (Delay Time) 0–500ms [6 (40 03 08)]
Adjusts the time delay from when the direct sound begins
until the delay sound is heard.
Dly Fb (Delay Feedback Level) -98%–+98% [7 (40 03 09)]
Adjusts the proportion (%) of the delay sound that is fed
back into the delay input. Negative (-) settings will invert
the phase.
Dly HF (Delay HF Damp) 315–8k/Bypass [8 (40 03 0A)]
Adjusts the frequency above which delayed sound fed back
to the delay input will be cut. If you do not wish to cut the
high frequencies of the feedback, set this parameter to
Bypass.
#Dly Bal (Delay Balance) D>0E–D0<E [10 (40 03 0C)]
Adjusts the volume balance between the sound that passes
through the delay and the sound that does not. With a
setting of D>0E, only the chorus sound will be output, and
with a setting of D0<E, the chorus sound that passes
through the delay will be output.
“D” or “E” on the display respectively means D (direct
sound) or E (effect sound) values of 100.
Low Gain -12–+12 [17 (40 03 13)]
Adjusts the low frequency gain.
Hi Gain (High Gain) -12–+12 [18 (40 03 14)]
Adjusts the high frequency gain.
Level (Output Level) 0–127 [20 (40 03 16)]
Adjusts the output level.
45: FL → Delay (Flanger → Delay) [02H, 0AH]
This effect connects a flanger and a delay in series.
fig.9-48
FL Dly (Flanger Pre Delay) 0–100ms [1 (40 03 03)]
Adjusts the time delay from when the direct sound begins
until the flanger sound is heard.
FL Rate (Flanger Rate) 0.05–10.0 [2 (40 03 04)]
Adjusts the modulation speed of the flanger effect.
FL Depth (Flanger Depth) 0–127 [3 (40 03 05)]
Adjusts the modulation depth of the flanger effect.
+FL Fb (Flanger Feedback Level)-98%–+98% [4 (40 03 06)]
Adjusts the proportion (%) of the flanger sound that is fed
back into the effect. Negative (-) settings will invert the
phase.
FL Bal (Flanger Balance) D>0E–D0<E [5 (40 03 07)]
Adjusts the volume balance between the direct sound and
the flanger sound. With a setting of D>0E, only the direct
sound will be output. With a setting of D0<E, only the
flanger sound will be output.
“D” or “E” on the display respectively means D (direct
sound) or E (effect sound) values of 100.
Dly Time (Delay Time) 0–500ms [6 (40 03 08)]
Adjusts the time delay from when the direct sound begins
until the delay sound is heard.
Dly Fb (Delay Feedback Level) -98%–+98% [7 (40 03 09)]
Adjusts the proportion (%) of the delay sound that is fed
back into the delay input. Negative (-) settings will invert
the phase.
Dly HF (Delay HF Damp) 315–8k/Bypass [8 (40 03 0A)]
Adjusts the frequency above which delayed sound fed back
to the delay input will be cut. If you do not wish to cut the
high frequencies of the delay feedback, set this parameter to
Bypass.
#Dly Bal (Delay Balance) D>0E–D0<E [10 (40 03 0C)]
Adjusts the volume balance between the sound that passes
through the delay and the sound that does not. With a
setting of D>0E, only the flanger sound will be output, and
with a setting of D0<E, the flanger sound that passes
through the delay will be output.
“D” or “E” on the display respectively means D (direct
sound) or E (effect sound) values of 100.
Low Gain -12–+12 [17 (40 03 13)]
Adjusts the low frequency gain.
Hi Gain (High Gain) -12–+12 [18 (40 03 14)]
Adjusts the high frequency gain.
Level (Output Level) 0–127 [20 (40 03 16)]
Adjusts the output level.
L
R
Delay
EQ
EQ
Chorus
To Next Page
