Using Insertion Effects
49: GTR Multi 2 (Guitar Multi 2) [04H, 01H]
Guitar Multi 2 provides Compressor (Cmp), Overdrive or
Distortion (OD), Equalizer (EQ), and Chorus or Flanger (CF)
effects connected in series.

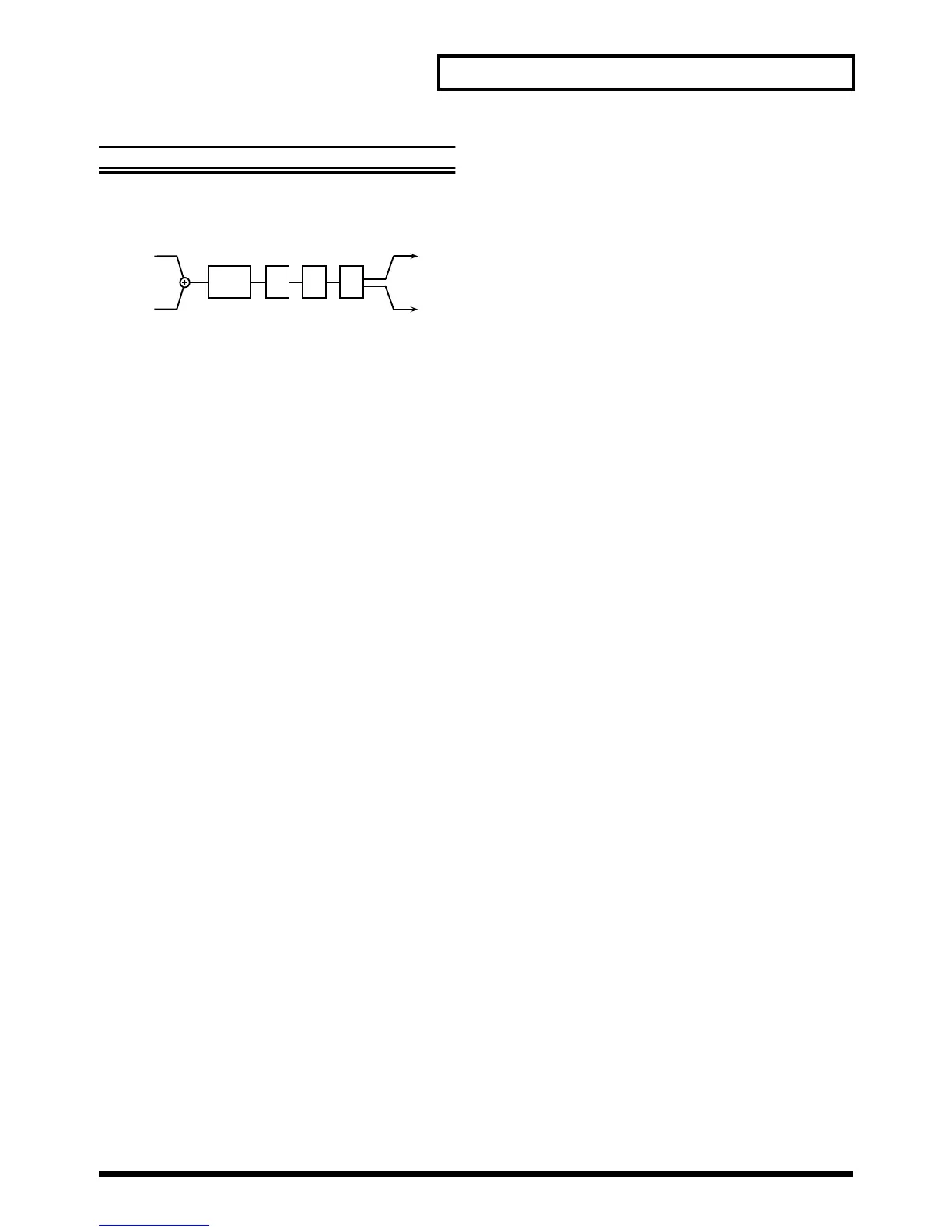

fig.9-52
● Cmp (Compressor)
Cmp Atck (Compressor Attack) 0–127 [1 (40 03 03)]
Adjusts the time over which the sound will rise after it is
input.
Cmp Sus (Compressor Sustain) 0–127 [2 (40 03 04)]
Adjusts the time over which low-level sounds are boosted
until they reach a specified volume.
Increasing the value will shorten the time. When the value
is modified, the level will also change.
Cmp Level (Compressor Level) 0–127 [3 (40 03 05)]
Adjusts the volume of the compressor sound.
Cmp Sw (Compressor Switch) Off/On [4 (40 03 06)]
Turns the compressor on/off.
● OD (Overdrive/Distortion)
OD Sel (OD Select) Odrv/Dist [5 (40 03 07)]
Selects either Overdrive or Distortion.
+OD Drive (OD Drive) 0–127 [6 (40 03 08)]
Adjusts the degree of distortion. The volume will change
together with the degree of distortion.
OD Amp (Overdrive Amp Simulator Type)
Small/BltIn/2-Stk/3-Stk [7 (40 03 09)]
Selects the type of guitar amp
Small: small amp
BltIn: single-unit type amp
2-Stk: large double stack amp
3-Stk: large triple stack amp
OD Amp Sw (OD Amp Switch) Off/On [8 (40 03 0A)]
Turns OD Amp on/off.
OD Sw (OD Switch) Off/On [9 (40 03 0B)]
Turns Overdrive or Distortion on/off.
● EQ (Equalizer)
EQ L Gain (EQ Low Gain) -12–+12 [10 (40 03 0C)]
Adjusts the low-range gain of the equalizer.
EQ M Fq (EQ Mid Frequency) 200–6.3k [11 (40 03 0D)]
Sets the center frequency for the equalizer mid-range.
EQ M Q (EQ Mid Q) 0.5/1.0/2.0/4.0/9.0 [12 (40 03 0E)]
Adjusts the width of the area centered at the EQ M Fq
setting in which the gain will be affected. The area affected
will become narrower as this value is increased.
EQ M Gain (EQ Mid Gain) -12–+12 [13 (40 03 0F)]
Adjusts the gain of the area specified by the EQ M Fq
parameter and the EQ M Q parameter.
EQ H Gain (EQ High Gain) -12–+12 [14 (40 03 10)]
Adjusts the high-range gain of the equalizer.
● CF (Chorus/Flanger)
CF Sel (CF Select) Chorus/Flangr [15 (40 03 11)]
Selects either Chorus or Flanger.
CF Rate 0.05–6.40 [16 (40 03 12)]
Adjusts the speed of modulation for the chorus or flanger.
CF Depth 0–127 [17 (40 03 13)]
Adjusts the depth of modulation for the chorus or flanger.
CF Fb (CF Feedback) -98%–+98% [18 (40 03 14)]
Adjusts the amount (%) of the flanger sound that will be
returned to the input. Negative (-) values will invert the
phase.
* In the case of Chorus, this will have no effect.
#CF Mix (CF Mix) 0–127 [19 (40 03 15)]
Adjusts the volume of the chorus or flanger sound.
Level (Output Level) 0–127 [20 (40 03 16)]
Adjusts the output level.
