Using Insertion Effects
51: Clean Gt Multi1 (Clean Guitar Multi 1) [04H, 03H]
Clean Guitar Multi 1 connects Compressor (Cmp), Equalizer
(EQ), Chorus or Flanger (CF), and Delay (Dly) effects in series.

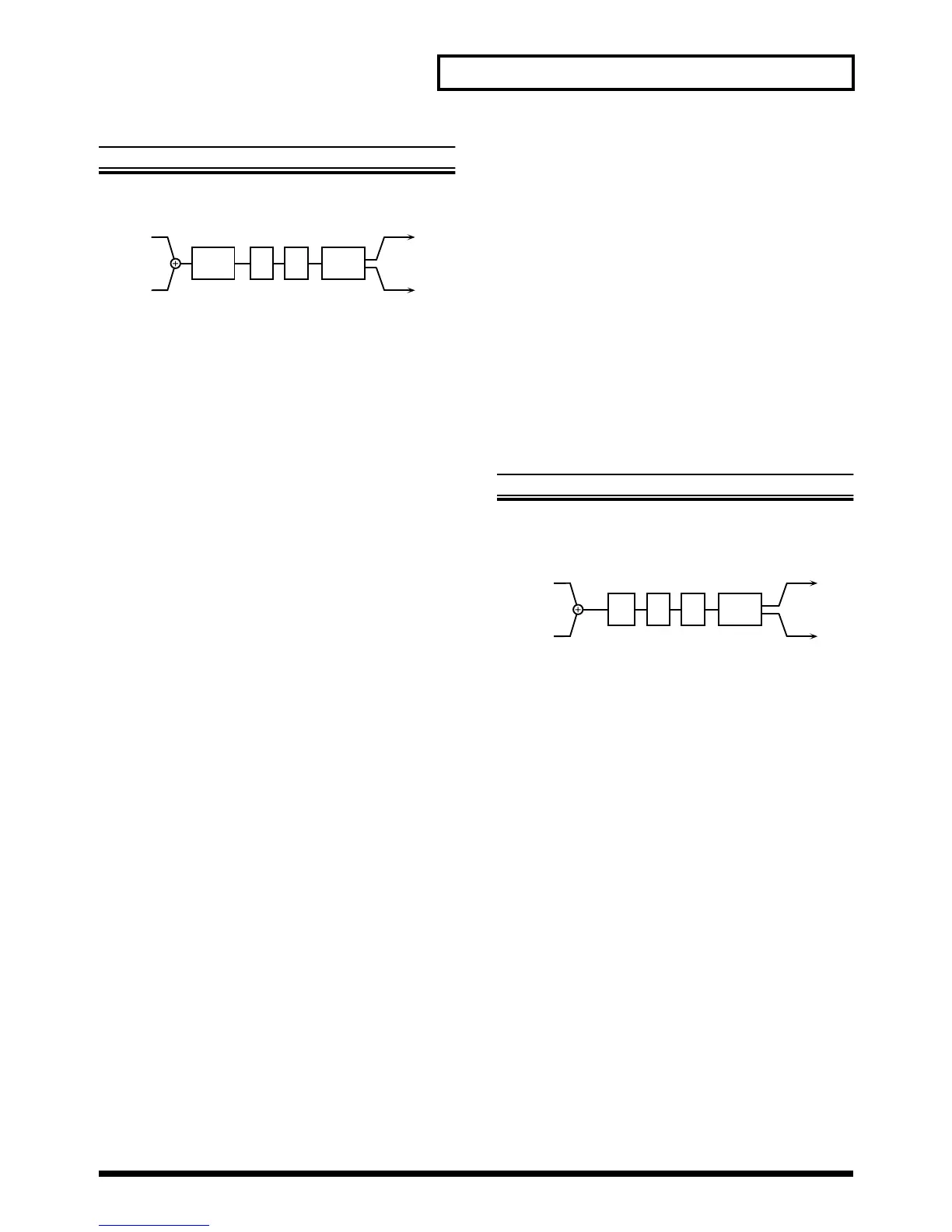

fig.9-54
● Cmp (Compressor)
Cmp Atck (Compressor Attack) 0–127 [1 (40 03 03)]
Adjusts the time over which the sound will rise after it is
input.
Cmp Sus (Compressor Sustain) 0–127 [2 (40 03 04)]
Adjusts the time over which low-level sounds are boosted
until they reach a specified volume.
Increasing the value will shorten the time. When the value
is modified, the level will also change.
Cmp Level (Compressor Level) 0–127 [3 (40 03 05)]
Adjusts the volume of the compressor sound.
Cmp Sw (Compressor Switch) Off/On [4 (40 03 06)]
Turns the compressor on/off.
● EQ (Equalizer)
EQ L Gain (EQ Low Gain) -12–+12 [5 (40 03 07)]
Adjusts the low-range gain of the equalizer.
EQ M Fq (EQ Mid Frequency) 200–6.3k [6 (40 03 08)]
Sets the center frequency for the equalizer mid-range.
EQ M Q (EQ Mid Q) 0.5/1.0/2.0/4.0/9.0 [7 (40 03 09)]
Adjusts the width of the area centered at the EQ M Fq
setting in which the gain will be affected. The area affected
will become narrower as this value is increased.
EQ M Gain (EQ Mid Gain) -12–+12 [8 (40 03 0A)]
Adjusts the gain of the area specified by the EQ M Fq
parameter and the EQ M Q parameter.
EQ H Gain (EQ High Gain) -12–+12 [9 (40 03 0B)]
Adjusts the high-range gain of the equalizer.
● CF (Chorus/Flanger)
CF Sel (CF Select) Chorus/Flangr [10 (40 03 0C)]
Selects either Chorus or Flanger.
CF Rate 0.05–6.40 [11 (40 03 0D)]
Adjusts the speed of modulation for the chorus or flanger.
CF Depth 0–127 [12 (40 03 0E)]
Adjusts the depth of modulation for the chorus or flanger.
CF Fb (CF Feedback) -98%–+98% [13 (40 03 0F)]
Adjusts the amount (%) of the flanger sound that will be
returned to the input. Negative (-) values will invert the
phase.
* In the case of Chorus, this will have no effect.
+CF Mix (CF Mix) 0–127 [14 (40 03 10)]
Adjusts the volume of the chorus or flanger sound.
● Dly (Delay)
Dly Time (Delay Time) 0–635ms [15 (40 03 11)]
Adjusts the time from the original sound until when the
delay sound is heard.
Dly Fb (Delay Feedback Level) 0–127 [16 (40 03 12)]
Adjusts the amount of the delay sound that is returned to
the input.
Dly HF (Delay HF Dump) 315-8k/Bypass[17 (40 03 13)]
Adjusts the frequency at which the high range will be cut
from the delay sound that is returned to the input. If you do
not wish to cut the high range of the returned sound, select
Bypass.
#Dly Mix (Delay Mix) 0–127 [18 (40 03 14)]
Adjusts the volume of the delay sound.
Level (Output Level) 0–127 [20 (40 03 16)]
Adjusts the output level.
52: Clean Gt Multi2 (Clean Guitar Multi 2) [04H, 04H]
Clean Guitar Multi 2 provides Auto-wah (AW), Equalizer
(EQ), Chorus or Flanger (CF), and Delay (Dly) effects
connected in series.
fig.9-55
● AW (Auto-wah)
AW Filter (Auto-wah Filter Type) LPF/BPF [1 (40 03 03)]
Selects the type of filter for the Auto-wah.
LPF: The wah effect will be produced over a broad
frequency range.
BPF: The wah effect will be produced over a
narrow frequency range.
+AW Man (Auto-wah Manual) 0–127 [2 (40 03 04)]
Sets the center frequency at which the auto-wah effect will
be produced.
AW Peak (Auto-wah Peak) 0–127 [3 (40 03 05)]
Adjusts the way in which the wah effect will be applied to
the region of the center frequency. Lower settings will
produce a wah effect in a broad area around the center
frequency, and higher settings will produce a wah effect in
a narrower area around the center frequency.
AW Rate (Auto-wah Rate) 0.05–6.40 [4 (40 03 06)]
Adjusts the modulation speed of the Auto-wah.
AW Depth (Auto-wah Depth) 0–127 [5 (40 03 07)]
Adjusts the modulation depth of the Auto-wah.
AW Sw (Auto-wah Switch) Off/On [6 (40 03 08)]
Turns Auto-wah on/off.
L
R
DelayCmp
CF
EQ
