123
Using Insertion Effects
59: OD1/OD2 (Overdrive/Distortion 1, 2) [11H, 03H]
This connects two effect units in parallel, each of which
allows you to select Overdrive or Distortion.

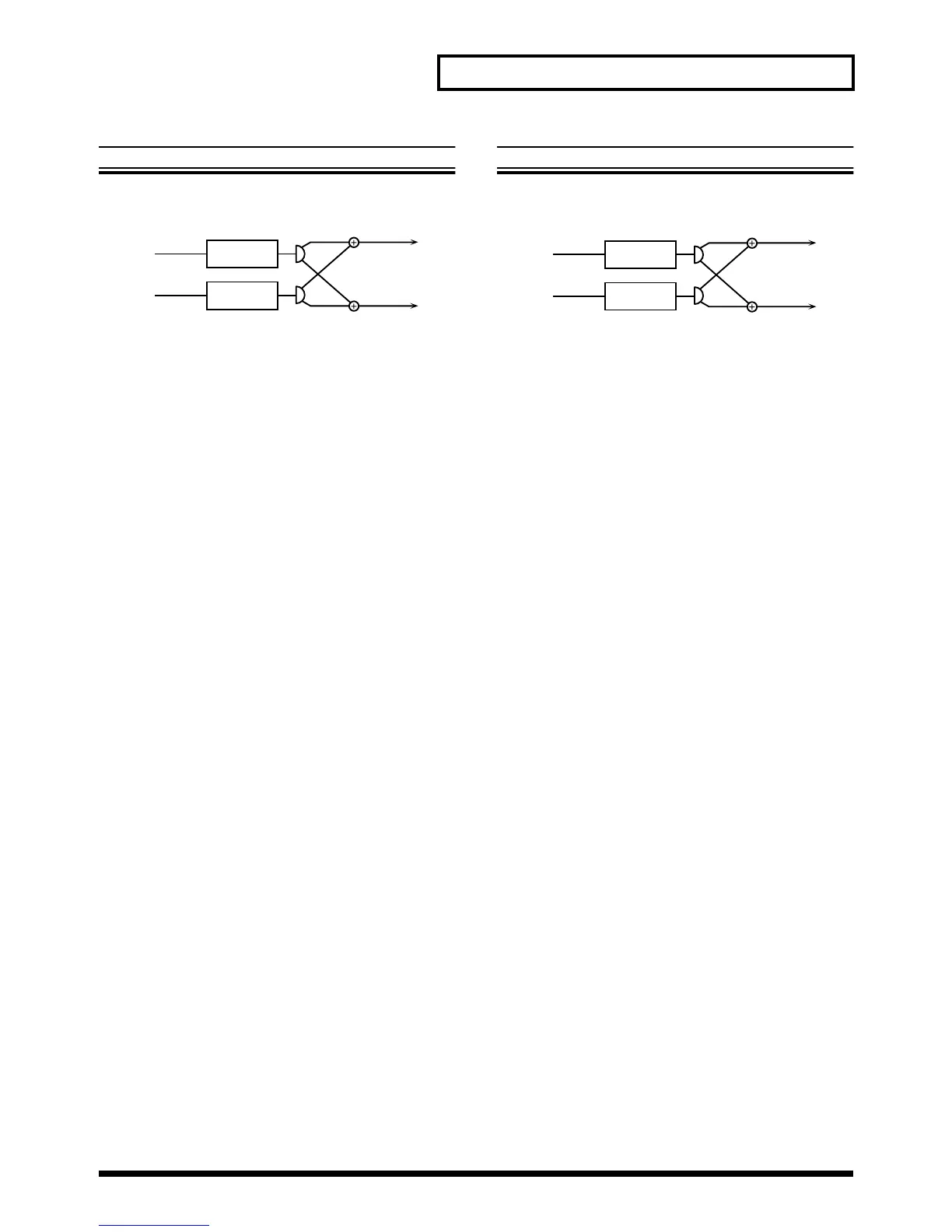

fig.9-64
● OD1 (Overdrive/Distortion 1)
OD1 Sel (OD1 Select) Odrv/Dist [1 (40 03 03)]
Selects either Overdrive or Distortion for set 1.
+OD1 Drive (OD1 Drive) 0–127 [2 (40 03 04)]
Adjusts the degree of distortion for set 1. The volume will
change together with the degree of distortion.
OD1 Amp (OD1 Amp Simulator Type)
Small/BltIn/2-Stk/3-Stk [3 (40 03 05)]
Selects the type of guitar amp for set 1.
Small: small amp
BltIn: single-unit type amp
2-Stk: large double stack amp
3-Stk :large triple stack amp
OD1 Amp Sw (OD1 Amp Switch) Off/On [4 (40 03 06)]
Turns OD1 Amp on/off.
OD1 Pan (OD1 Output Pan) L63–0–R63 [16 (40 03 12)]
Sets the stereo location of the overdrive or distortion sound
for set 1. L63 is far left, 0 is center, and R63 is far right.
OD1 Level 0–127 [17 (40 03 13)]
Adjusts the overdrive or distortion volume for set 1.
● OD2 (Overdrive/Distortion 2)
OD2 Sel (OD2 Select) Odrv/Dist [6 (40 03 08)]
Selects either Overdrive or Distortion for set 2.
#OD2 Drive (OD2 Drive) 0–127 [7 (40 03 09)]
Adjusts the degree of distortion for set 2. The volume will
change together with the degree of distortion.
OD2 Amp (OD2 Amp Simulator Type)
Small/BltIn/2-Stk/3-Stk [8 (40 03 0A)]
Selects the type of guitar amp for set 2.
Small: small amp
BltIn: single-unit type amp
2-Stk: large double stack amp
3-Stk: large triple stack amp
OD2 Amp Sw (OD2 Amp Switch) Off/On [9 (40 03 0B)]
Turns OD2 Amp on/off.
OD2 Pan (OD2 Output Pan) L63–0–R63 [18 (40 03 14)]
Sets the stereo location of the overdrive or distortion sound
for set 2. L63 is far left, 0 is center, and R63 is far right.
OD2 Level 0–127 [19 (40 03 15)]
Adjusts the overdrive or distortion volume for set 2.
Level (Output Level) 0–127 [20 (40 03 16)]
Adjusts the output level.
60: OD/Rotary (Overdrive/Distortion, Rotary) [11H, 04H]
This connects Overdrive or Distortion in parallel with
Rotary.
fig.9-65
● OD (Overdrive/Distortion)
OD Sel (OD Select) Odrv/Dist [1 (40 03 03)]
Selects either Overdrive or Distortion.
+OD Drive (OD Drive) 0–127 [2 (40 03 04)]
Adjusts the depth of overdrive or distortion. The volume
will change together with the depth of distortion.
OD Amp (OD Amp Simulator Type)
Small/BltIn/2-Stk/3-Stk [3 (40 03 05)]
Select the type of guitar amp for overdrive or distortion.
Small: small amp
BltIn: single-unit type amp
2-Stk: large double stack amp
3-Stk: large triple stack amp
OD Amp Sw (OD Amp Switch) Off/On [4 (40 03 06)]
Turns the OD Amp parameter on/off.
OD Pan (OD Output Pan) L63–0–R63 [16 (40 03 12)]
Sets the stereo location of the overdrive or distortion sound.
L63 is far left, 0 is center, and R63 is far right.
OD Level 0–127 [17 (40 03 13)]
Adjusts the volume of the overdrive or distortion sound.
● RT (Rotary)
RT L Slow (RT Low Frequency Slow Rate)
0.05–10.0 [6 (40 03 08)]
Adjusts the speed of the low-range rotor for the slow-speed
setting.
RT L Fast (RT Low Frequency Fast Rate)
0.05–10.0 [7 (40 03 09)]
Adjusts the speed of the low-range rotor for the fast-speed
setting.
RT Lo Accl (RT Low Frequency Acceleration)
0–15 [8 (40 03 0A)]
Adjusts the time over which the rotation speed of the low-
range rotor will change from low-speed to high-speed (or
high-speed to low-speed) rotation. Smaller values will
require greater time to reach the new rotational speed.
RT Lo Lev (RT Low Frequency Level)0–127 [9 (40 03 0B)]
Adjusts the volume of the low-range rotor.
L
R
Overdrive/
Distortion 2
Overdrive/
Distortion 1
Pan
Pan
L
R
Rotary
Overdrive/
Distortion
Pan
Pan
To Next Page
