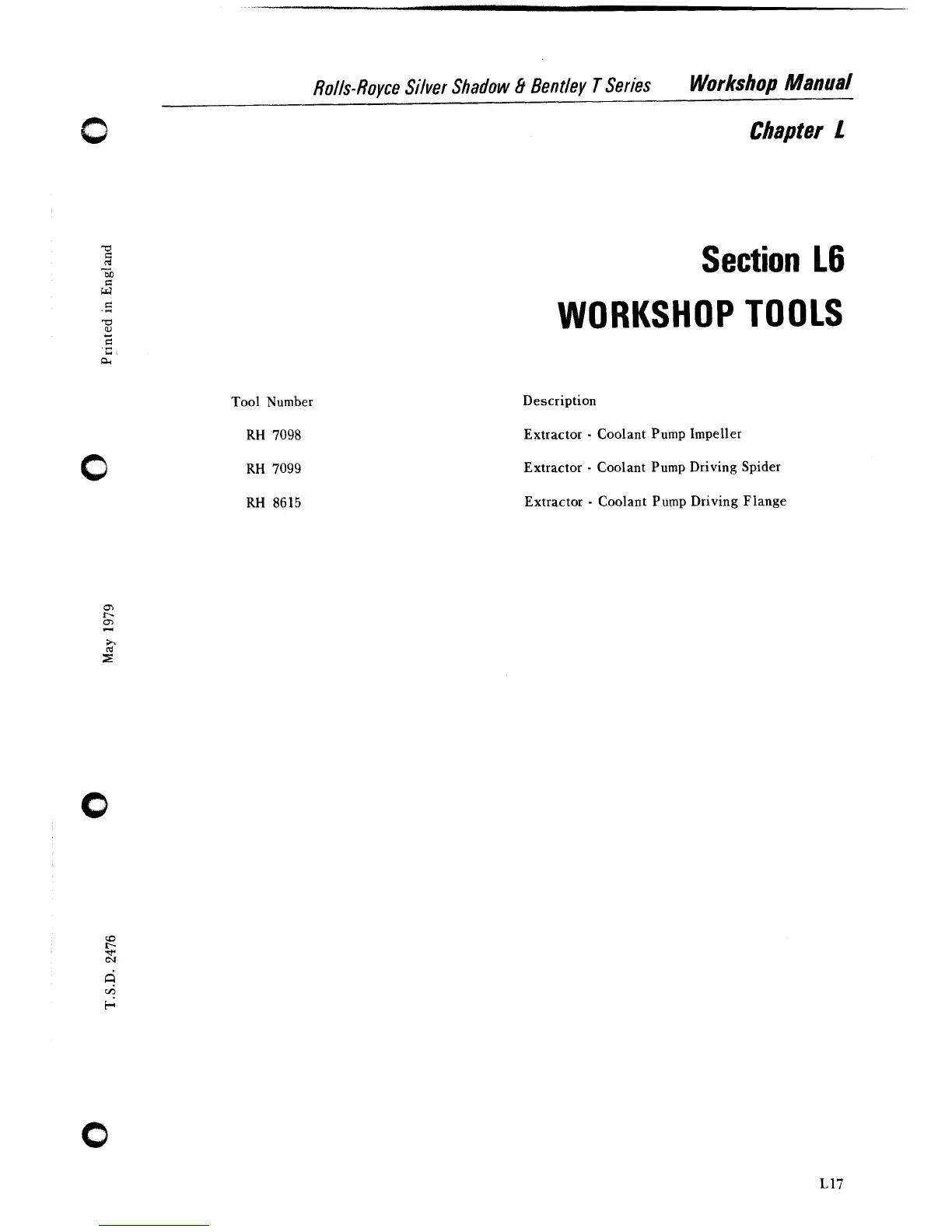

Rolls-Royce Silver Shadow - Section L6 WORKSHOP TOOLS

To Next Page

To Previous Page

Rolls-Royce Silver

Shadow

Bentley

Series

Workshop

Manual

Chapter

Tool Number

RH 7098

RH 7099

8615

Section

WORKSHOP TOOLS

Description

Extractor

Coolant Pump Impeller

Extractor

Coolant Pump Driving Spider

Extractor

Coolant Pump Driving Flange
