Rolls-Royce Silver Shadow - Electrical Bonding of the Car; Final;Aerial Bonding Lead; Position of Radio Aerial; Receiver Aerial-To Fit

Workshop Manual
Rolls- Royce Silver Shadow B Bentley T Series
Chapter M
13.
Unscrew and remove the chromium plated bush
fitted
to the top of the wing. Take care not to
damage the chromium plating.
14.
Slacken the lower mounting nut securing the
aerial assembly to its mounting bracket. It is then
possible to slide the assembly free from its
mounting.
15.
Remove the aerial from underneath the wing
together with its mounting rubbers and distance
collar.

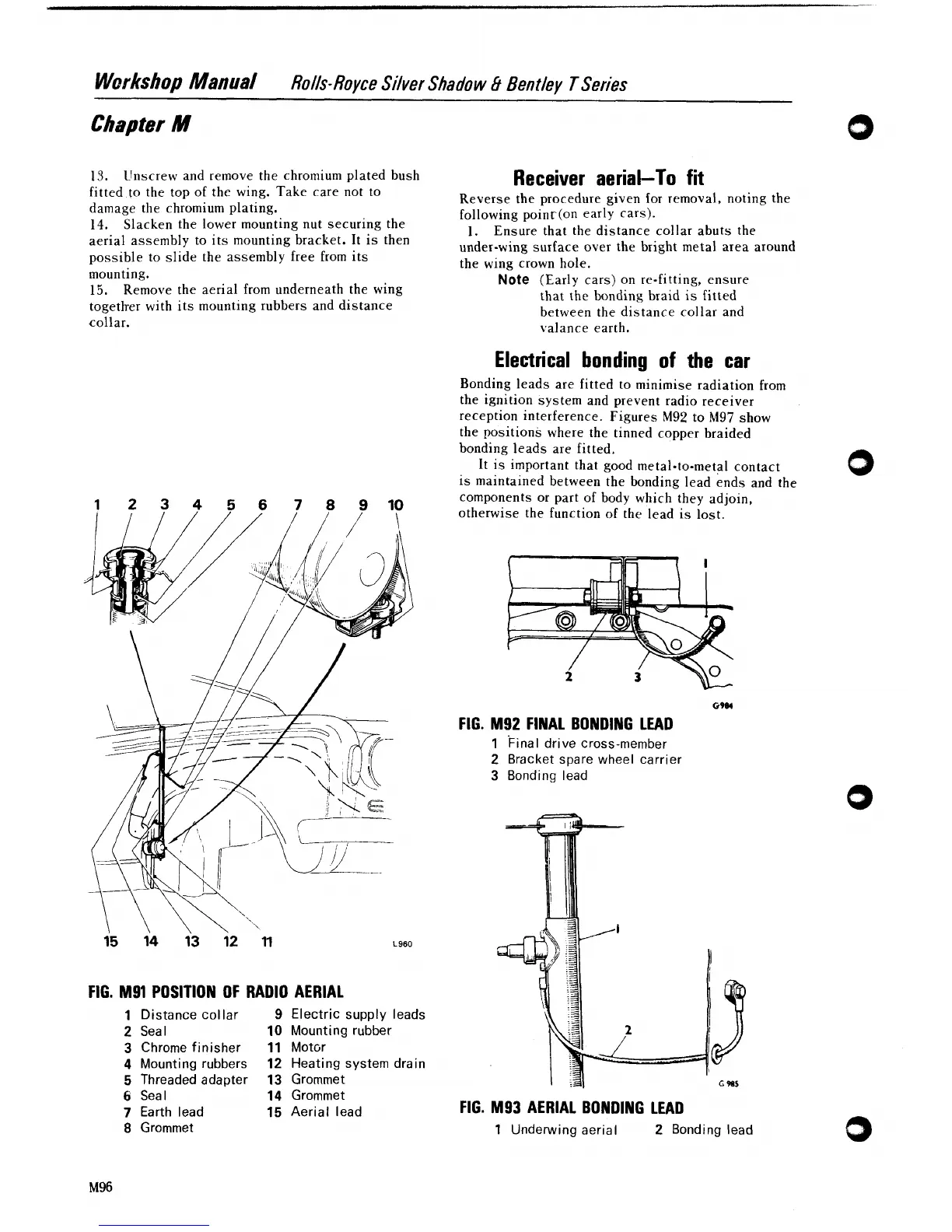

FIG. M91 POSITION OF RADIO AERIAL
1 Distance collar 9 Electric supply leads
2 Seal 10 Mounting rubber
3 Chrome finisher 11 Motcir
4 Mounting rubbers 12 Heating system drain
5 Threaded adapter 13 Grommet
6' Seal 14 Grommet
7 Earth lead 15 Aerial lead
8 Grommet
Receiver aerial-To fit
Reverse the procedure given for removal, noting the
following point-(on early
cars).
1.
Ensure that the distance collar abuts the
under-wing surface over the bright metal area around
the wing crown hole.
Note (Early cars) on re-fitting, ensure
that the bonding braid is fitted
between the distance collar and
valance earth.
Electrical bonding of the car
Bonding leads are fitted to minimise radiation from
the ignition system and prevent radio receiver
reception interference. Figures
M92 to M97 show
the positions where the tinned copper braided
bonding leads are fitted.
It is important that good metal-to-metal contact
is maintained between the bonding lead ends and the
components or part of body which they adjoin,
otherwise the function of the lead is lost.
t984
FIG. M92 FINAL BONDING LEAD
1 Final drive cross-member
2 Bracket spare wheel carrier
3 Bonding lead
FIG. M93 AERIAL BONDING LEAD
1 Underwing aerial 2 Bonding lead
