Workshop Manual
Rolls- Royce Silver Shadow 8 Bentley T Series
th8pter 8
Road wheels-
To remove
I. Apply the handbrakelparkkg brake.
2.
Remove the wheel disc with the tommy bar
provided in the tool kit.
On all cars other than the Corniche, place the
tommy bar in one of the positions indicated by the
arrows shown in Figure
R2 noting the relationship
between these arrows and the tyre valve and then
press the
tommy bar outwards towards the tyre, Do
not twist the
tommy bar.
011 Corniche cars 111~ whv~l tlisc. and wheel trim
are separate
items. 7'0 rcmovt. the wheel disc, place
the
tommy bar in position as shown in Figure R3
and press the tommy bar downwards.
To removc the wheel trim, place the tommy bar
in position as shown
in Figure R4, then press the
tommy bar outwards towards the tyre; do not twist
the
tommy bar. Repeat this operation at several
points around the circumference of the wheel.
3. Slacken the wheel retaining nuts approximately
half-a-turn before raising the car. Nuts on the left-
hand wheels have left-hand threads and nuts on the

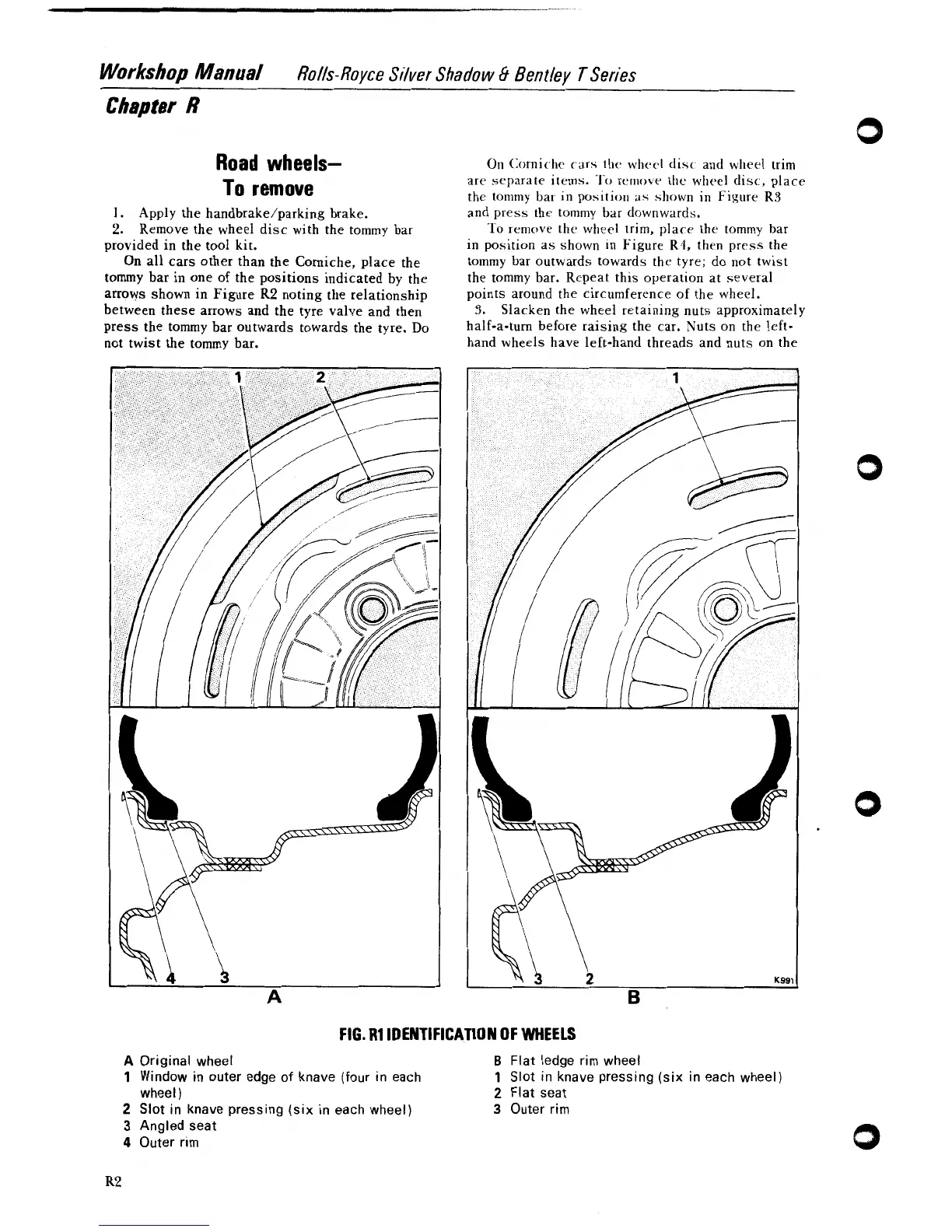

FIG. R1 IDENTIFICATION OF WHEELS
A Original wheel B Flat ledge rim wheel
1 Window in outer edge of knave (four in each 1 Slot in knave pressing (six in each wheel)
wheel)
2 Flat seat
2 Slot in knave pressing (six in each wheel)
3 Outer rim
3 Angled seat
4 Outer rim
