Rolls-Royce Silver Shadow - Steering idler;damper-To dismantle (see Fig. N39); Steering idler;damper-To inspect

Rolls-Royce Silver Shadow B Bentley T Series
Workshop Manuel
Chapter #
4.
Slacken the actuating lever pinch bolt.
7. Remove the upper bearing cage and rollers from
the housing.
5. Unscrew the four 2 B.A. nuts and remove the
8. Carefully remove the idlerldamper shaft and
washers securing the top cover; remove the cover
lever from the housing and collect the chamfered
together with the joint. Discard the joint.
adjusting washer from the top of the shaft.
6.
Remove the split pin, nut and washer from the
9. Remove the fluid seal from the base of the
top of the
idlerldamper shaft.
housing and discard it.
1 Bleed screw 11 Spring
2 Plug
12 Bolt
3 Pad
13 Pin
4 Distance piece 14 Bearing

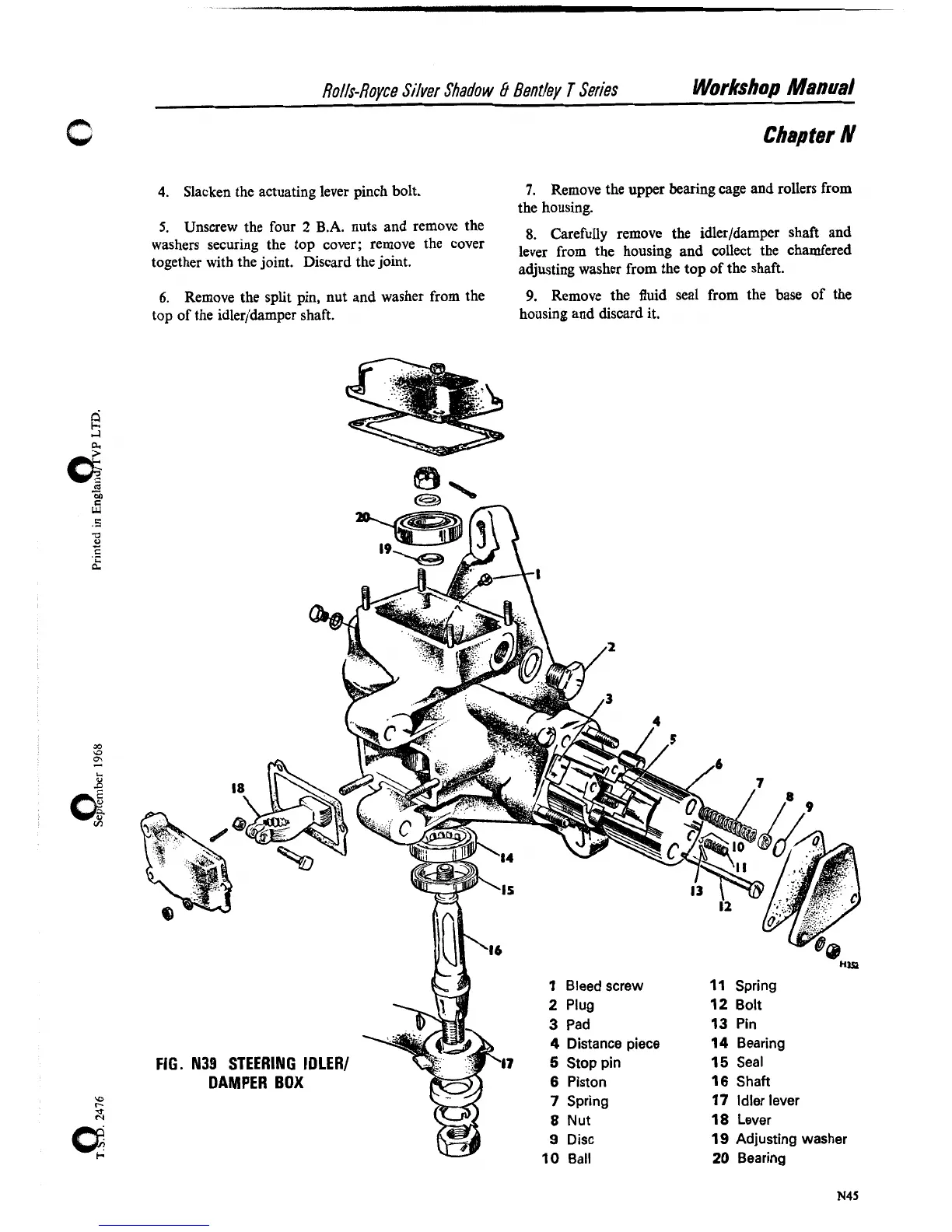

FIG. N39 STEERING IDLER] 17 5 Stop pin
15 Seal
DAMPER BOX 6 Piston
16 Shaft
7 Spring 17 Idler lever
8 Nut 18 Lever
9 Disc 19 Adjusting washer
10 Ball 20 Bearing
