Workshop

Manual

Rolls Royce Silver Shadow

Bentley

Series

Chapter

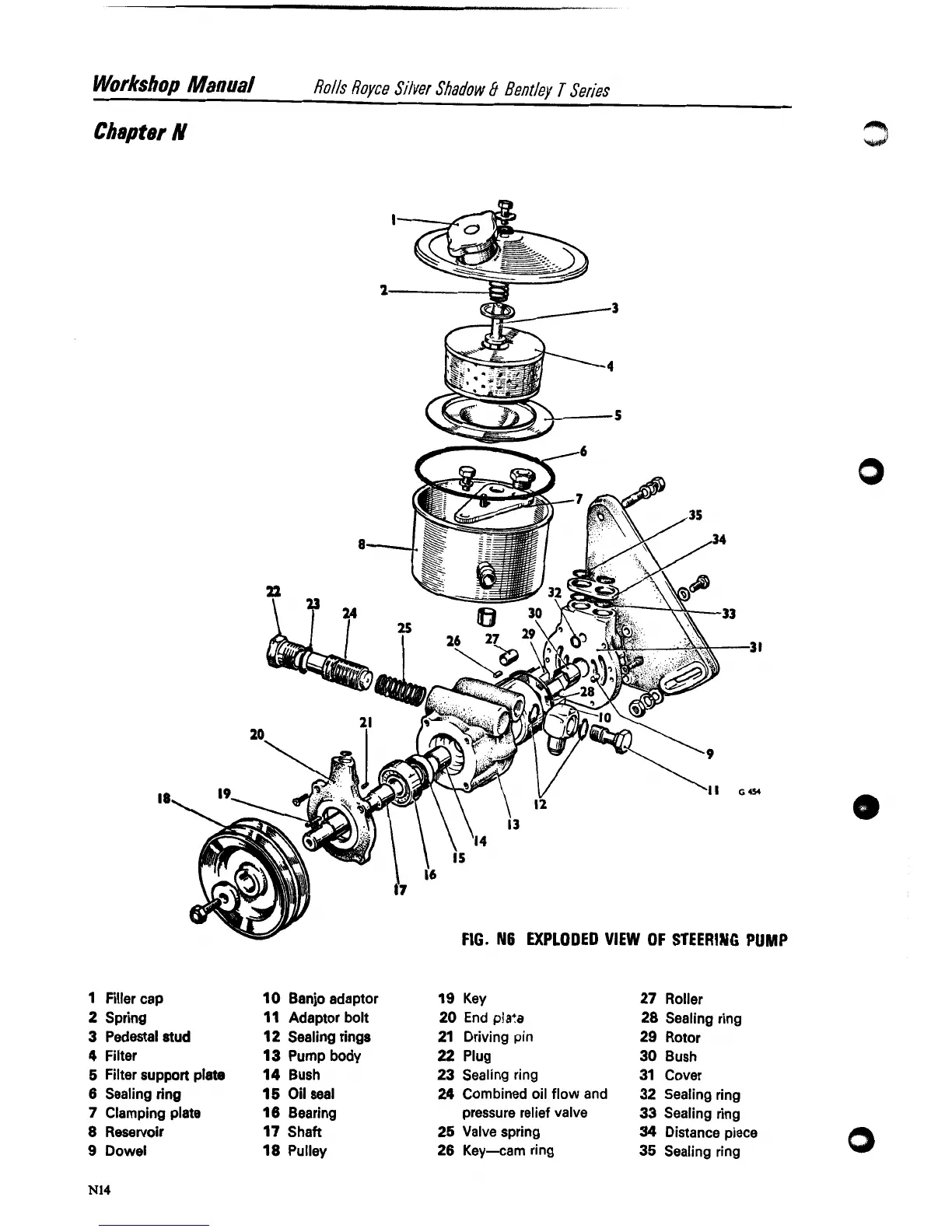

Filler cap

Spring

Pedestal stud

Filter

Filter support plate

Sealing ring

Clamping plate

Reservoir

Dowel

Banjo adaptor

Adaptor bolt

Sealing rings

Pump body

Bush

Oil seal

Bearing

Shaft

Pulley

Key

Roller

End

plala

Sealing ring

Driving

Rotor

Plug

Bush

Sealing ring

Cover

Combined oil flow and

Sealing ring

pressure relief valve

Sealing ring

Valve spring

Distance piece

Key-cam ring

Sealing ring
