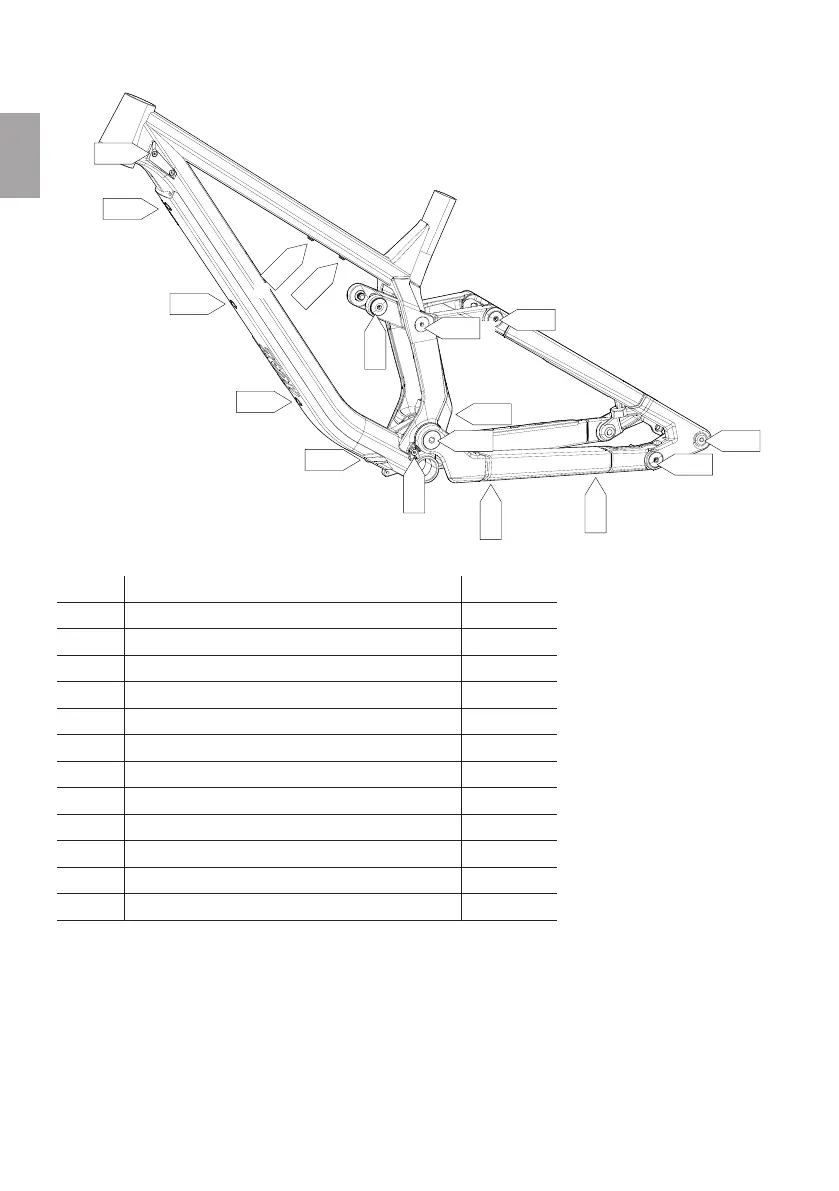

6.5 Torques for frame
Position Component Torque
A Fork stop/cable guide 2Nm
B Mounting bolt down tube/cable guide 2Nm
C Tool Strap mount 2Nm
D Shock mount Trunnion Mount 15 Nm
E Tension clamp crankset 2Nm
F Tension clamp chain stay 2Nm
G Pivot point deflection lever 20 Nm
H Pivot point compression strut/deflection lever 12 Nm
I Thru axle 12 Nm
J Horst Link 12 Nm
K Lower damper mount 12 Nm
L Main pivot 25 Nm
12 Nm
2 Nm
2 Nm
2 Nm
25 Nm
20 Nm
15 Nm
12 Nm
12 Nm
2 Nm
2 Nm
12 Nm
2 Nm
2 Nm
2 Nm
2 Nm
2 Nm
A
B
B
B
B
B
C
C
D
E
F
F
G
H
I
J
K
L
