Product description
27 / 97
Pump

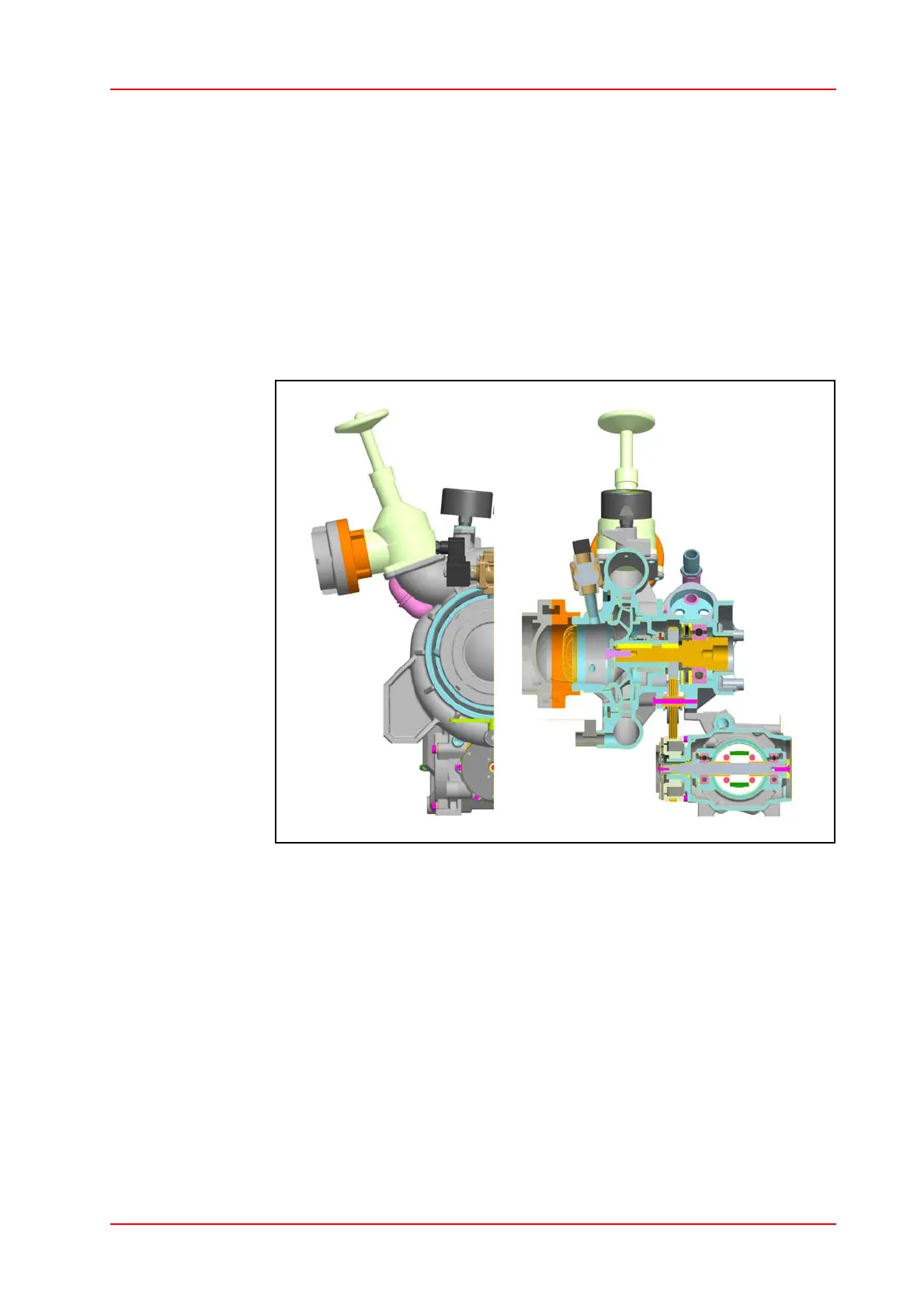

5.4 Pump
The single-stage centrifugal pump, consisting essentially of the impeller,
main casing and bearing block, is made of a high corrosion resistance light
alloy. The pump shaft is of stainless steel. The pump is provided with a cen-
tral suction inlet with suction sieve, fixed coupling and blank cap. Both dis-
charge outlets are equipped with screw-down valves, non-return valves and
pressure relief devices. The drain cock is positioned at the lowest point of
the main casing. The pump shaft is sealed by an axial mechanical shaft
seal. In the upper area of the main casing is the electric exhaust valve,
which is controlled automatically via the LCS2.0 control and instrument
panel or via the priming pump in manual gas operation.
