Product description
28 / 97
Carrying frame
5.5 Carrying frame
The motor-pump unit is fastened to the carrying frame by four elastic rub-
ber-metal bearings. Four horizontal, fold-out, rubber-covered handles are
integrated into the ends of the carrying frame. The handles can be locked
in a longitudinal or perpendicular direction, depending on the carrying meth-
od used. The carrying frame can be equipped with transport wheels and
LED scene lighting.
5.6 Tank
The tank is made of fuel-resistant plastic. It is positioned beneath the en-
gine, so that no fuel can run onto the hot engine when refuelling. For extra
safety, the tank is equipped with a safety lock. When opening, first air flows
into the tank, so that a pressure equalization between the tank and the sur-
roundings occurs. The tank is fully drained by pumping dry. For safety rea-
sons (damage in rough terrain), no drain cock is located on the bottom of
the tank.

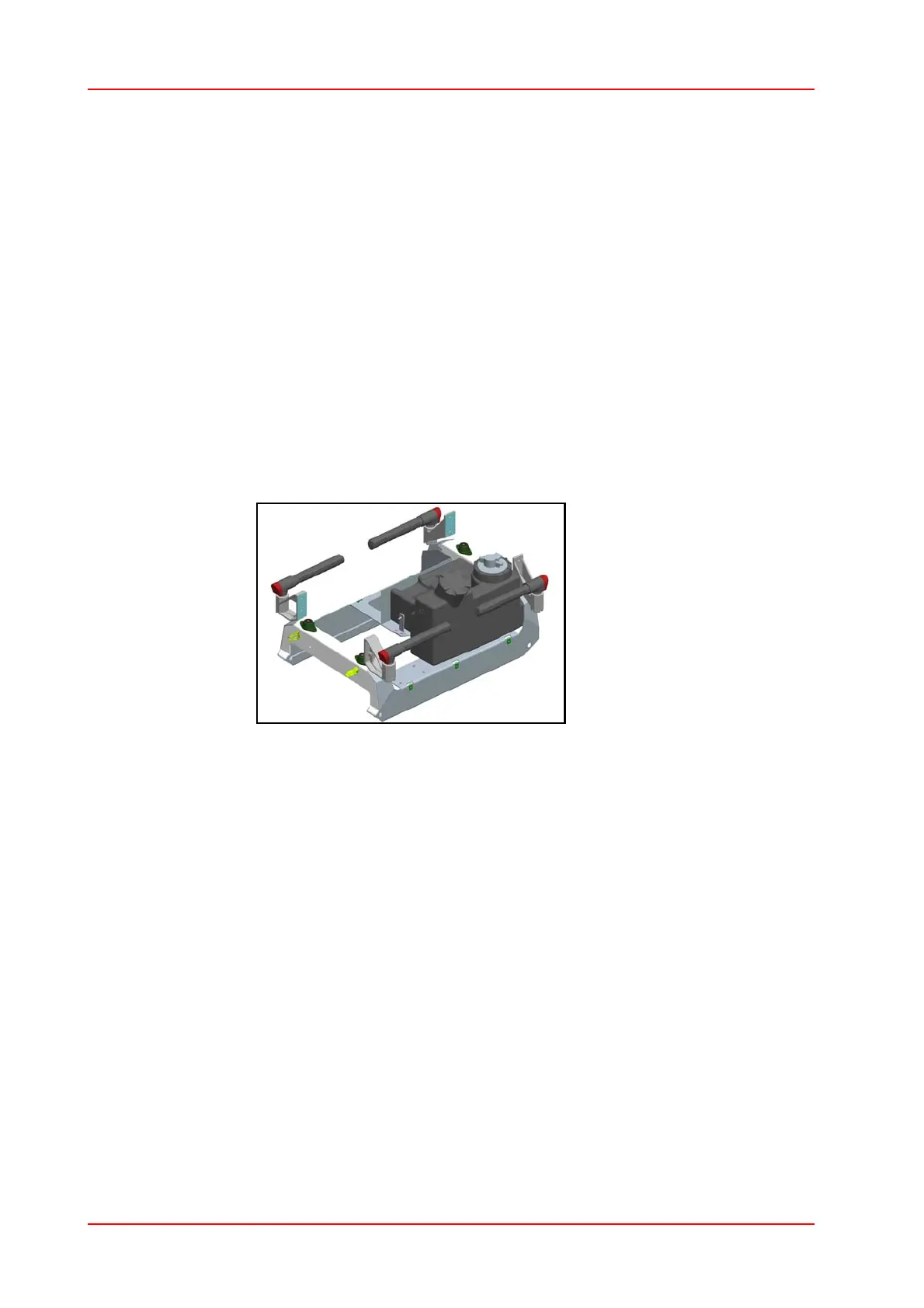

Carrying frame with tank
