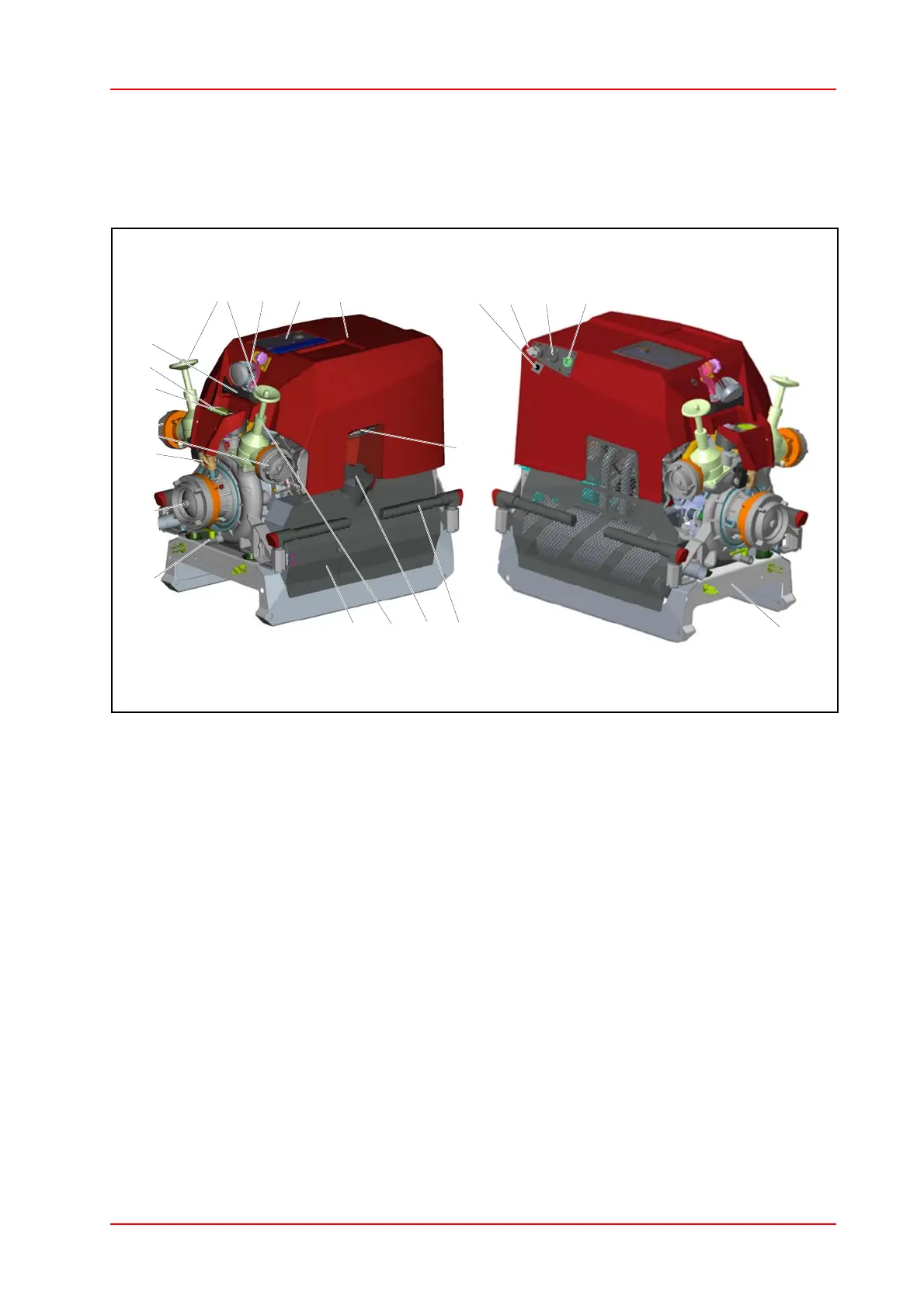

Valves and actuators
6 Technical description
6.1 Valves and actuators
29 Fuel tank cap
79 Purge valve
80 Spindle limit
A6 Battery box
AR1 LCS 2.0 control panel
E11 Working light
EC1 Handle
J7 Drain valve
J10 Screw-down valve
J11 Pressure outlet
J15 External drafting connection
MH1 Engine cover
P28 ND pressure gauge
P30 Vacuum gauge
TB1 Tank filling lighting
TB2 Supporting frame lighting
TG1 Carry handle
X4 Fire CAN connection
X93 USB charging socket
X107 Magcode charging socket
X107 Charging socket DIN 14690 (n.v.)
X107 Beos charging socket (n.v.)
X108 RLS socket
29
E11
J11
J7
P28
J10
P30
A
R1
79
80
J10
J11
J15
MH1
A
6
TG1
GR1
TB1
X4
X107
X93
TB2
X108

Rosenbauer FOX Specifications

General

Pump Type	Centrifugal
Max Pressure	10 bar
Type	Portable Fire Pump
Priming System	Automatic
Engine Type	4-stroke petrol engine
