Rosenbauer FOX User Manual

Technical description
32 / 97
Valves and actuators
LCS 2.0 control panel
DB1 Display screen
EN1 Acknowledge error message
L1 Back one screen page
R1 Forward one screen page
S3 Priming pump
S15a Speed adjustment dial
S16a Idle speed
S57 Ignition on / start the engine
S59 Ignition off / shut down the engine
S118 Illumination (E11 - Working light, TB1 - Tank filling lighting, TB2 - Support frame
lighting (optional))
Display unit
Using the display unit, the operator can open the main status information of
the portable fire pump. The information is presented on the display.
Below the screen are three function switches. The left (L1) and right (R1)
function switches can be used to scroll one screen forward or back.
Error messages can be acknowledged with the middle (EN1) function
switch.

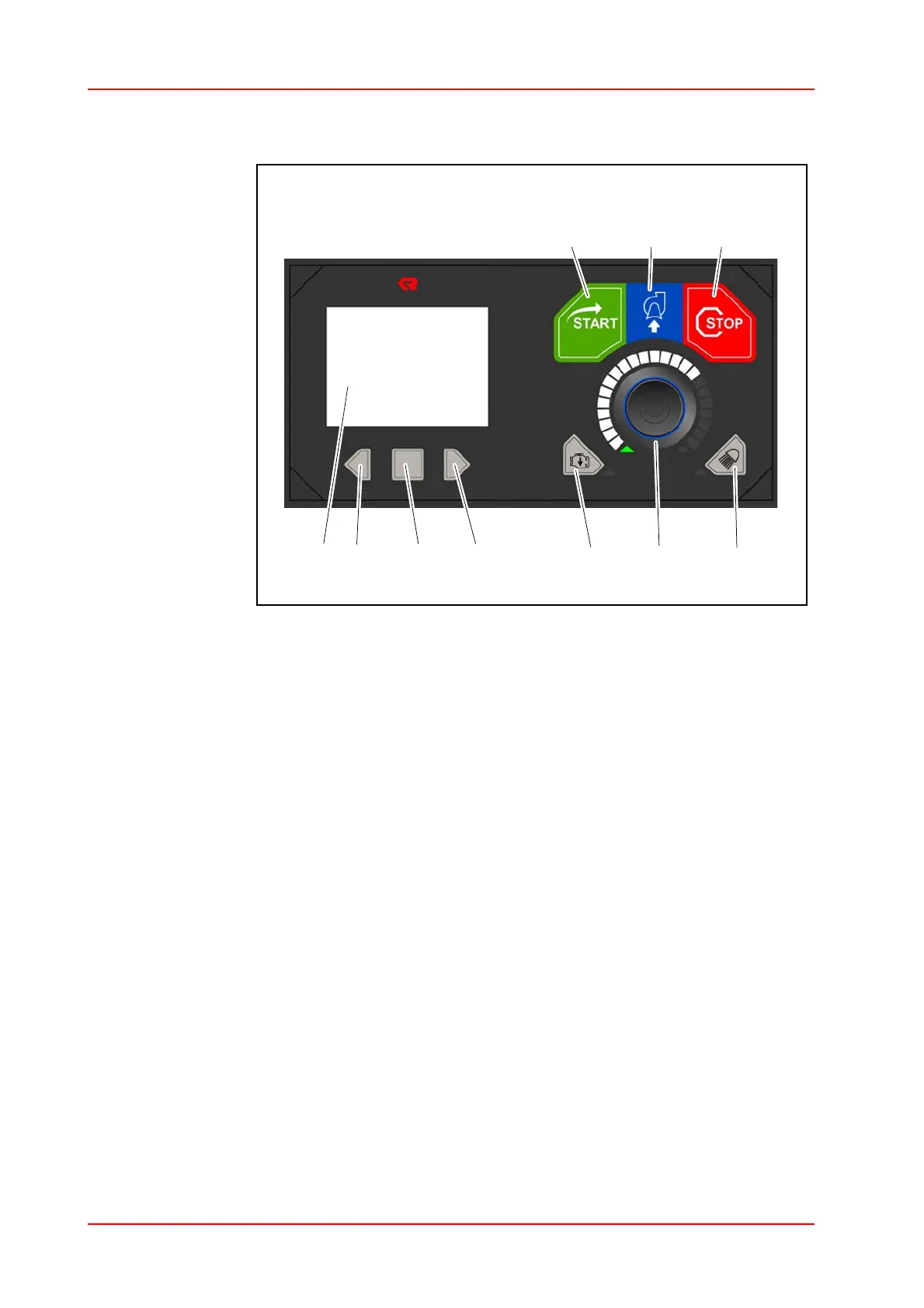

Control panel
The control panel consists of a potentiometer (S15a) and five function
switches.
The upper switches are for starting (S57) and stopping (S59). The middle
switch activates the priming pump (S3).
L1
R1
EN1
S118
S16a
S15a
S57
S59
S3
DB1

Rosenbauer FOX Specifications

General

Pump Type	Centrifugal
Max Pressure	10 bar
Type	Portable Fire Pump
Priming System	Automatic
Engine Type	4-stroke petrol engine
