Display unit pilot lamps
6.2 Display unit pilot lamps

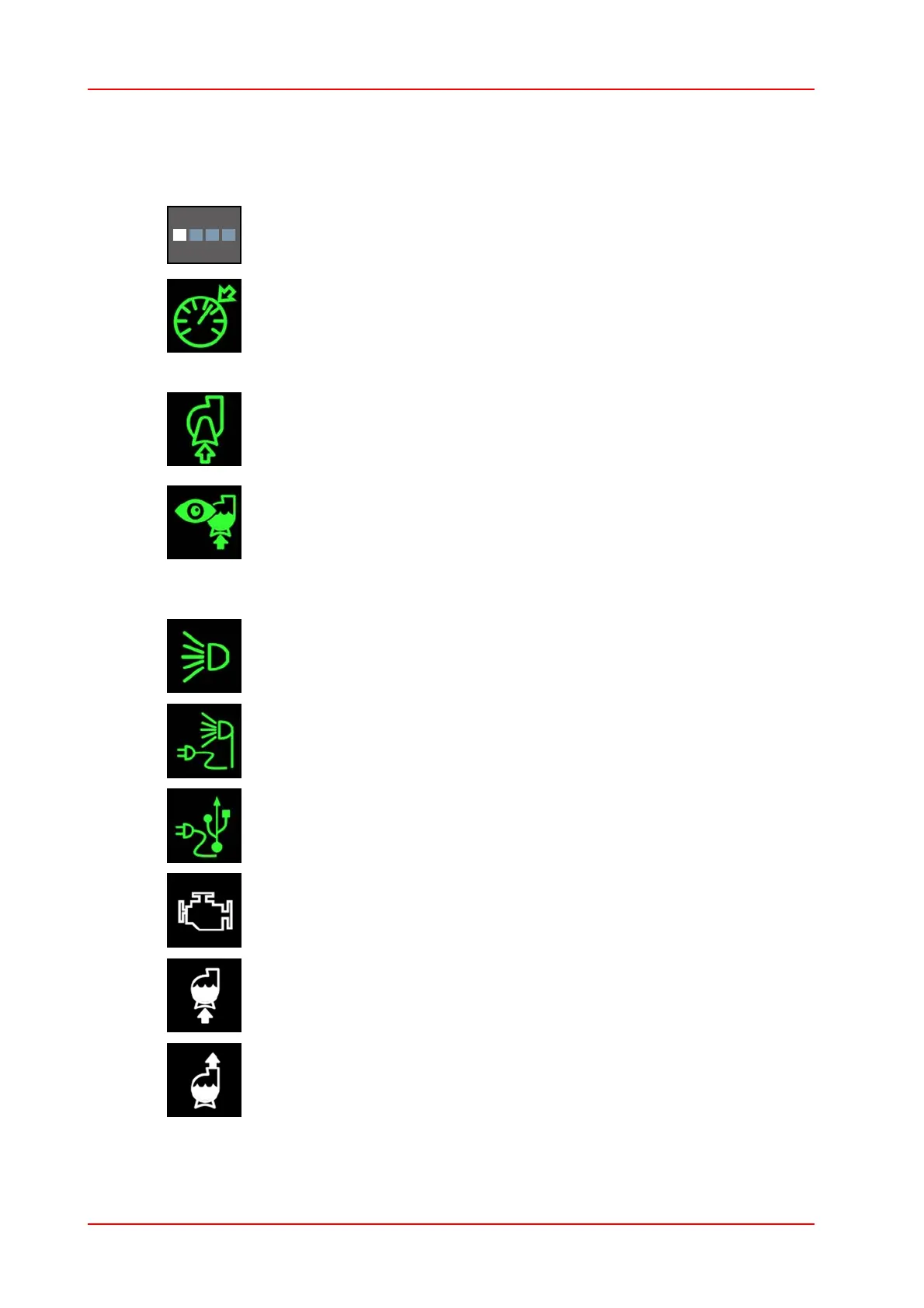

Screen page 1 - function displays
Page indicator:
The page indicator is only for orientation. It indicates the number of pages
and highlights the requested page.
Pump pressure control (optional):
The control display illuminates green when the pump pressure control is ac-
tivated, and the actual and target pressure lie within the tolerances. Should
the actual pressure deviate from the target pressure by more than 0.3 bar,
the light is illuminated orange.
Priming pump:
The control display illuminates green when the suction process has been
successfully completed (pressure > 1.5 bar). During the priming process,
the indicator illuminates orange.
Intake pressure monitoring system (optional):
The control display illuminates green when the pump pressure control is ac-
tivated, and the pressure lies above 1.5 bar for the first time on the input
side of the pump. If the intake pressure should fall below 1.5 bar in opera-
tion, the indicator illuminates orange and the discharge pressure is lowered
automatically.
Illumination:
The control display illuminates green when at least one floodlight is activat-
ed.
RLS illumination (optional):
The control display illuminates green as soon as power is available at the
socket (X108).
USB connections (optional):
The control display illuminates green as soon as power is available in the
USB socket (X93).
Engine speed:
The engine speed gauge shows the current speed of the engine. The en-
gine speed is shown in the adjacent text field.
Intake pressure (optional with pump pressure governor):
Displays the current intake pressure.
Discharge pressure (optional with pump pressure governor):
Displays the current discharge pressure.
