Technical description
40 / 97
Optional equipment
Transport wheel set
For manoeuvering and for one-man transport, the portable fire pump can
be equipped with two transport wheels.
Transport wheel set
Scope of delivery:
• 2 pcs. air-filled tyres
• 2 pcs. axle for air-filled tyres
• 2 pcs. axle bearings
• 6 pcs. roll pins
• 2 pcs. clevise pins
• 2 pcs. 400 mm accessory cord
Mounting the axle bearing during retrofitting:
► Push carrying handle (TG1) on cooler side down against spring ten-
sion and knock out both roll pins.
► Push carrying handle down, insert axle bearing and knock in both roll
pins. While doing so make sure that the hole for the clevise pin in the
axle bearing, points outwards with carrying handled folded in. The slots
of both roll pins be arranged offset approx. 180°.
Mounting the transport wheels:
► Swivel out carrying handle (TG1) on cooler side by 180°.
► Insert wheel with axle into axle bearing and secure with cotter pin.
► Tie clevise pin to carrying frame with accessory cord at a suitable
position.

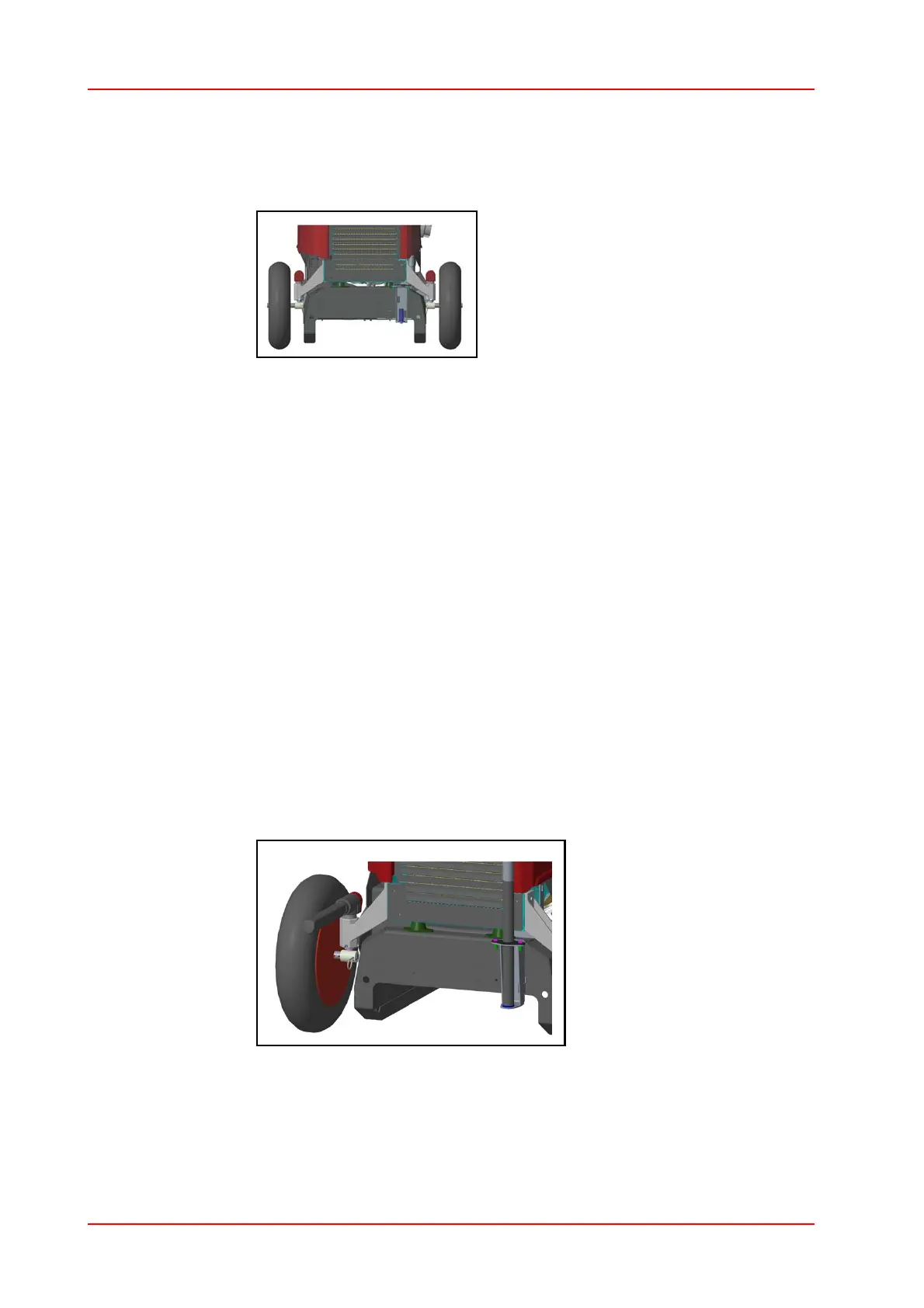

mounted transport wheel
Fuel cannister
The fuel cannister is to be used for filling the portable fire pump. It has a ca-
pacity of 20 litres. Thus, an empty tank can be completely filled with one
cannister. The fuel in the portable fuel cannister is to be changed at least
