Rosewill L600N User Manual

Forwarding – Port Forwarding
L600N - Dual Band Wireless Router
38
CONFIGURATION GUIDE

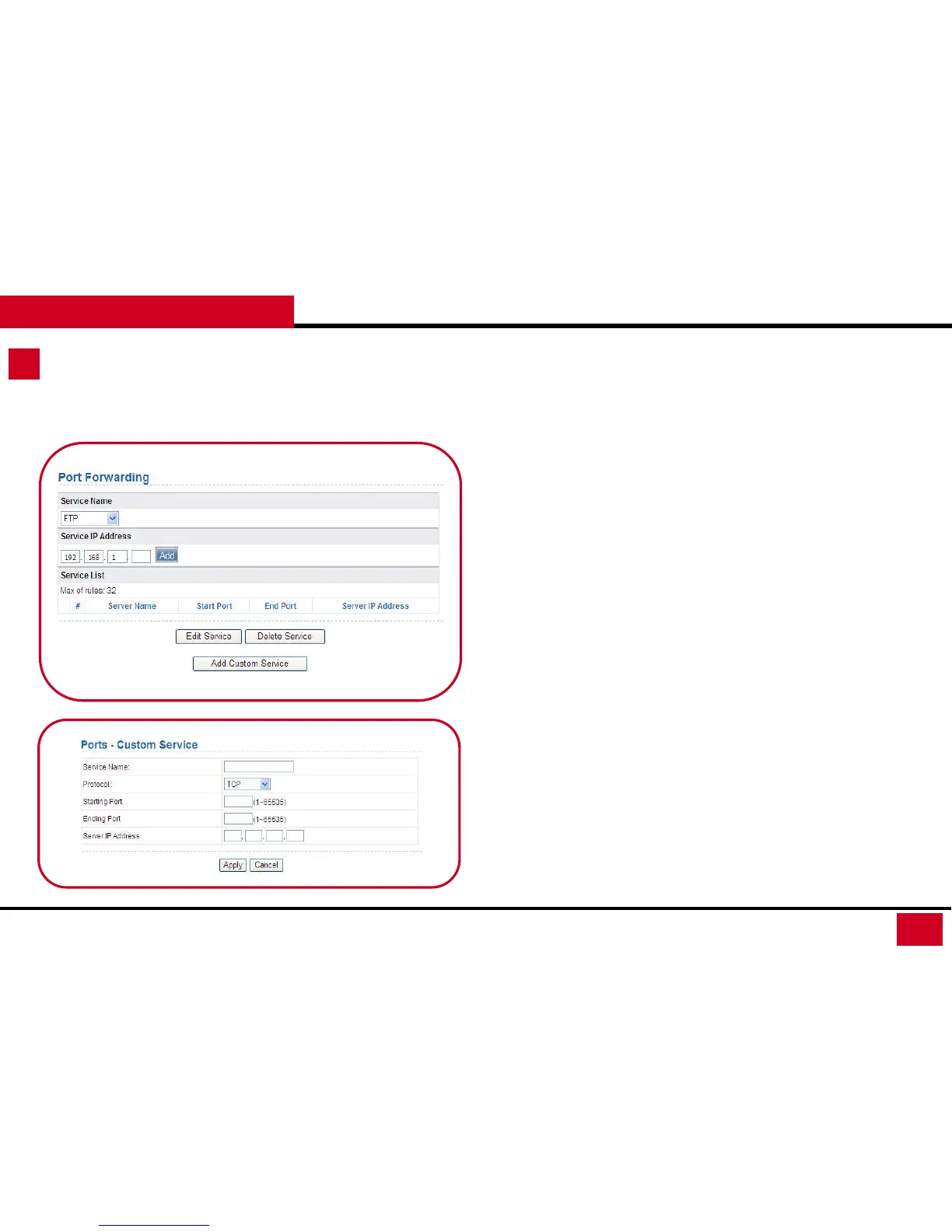

2. Port Forwarding: Port Forwarding will allow your router
knowing what network data to the assigned port.
• Service Name: Select a service type from the drop-down list.
• Service IP Address: Enter the IP address of the computer on
which the service is to be provided.
• Service List: Display the information of configured services,
including the service name, start port, end port, and server IP
address.
• Add Custom Service: If the list does not contain your desired
service, click the button to add a service.

Rosewill L600N Specifications

General

Wireless Standards	IEEE 802.11b/g/n
Frequency Band	2.4 GHz
Maximum Wireless Speed	300 Mbps
Security	64/128-bit WEP, WPA, WPA2
Antenna	2 x 5dBi Fixed Antennas
Weight	0.44 lbs
Ports	1 x 10/100M WAN, 4 x 10/100M LAN
