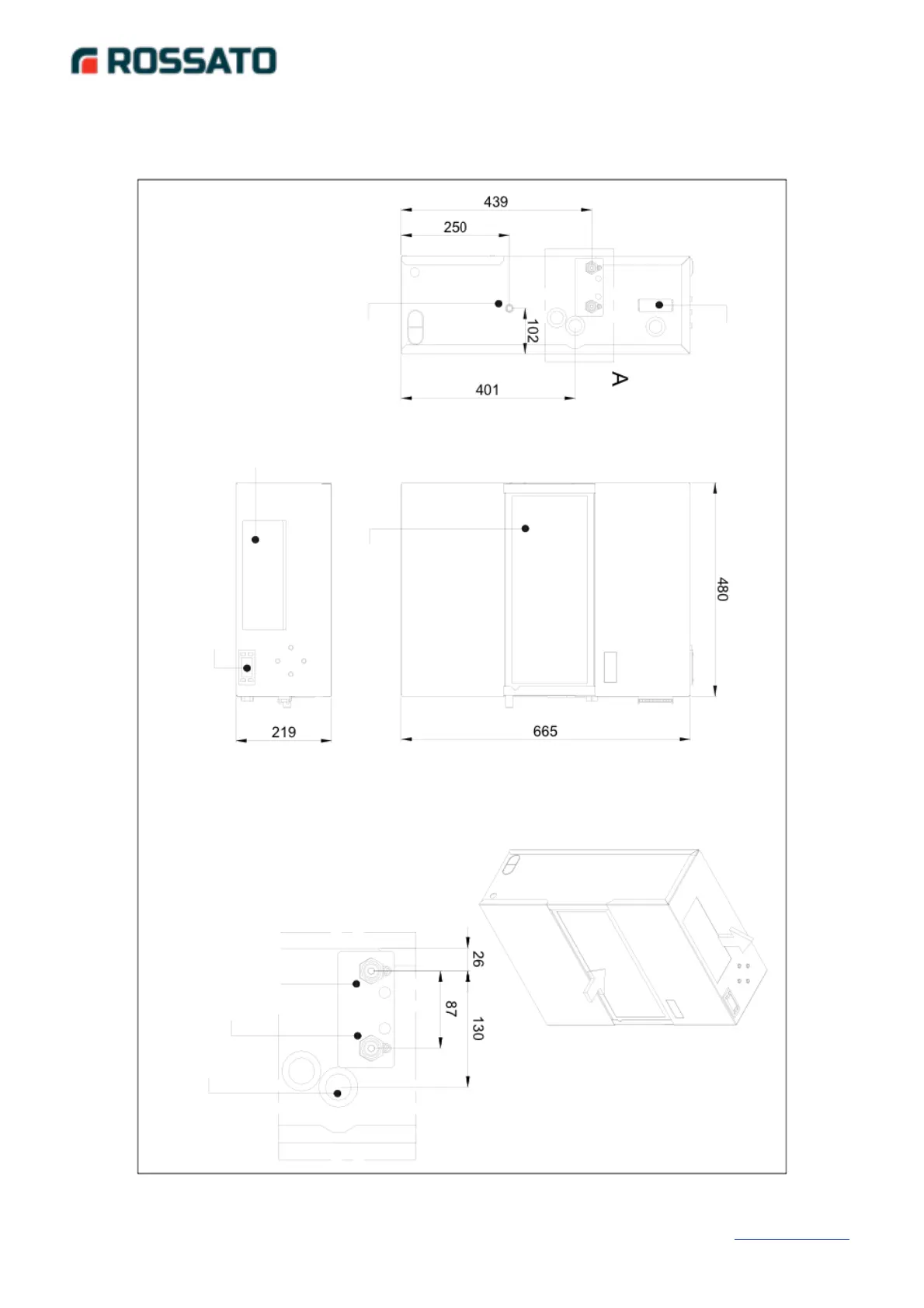

5.4.2 Vertical unit IN+, top supply
The unit leaves the factory with lateral supply; refer to the installation paragraph if requiring
upward supply.
Ecodry IN+CN+_20190801 Page  di  Rossato Group Srl24 43
Filter for air intake
Electrical supply
Control
Detail “A”
Ari inlet
Condensation discharge
IN 1/2” gf
OUT 1/2” gf (hysothermic version
OUT 1/2” gf (hybrid version)
