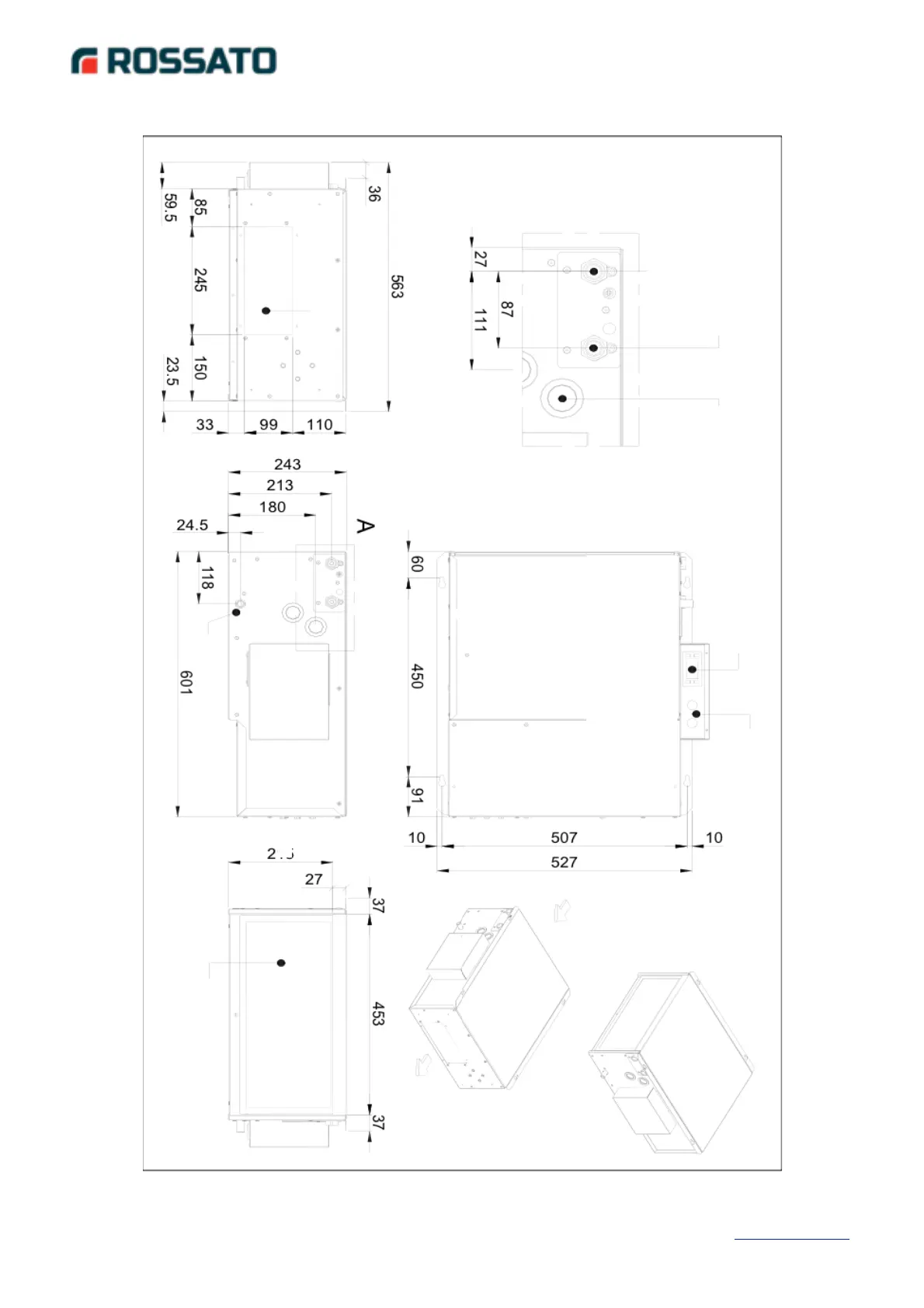

5.4.3 Unit CN+ 300 for false ceiling
Ecodry IN+CN+_20190801 Page  di  Rossato Group Srl25 43
Condensation drain
Air inlet
Electrical supply
Filter for air intake
Detail “A”
OUT 1/2” gf
(hysothermic version)
IN 1/2” gf
IN 1/2” gf
OUT 1/2” gf (hysothermic version
OUT 1/2” gf (hybrid version)
OUT 1/2” gf (hybrid version)
Control
view from downside
