To mount using a DIN rail:
1. Attach the DIN rail to a wall in the designated area.

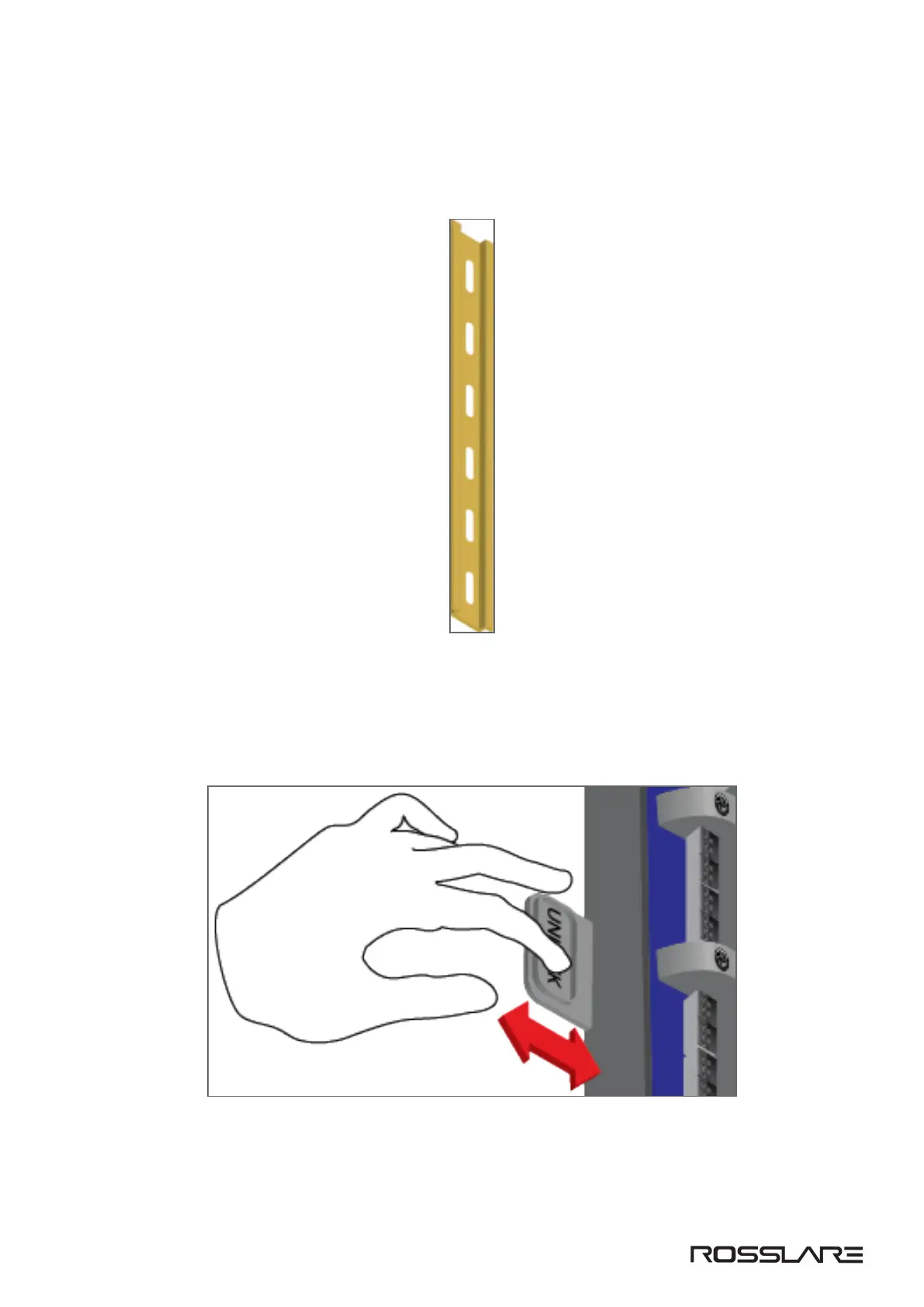

Figure 6: DIN Rail
2. Once the AC-825IP panel or extension is positioned inside the casing, pull the ‘UNLOCK’ handle on the left side of
the casing to the left.
Figure 7: Unlocking the DIN Rail Handle
