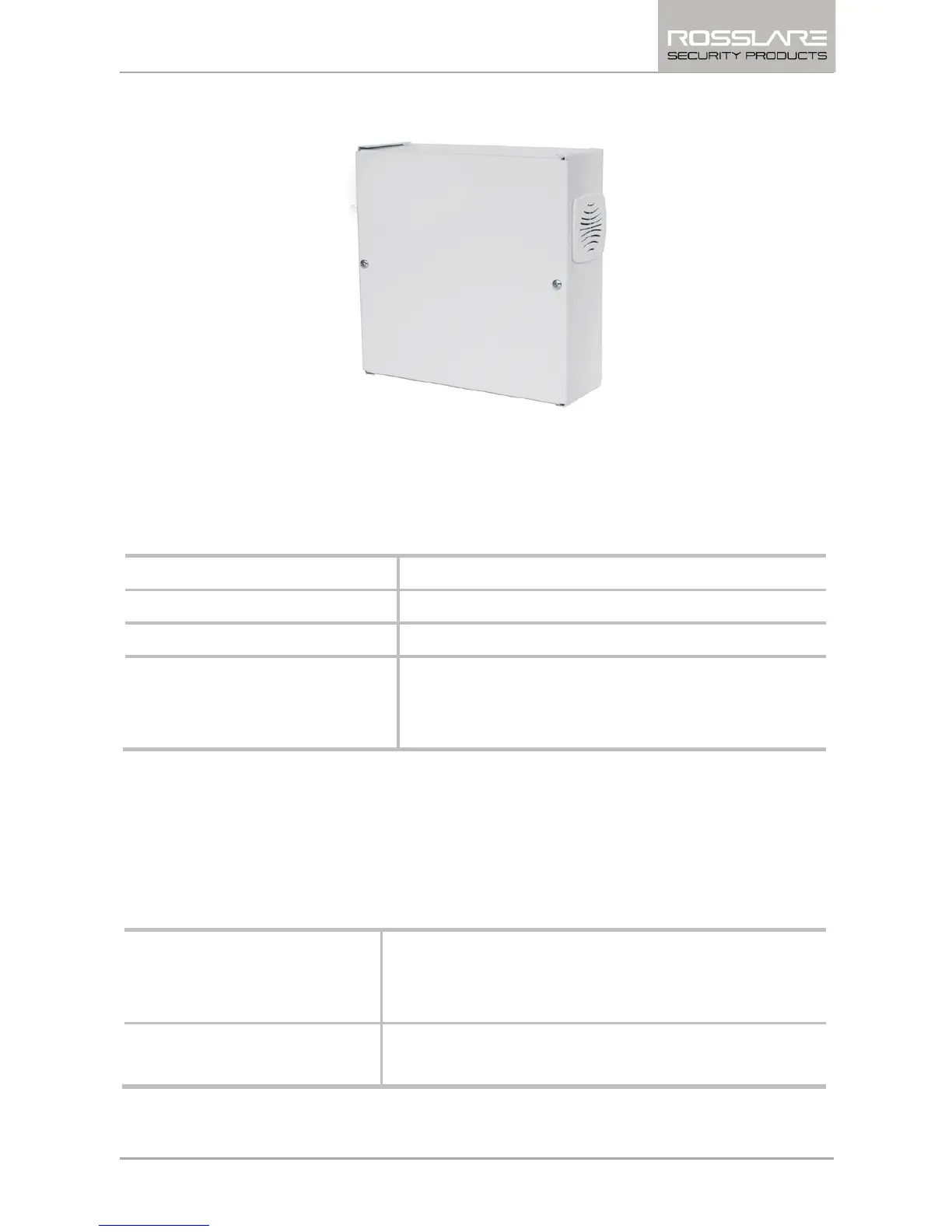

Figure 5: PS-C25T/C25TU
13.2.1 PS-C25T
The PS-C25T comes with a built-in CE approved transformer. That is
Class II Rated (double insulated) and contains thermal fuse protection.
Max: 125 C, 1A. See transformer specifications below:
Input
230 VAC ~ 60Hz, 0.14 A
Output
16 VAC ~ 1.5A, 40 VA
Certifications
CE
Compliance
A1:1998
EN 61558-1:1997
EN 61558-2-6:1997
13.2.2 PS-C25TU
The PS-C25TU is shipped without a transformer and is designed to be
powered from an external transformer. When sold in the United
States a UL approved transformer is recommended.
The enclosure weight and dimensions are provided below:
Dimensions:
Length: 225 mm (8.86”)
Width: 220 mm (8.66”)
Depth: 82 mm (3.2”)
Weight:
2.45 kg (2.7 lbs) PS-C25T
1.5 kg (3.3 lbs) PS-C25U
