Installation
12 AC-Q74 Installation and Programming Manual
4. Installation
4.1 Mounting the AC-Q74 Controller
To mount the AC-Q74 Controller:
1. Select the location to mount the AC-Q74 controller. This location
should be at shoulder height.
2. Drill holes into the back of the metal according to how you want
to mount the AC-Q74. For US Gang Box installation there are
two hole indicators on the back of the metal cover specifically
aligned for the US Gang Box (marked as ”A” in Figure 1). For a
four-screw custom installation there are four indicators on the
back (marked as B in Figure 1).

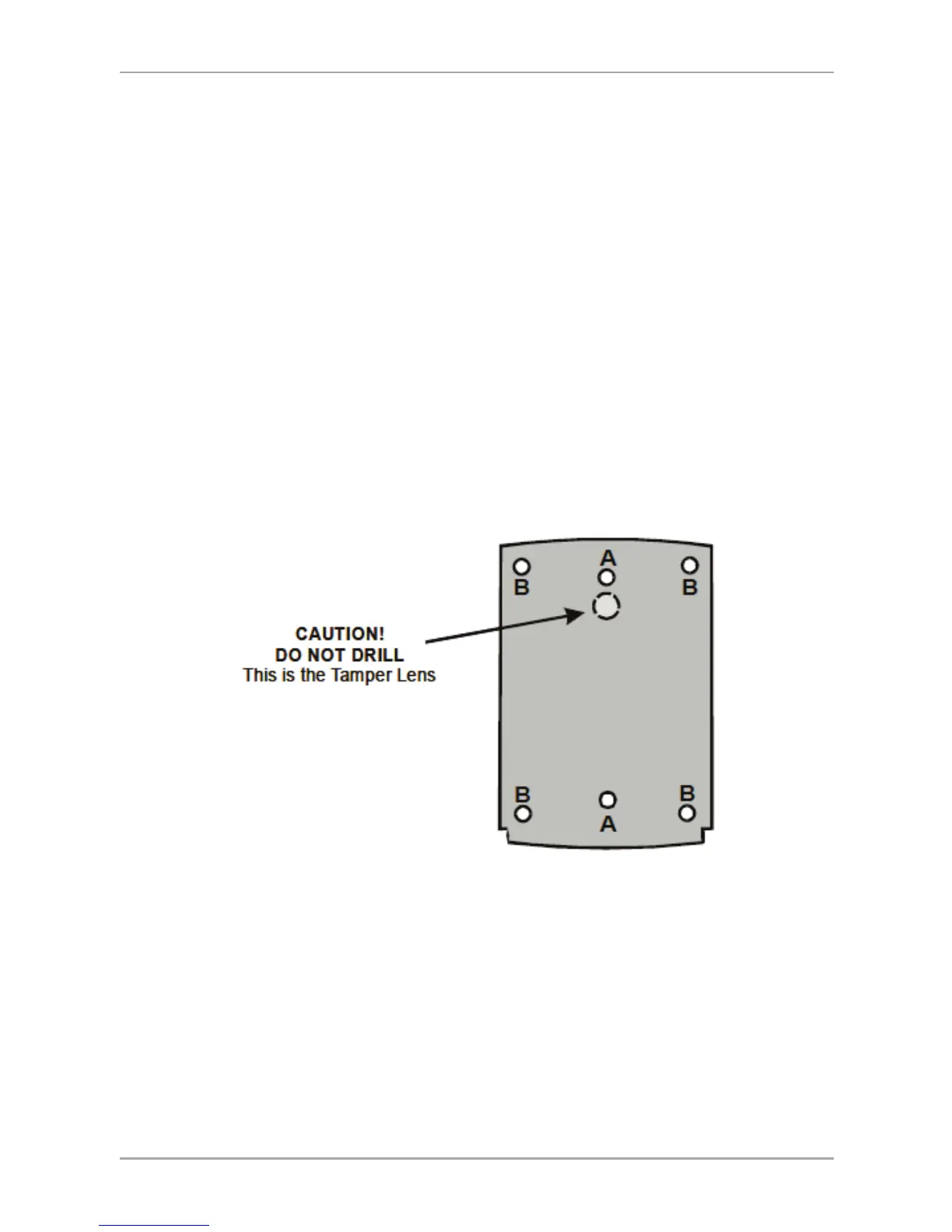

Figure 1: Drill Holes for AC-Q74 Controller
3. Screw the AC-Q74 back cover to its mounting location.
4. Wire the controller according the wiring instructions of the
following page.
5. Return the front cover of the AC-Q74 to the mounted back plate.
6. Secure the front cover by using the supplied security screw in the
Installation Kit. An L-Shaped tool is provided for use when
tightening the security screw.
