AC-Q74 Installation and Programming Manual 39
12.4 Mechanical Specifications
Weight
59 grams (0.11 lbs)
Dimensions
Length: 77 mm (3.0 in.)
Width: 57 mm (2.2 in.)
Depth: 33 mm (1.3 in.)
12.5 Wiring Recommendations
 Maximum distance between the Controller and the PC-25T is 50
m (150 ft)
 Lock wiring should be 20 Gage
 Communication wiring (C1 & C2) should be twisted Pair, 22
Gage, shielded or unshielded.
12.6 PCB Mounting Dimensions
Dimensions for PCB mounting holes are provided in Figure 3:

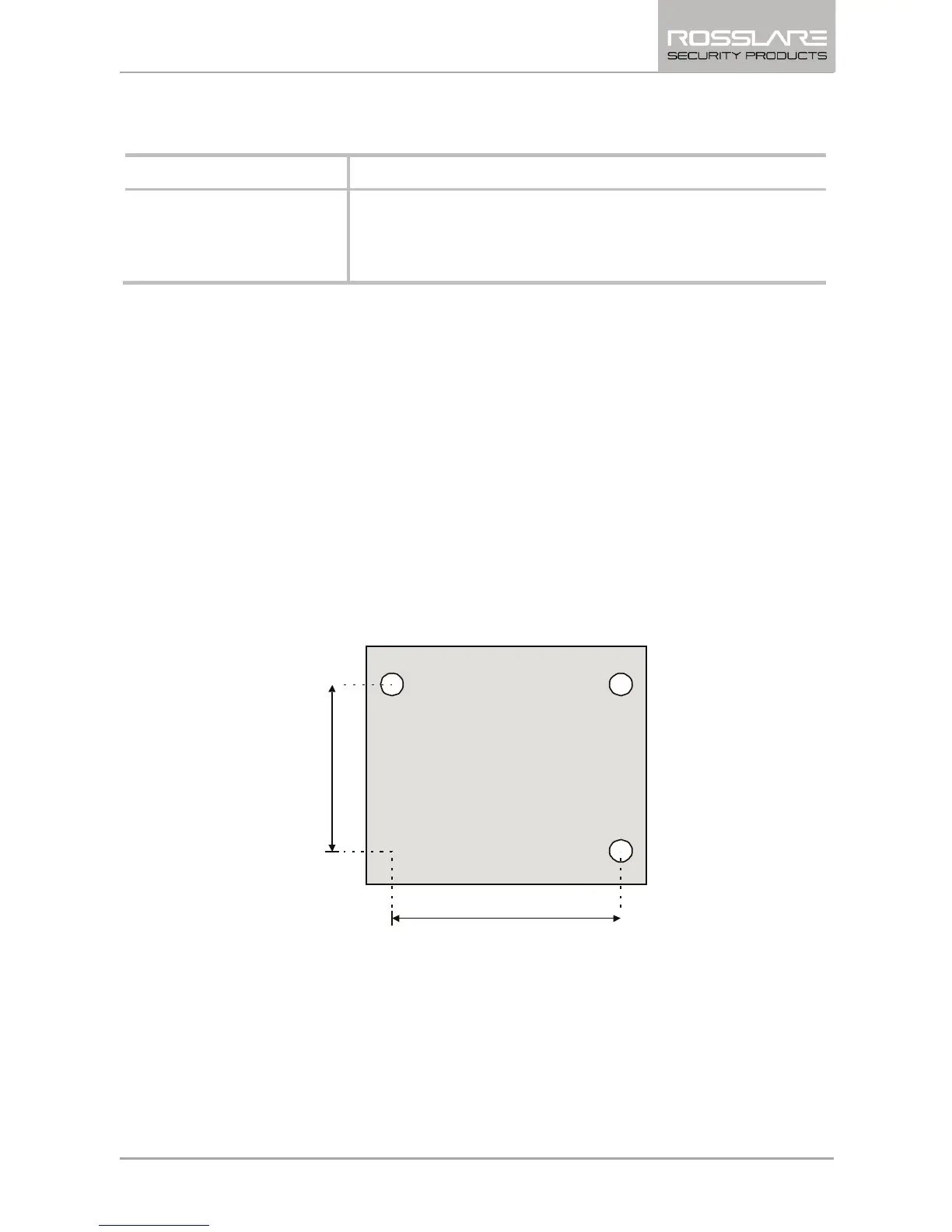

Figure 3: Dimensions for PCB Mounting
66mm (2.6”)
46mm (1.8”)
