12 AC-x32 Series Installation and Programming Manual
3. Installation
Installation of an RFID reader adjacent to metallic surfaces
might alter the reader’s specifications. To diminish this
interference, use a plastic spacer when mounting the reader.
3.1 Mounting
Before starting, select the location to mount the controller. This
location should be at shoulder height and on the same side as the
door handle.
The AC-x32 is designed to be easily mounted onto a US Gang Box.
1. Peel off the back of the self-adhesive mounting label template
and place it on the required mounting location.
2. At the bottom of the unit’s case, remove the screw.
3. Carefully remove the snap-off front cover of the unit to reveal the
screw holes.
4. Screw the controller onto a US Gang Box through the two
mounting holes provided (see Figure 1, Figure 2, and Figure 3).

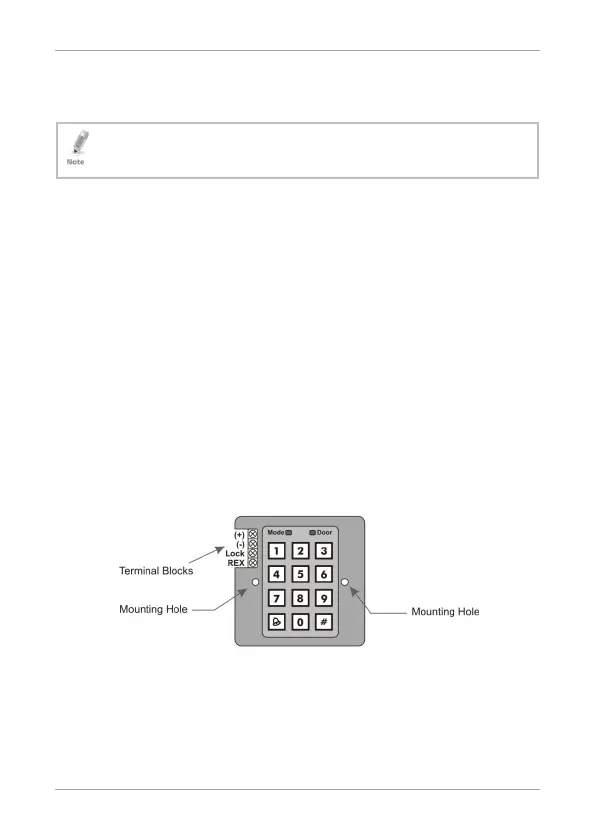

Figure 1: AC-B32 – Mounting Holes and Terminal Blocks
