7.11.2 ADJUSTMENT OF SAFETY HEIGHT LIMIT SWITCH

Screen the photocell (if the lift is in hole, raise the lift up to an height of about 150 mm) by pressing

UP button (7): the lift will raise and stop at the safety height (about 400 mm).

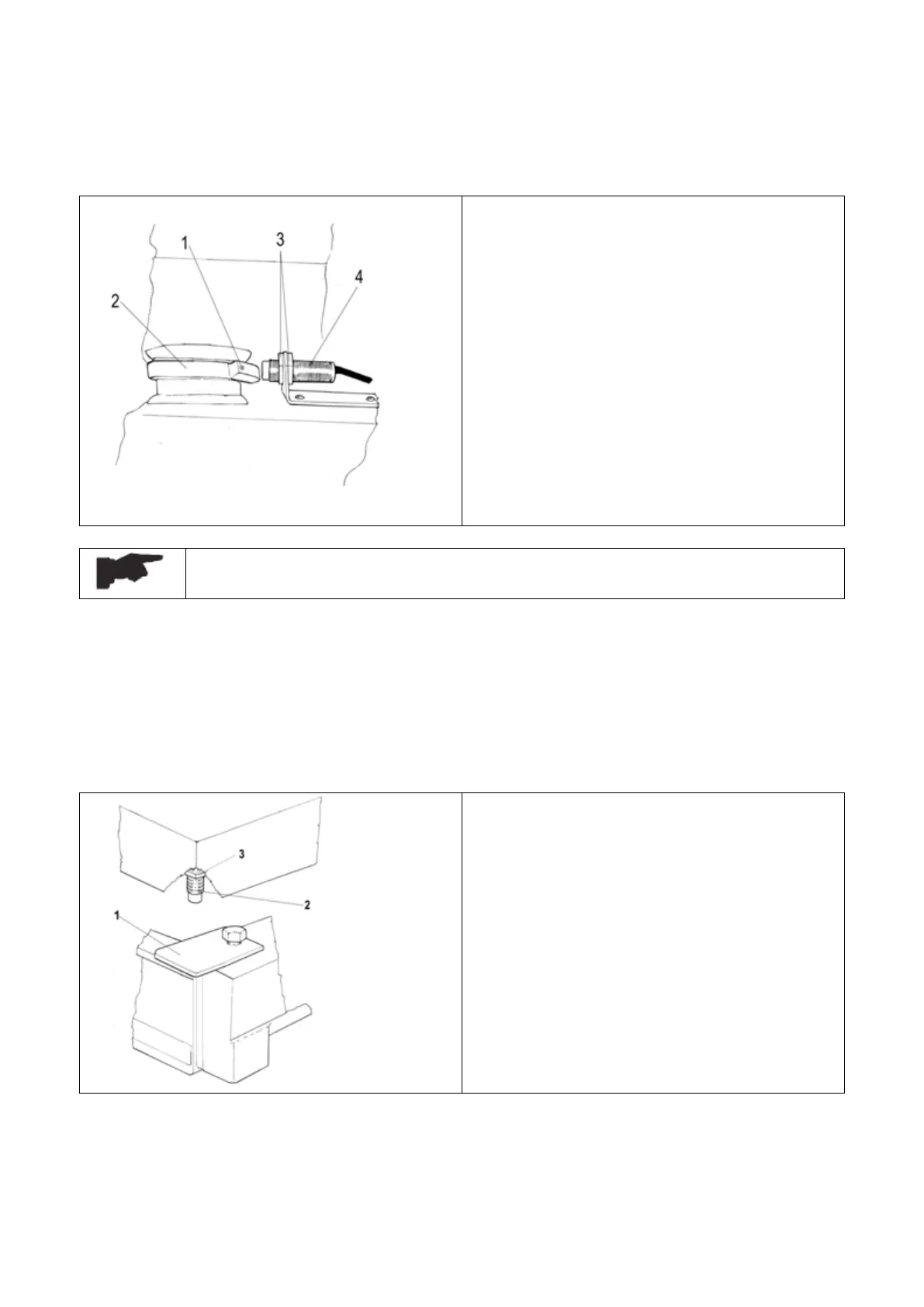

Fig. 28

If this has not happened, adjust the limit switch

as follows:

 By pressing Up button (7), raise the lift

to a height of 400 mm;

 Loosen dowels (1) which lock the cam

(2) between the arms of platform P1;

 Turn the cam (2) until the limit switch

detects it

 Tighten the dowels (1) properly

In case the limit switch does not detect the cam ,

adjust it as follow:

 Loosen nuts (3) and move the sensor (4)

towards the cam (2) at a distance of 1 to

3 mm.

 Tighten nuts (3);

N.B. PLATFORMS CANNOT BE AUTOLEVELED IF THE SAFETY HEIGHT

LIMIT SWITCH IS NOT PROPERLY ADJUSTED.

7.11.3 ADJUSTMENT OF PLATFORM AUTO-LEVELING LIMIT SWITCH

With the lift on the ground, press the safety UP button, and hold it pressed to verify , on th eprnted

circuit board, the proper operation of relay K4, if the correspondent light is switched on the auto-

leveling sensor of platform P2 works properly.

With the lift in lowest position ,press final lowering button, and check on printed circuit board the

relay K4 works properly. f the correspondent led is switched on the auto leveling sensor of platform

P1 works properly

Fig. 29

If this has not happened, adjust the limit switch

as follows:

 verify the steel sheet (1) orientation with

the limit switch (3);

 loosen the nuts (3) of the proximity pick

up (2) and adjust it at a distance between

1 and 3 mm from the lamination (1);

 tighten nuts (3).
