INSTRUCTION, USE AND
MAINTENANCE MANUAL

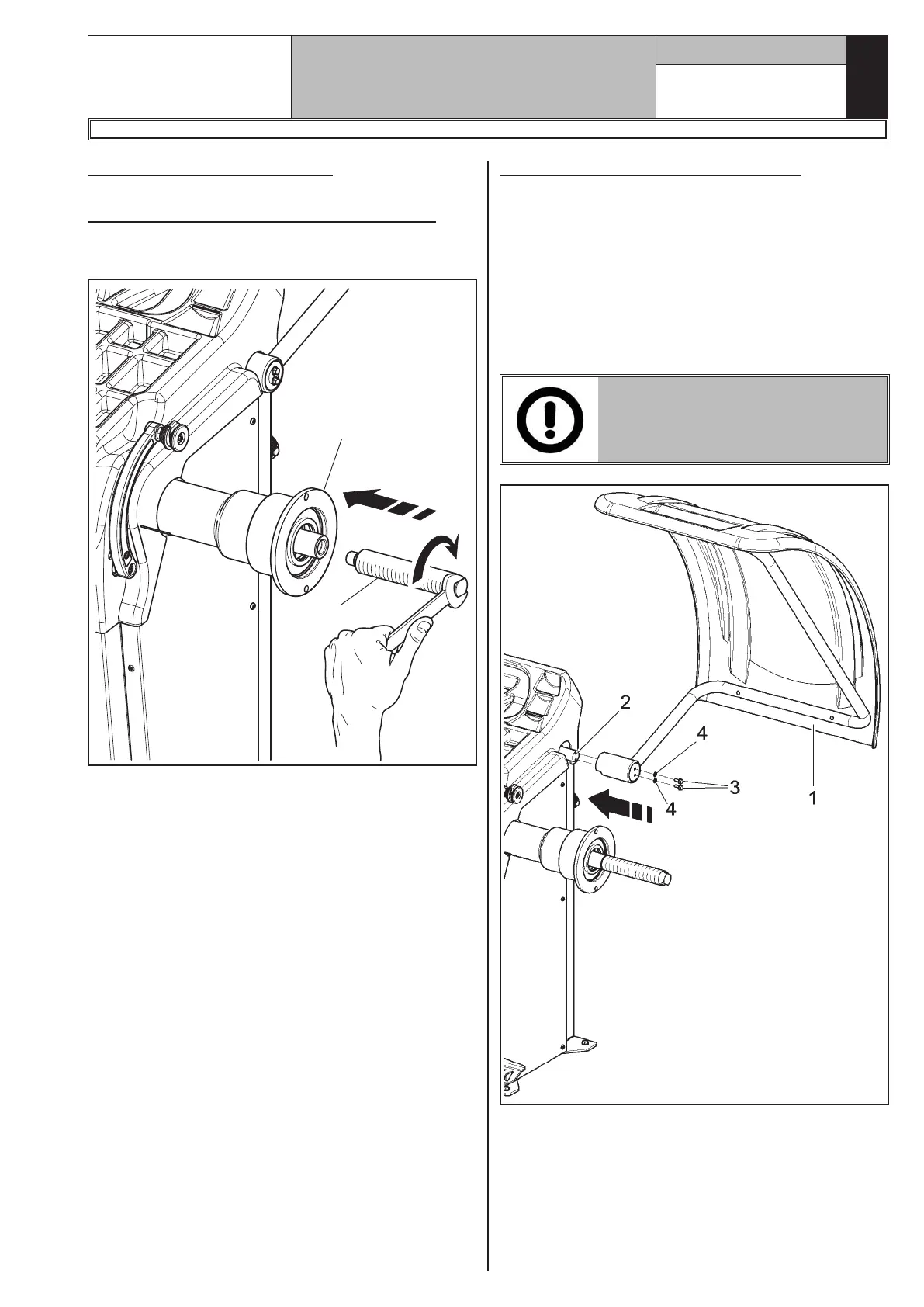

9.3 Assembly procedures
9.3.1 Fitting the mandrel on the flange
Screw the mandrel with an Allen wrench (Fig. 6 ref. 1)
on the flange (Fig. 6 ref. 2).
1
2
Fig. 6
9.3.2 Fitting the protection guard
1. Mount the protection guard (Fig. 7 ref. 1) to the
support (Fig. 7 ref. 2) using the screws (Fig. 7
ref. 3), interposing the Belleville washers (Fig. 7
ref. 4).
2. Tighten the screws (Fig. 7 ref. 3) in order to make
the guard (Fig. 7 ref. 1) lift or lower without
bumping against the limit switch. Carry out the
adjustment so that it's possible to manually guide
the guard both during closing and opening.
DURING GUARD'S ASSEMBLY,
PAY ATTENTION TO THE MICRO
PLACED INSIDE THE MACHINE.
Fig. 7
1297-M008-8
