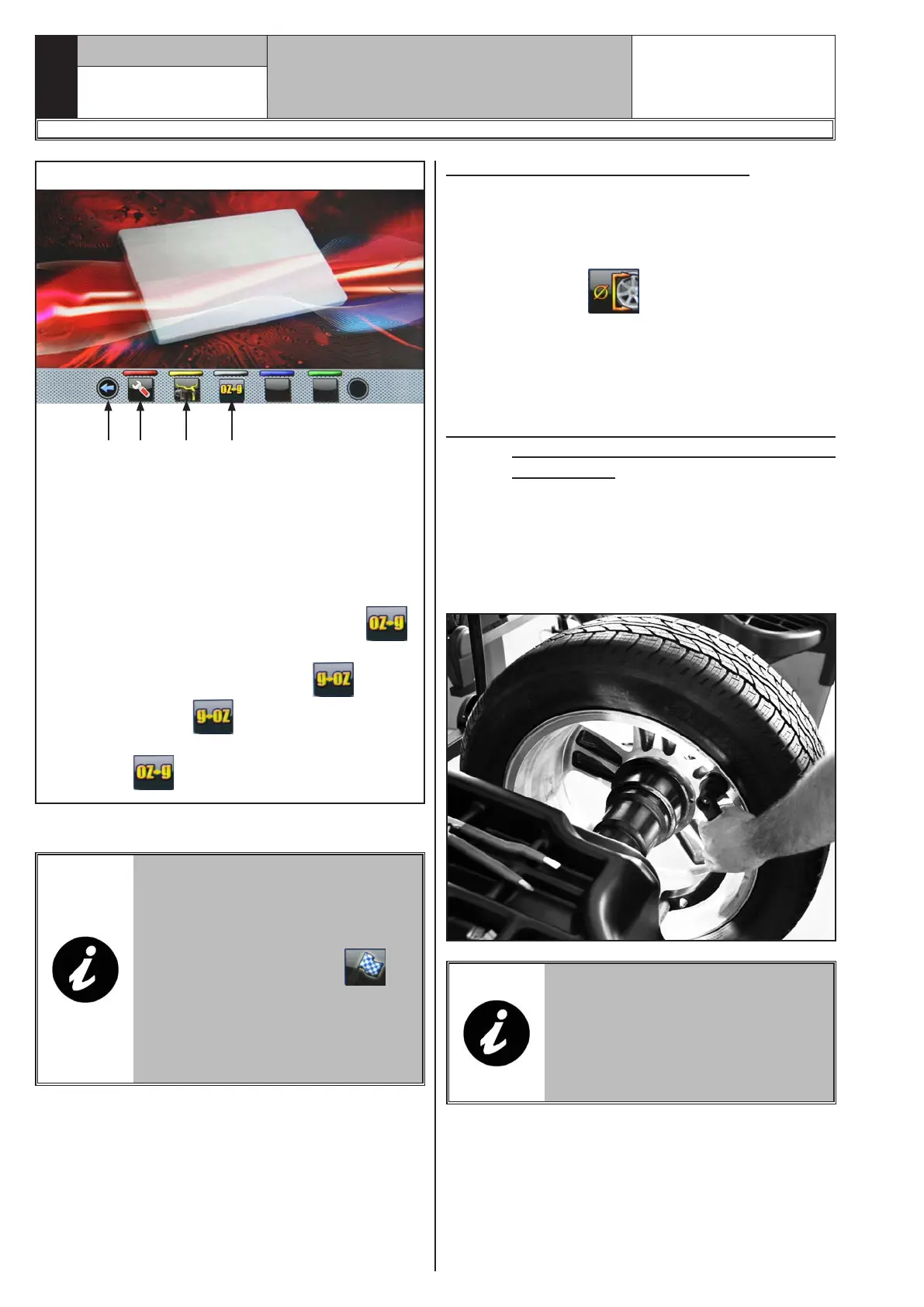

Fig. 24
KEY
1 – User menu
2 – Run-out menu (visible only if the machine is fit
or if Run-out device is enabled)
3 – Return to previous page
4 – Unit of measurement modification.
The machine is set to perform the weight meas-
urements in ounces. Press the button
to set the measurement in grams and on the
screen will be displayed the icon .
Press the button to set the measurement
in ounces and on the screen will be displayed
the icon .
1 23 4
In order to turn off the machine, simply press the "OFF"
switch (Fig. 17 ref. 1).
WHEN THE EQUIPMENT IS
TURNED OFF LOSES ALL THE
MEASUREMENTS AND THE
STORED DATA (SIZE, SPINS, US-
ERS, ETC ...). AT RESTARTING,
PRESSING THE BUTTON (IN
THE CASE HAVE NOT YET BEEN
STORED ON THE NEW MEASURES
AFTER THE SWITCHING ON), THE
MACHINE DOES NOT PERFORM
ANY OPERATION.
13.2 Balancing programs setting
The setting of the balancing programs can be per-
formed in two ways:
- through the gauge arm (rapid setting);
- through “Measurement being acquired” screen, ap-
pearing when the button is pressed (Fig. 23
ref. 1).
The setting modes are completely different even if
they allow to reach the same result (but with different
times).
13.2.1 Programs rapid setting and meas-
urements through distance-diameter
caliper arm
The use of the distance-diameter caliper arm allows
the rapid automatic wheel balancing program and the
measures entry. From page “Home”:
- bring into contact the weights fitting gripper with
the inner part of the rim (1 contact only) to select
"STATIC" program (see Fig. 25).
Fig. 25
REPEATEDLY BRINGING THE
GAUGE'S ARM (FIG. 26 REF. 1) IN
CONTACT WITH THE MANDREL
(FIG. 26 REF. 2), THE PROGRAM
WILL CYCLE FROM "STATIC" TO
"STATIC 1" TO "STATIC 2" THEN
RETURNING TO THE BEGINNING.
1297-M008-8
