GB
Page 18 of 57
INSTRUCTION, USE AND
MAINTENANCE MANUAL
FAILURE TO OBSERVE THE ABOVE
INSTRUCTIONS WILL IMMEDIATE-
LY INVALIDATE THE WARRANTY.
10.1 Electrical checks
BEFORE STARTING UP THE
WHEEL-BALANCER, BE SURE TO
BECOME FAMILIAR WITH THE LO-
CATION AND OPERATION OF ALL
CONTROLS AND CHECK THEIR
PROPER OPERATION (SEE PAR.
“CONTROLS”).
CARRY OUT A DAILY CHECK OF
MAINTAINED-TYPE CONTROLS
CORRECT FUNCTIONING, BEFORE
STARTING MACHINE OPERATION.

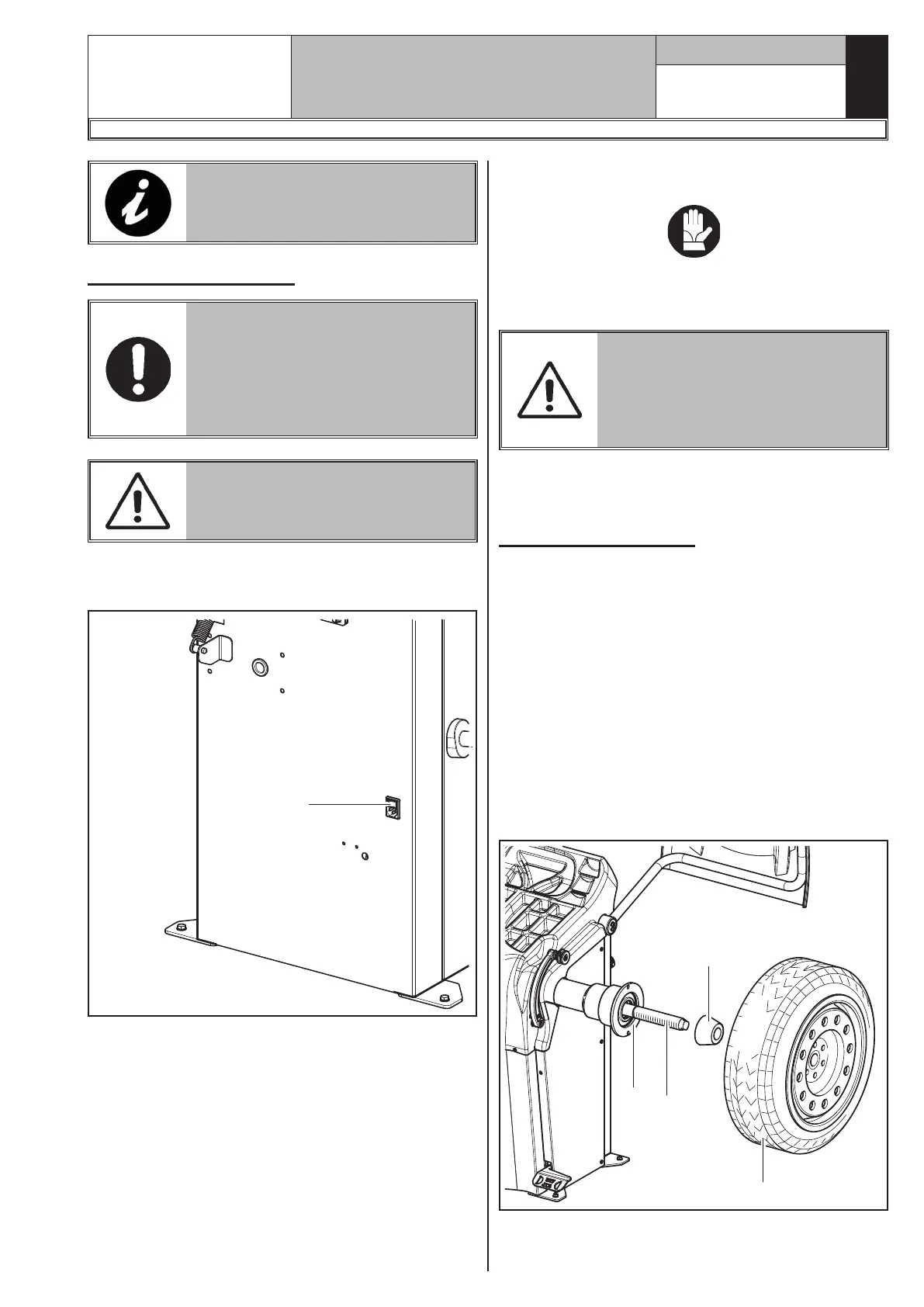

Once the plug/socket connection has been made, turn
on the machine using the master switch (Fig. 17
ref. 1).
1
Fig. 17
11.0 FITTING THE WHEEL ON THE MAN-
DREL
To achieve perfect balancing, the wheel must be care-
fully and properly fitted on the mandrel. Imperfect
centring will inevitably cause unbalances.
WHAT IS MOST IMPORTANT IS
THAT ORIGINAL CONES AND
ACCESSORIES, SPECIALLY DE-
SIGNED TO BE EMPLOYED WITH
THE WHEEL BALANCERS, ARE
USED.
Wheel fitting using the cones provided is illustrated be-
low. For alternative fittings, using optional accessories,
refer to the special instructions provided separately.
11.1 Wheel assembly
1. Remove any type of foreign body from the wheel
(Fig. 18 ref. 3): pre-existing weights, stones and
mud, and make sure the mandrel (Fig. 18 ref. 1)
and the rim centring area are clean before fitting
the wheel on the mandrel.
2. Carefully choose the cone (Fig. 18 ref. 2) most suit-
able for the wheel to be balanced. These accessories
must be selected according to the shape of the rim.
Position the wheel (Fig. 18 ref. 3), fitting the cone
(Fig. 18 ref. 2) on the mandrel (Fig. 18 ref. 1): be
careful (otherwise this could seize) until this rests
against the support flange (Fig. 18 ref. 4).
3. Fit the wheel with the inner side of the rim towards
the wheel balancer and against the cone.
1
2
3
4
Fig. 18
1297-M008-8
