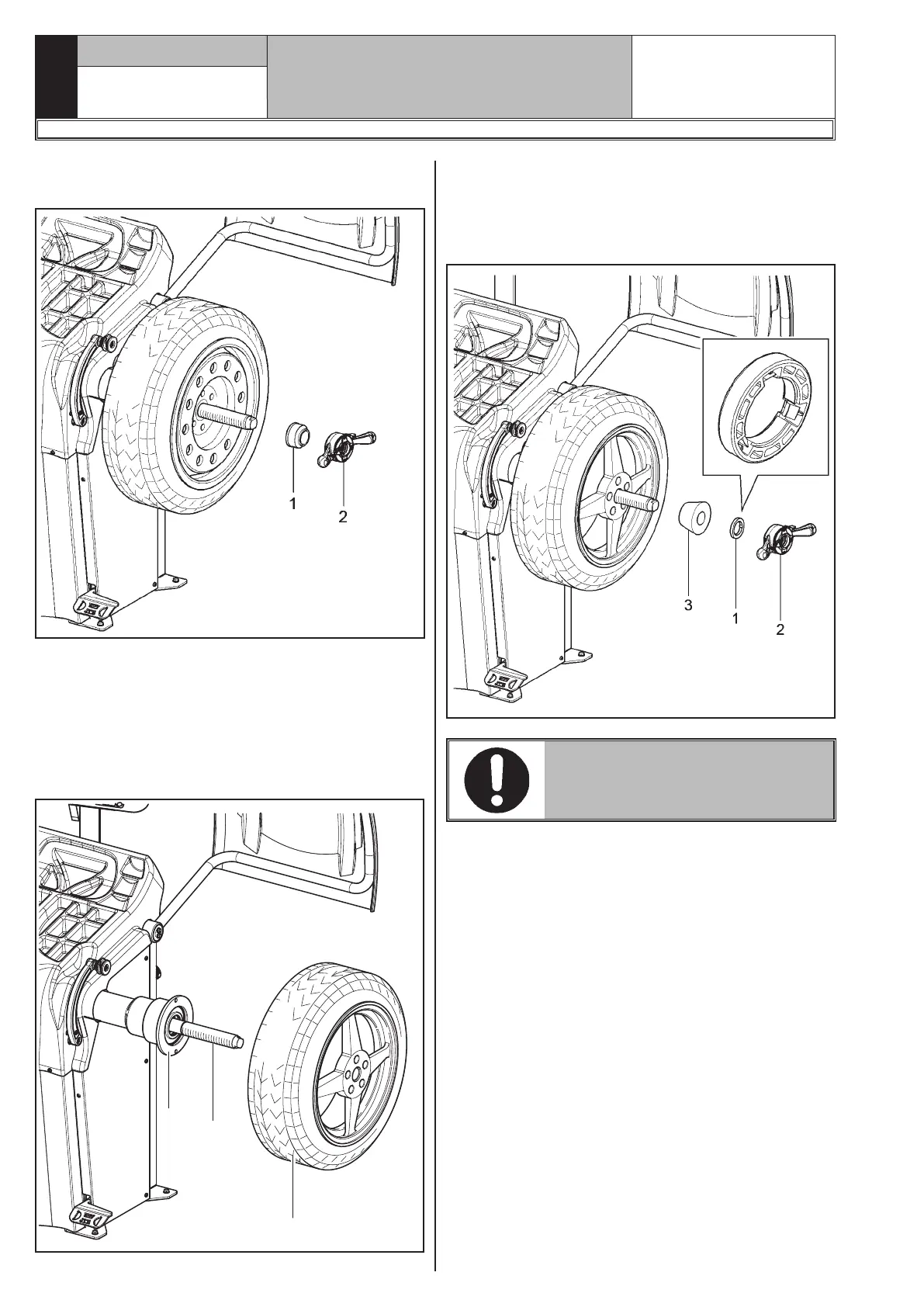

4. Fit the protection cap (Fig. 19 ref. 1) in the locknut
(Fig. 19 ref. 2) and fasten against the wheel.
Fig. 19
Some aluminium wheels, with very high centring,
must be fitted with the cone outside the wheel.
5. Clean the mandrel (Fig. 20 ref. 1) before fitting
the wheel.
6. Fit the wheel (Fig. 20 ref. 3) with the inside of the
rim towards the wheel balancer, until the wheel is
up against the support flange (Fig. 20 ref. 2).
1
2
3
Fig. 20
7. Fit the cone (Fig. 21 ref. 3) with the narrowest part
turned towards the wheel.
8. Fit the pressure ring (Fig. 21 ref. 1) in the nut
(Fig. 21 ref. 2) and fasten the cone (Fig. 21
ref. 3).
Fig. 21
THE PRESSURE RING (FIG. 21
REF. 1) MUST BE MOUNTED WITH
THE TEETH SIDE TOWARDS THE
RING NUT (FIG. 21 REF. 2).
