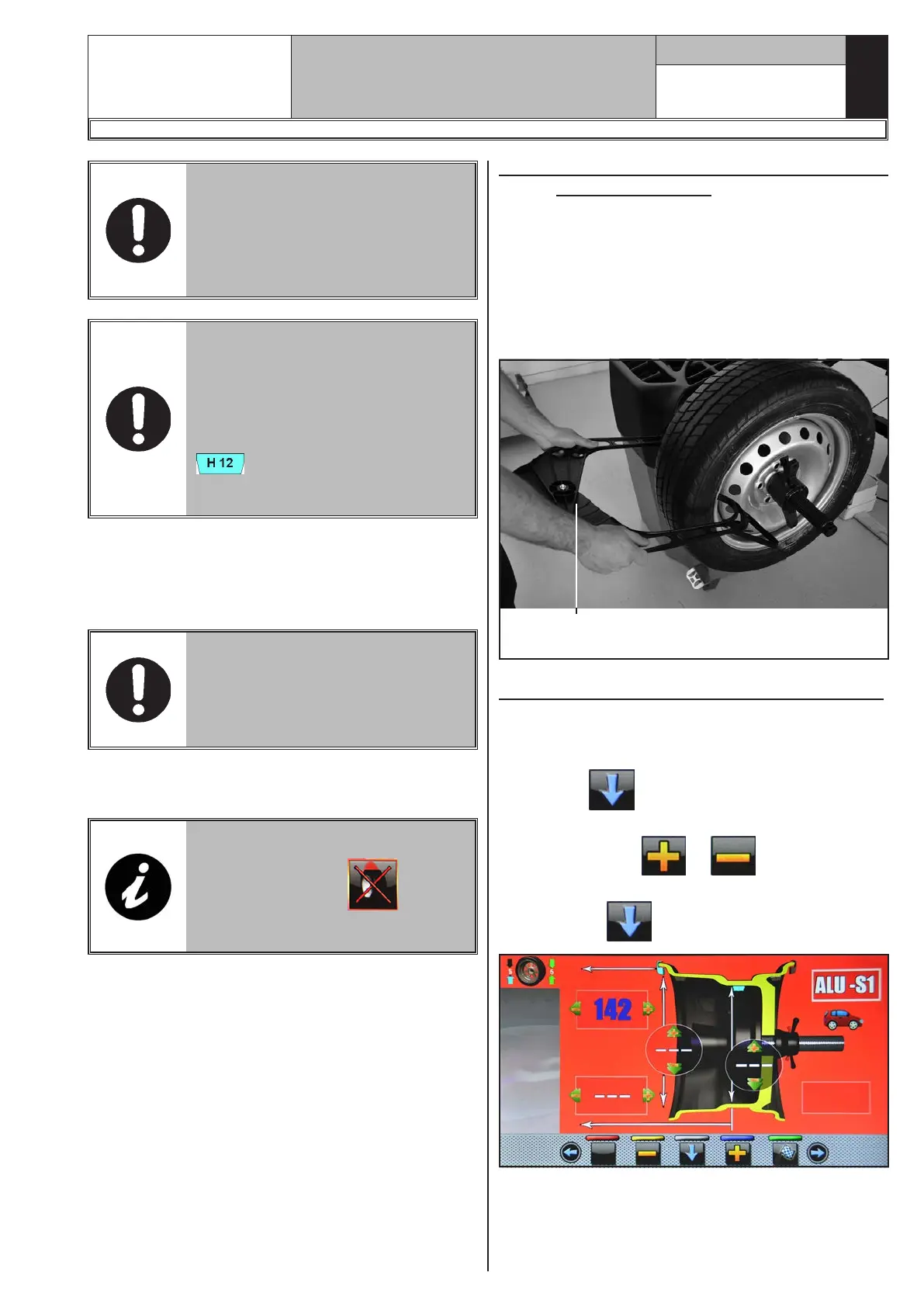

GB
Page 30 of 57
INSTRUCTION, USE AND
MAINTENANCE MANUAL
TO USE THIS WEIGHT APPLICA-
TION MODE THE OPERATOR
MUST REMEMBER THE PRECISE
POINT WHERE THE MEASURE-
MENT WAS TAKEN WITH THE
DISTANCE-DIAMETER CALIPER
ARM.
USING THIS MODE, THE MACHINE
ALLOWS YOU TO APPLY ANY AD-
HESIVE WEIGHTS THAT WOULD
BE APPLIED TO "12 HOURS" TO
"6 O'CLOCK". IF, AFTER YOU EN-
ABLE THIS MODE, ON BALANCING
PROGRAM APPEARED AGAIN THE
ICON (ONLY IN THIS CASE)
THE ADHESIVE WEIGHT WILL BE
APPLIED TO "12 HOURS".
At the end of the spin, the wheel stops in place to
apply the weight at "6 o'clock". The positioning of
the weight (s) in depth shall be at the discretion of
the operator, depending on where remembers taking
the measure.
BE SURE TO APPLY THE (INTER-
NAL OR EXTERNAL) WEIGHT AS
INDICATED BY THE 2 GREEN
ARROWS (Fig. 34 ref. 2 or 3) ON
THE CORRESPONDING MONITOR
SCREEN.
• Weights fitting at “12 o'clock” (with the use of
laser) (optional).
TO USE THIS MODE, IT IS NECES-
SARY THAT THE RELEVANT FUNC-
TION IS ENABLED
ON THE
MENU "OPTIONS" DESCRIBED IN
PAR. 14.1.
This function indicates, through the 2 laser pointers
placed on the machine (frame and wheel cover), the
centre line position (at “12 o'clock”) of the counter-
weight in the programs that require the clip weights
(ex: dynamic) for the wheel balancing.
Therefore, at the end of the measuring cycle, when the
wheel stops in position to fit the clip weight (green ar-
rows an the screen), the laser corresponding to the side
to balance turns on, projecting a line onto the rim edge.
13.6 Use of machines with disabled auto-
matic data gauge
The entry of diameter, width and distance measures
of the machine rim must be performed manually. The
reading of these measures can be made as follows:
- visual readout on caliper graduated scale (distance);
- values readout on rim (diameter and width);
- width value detection with manual caliper (width)
(see Fig. 35).
Fig. 35
MANUAL CALIPER.
Width manual detection
13.6.1 Manual setting of wheel dimensions
In case the operator wants to edit and/or manually
enter the wheel dimensions, proceed as follows:
- from the desired measurement mode screen, press
the button
until highlighting with blue the field
to modify/edit;
- press the buttons
or until reaching the
desired value;
- press button
to shift to the next value.
1297-M008-8
