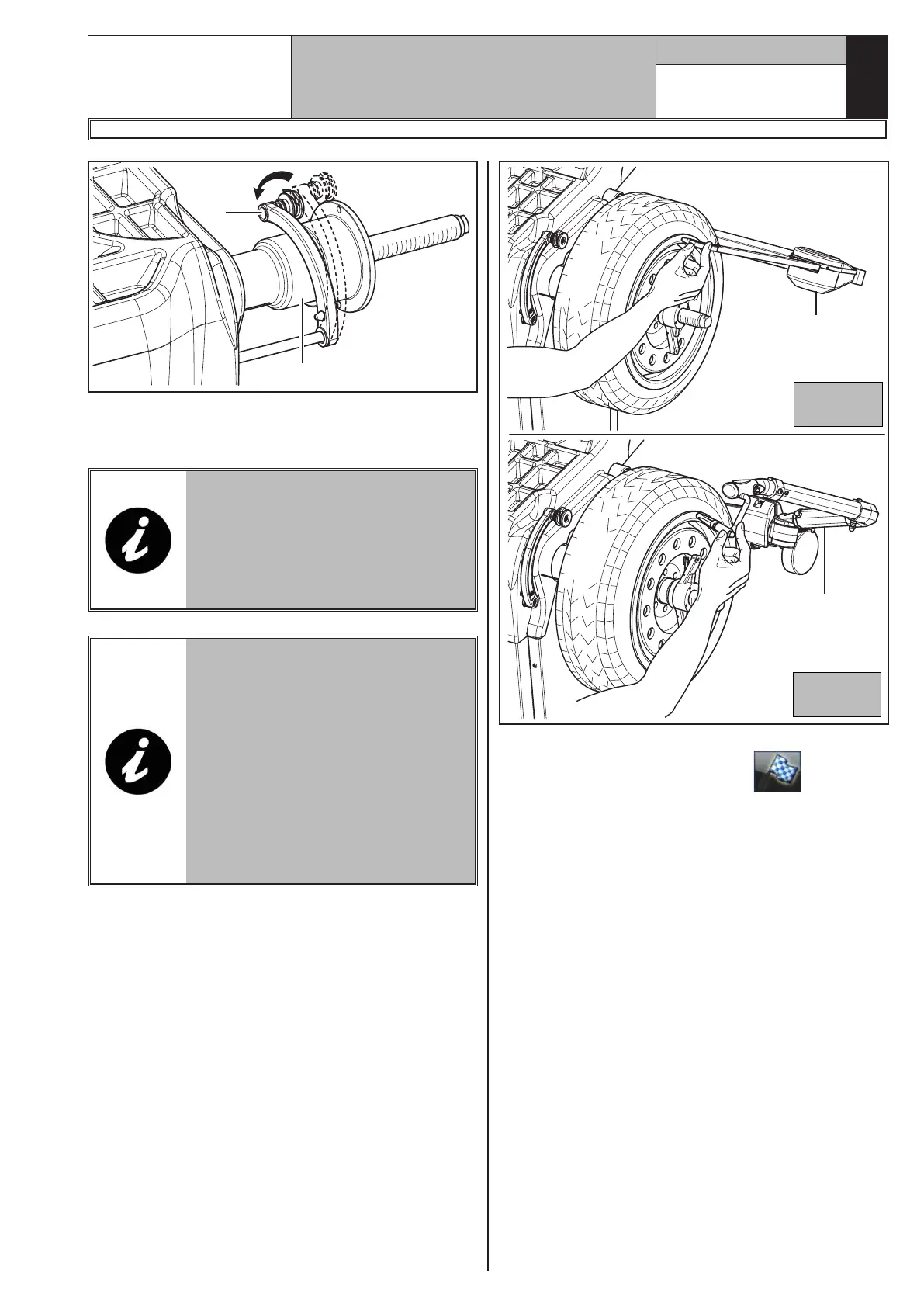

Fig. 26
- bring into contact the weights fitting gripper with the
inner part of the rim (2 contact points) (see Fig. 25)
to select “ALU-S” program.
REPEATEDLY BRINGING THE
GAUGE'S ARM (FIG. 26 REF. 1) IN
CONTACT WITH THE MANDREL
(FIG. 26 REF. 2), THE PROGRAM
WILL CYCLE FROM "ALU-S" TO
"ALU-S1" TO "ALU-S2" THEN RE-
TURNING TO THE BEGINNING.
WHENEVER THE DISTANCE-DI-
AMETER CALIPER AND/OR THE
EXTERNAL DATA GAUGE (GAR307
OR GAR305, SEE FIG. 27) (IF
ANY) IS KEPT IN POSITION FOR A
FEW SECONDS AGAINST THE RIM
(UNTIL THE MACHINE MAKES AN
APPROPRIATE SOUND NOTIFICA-
TION) , THE POSITION IS STORED
AND THE VALUES MEASURED IN
THE PRE-ARRANGED FIELDS IN
THE SELECTED WHEEL BALANC-
ING PROGRAM ARE LOADED.
Fig. 27
Width
automatic
measurement
Width
automatic
measurement
GAR305
GAR307
- After entering all the required measures, you can spin
the wheel by pressing the button and closing
the protective guard.
1297-M008-8
